Wascomat EX677 - Input and Output Connectors

30

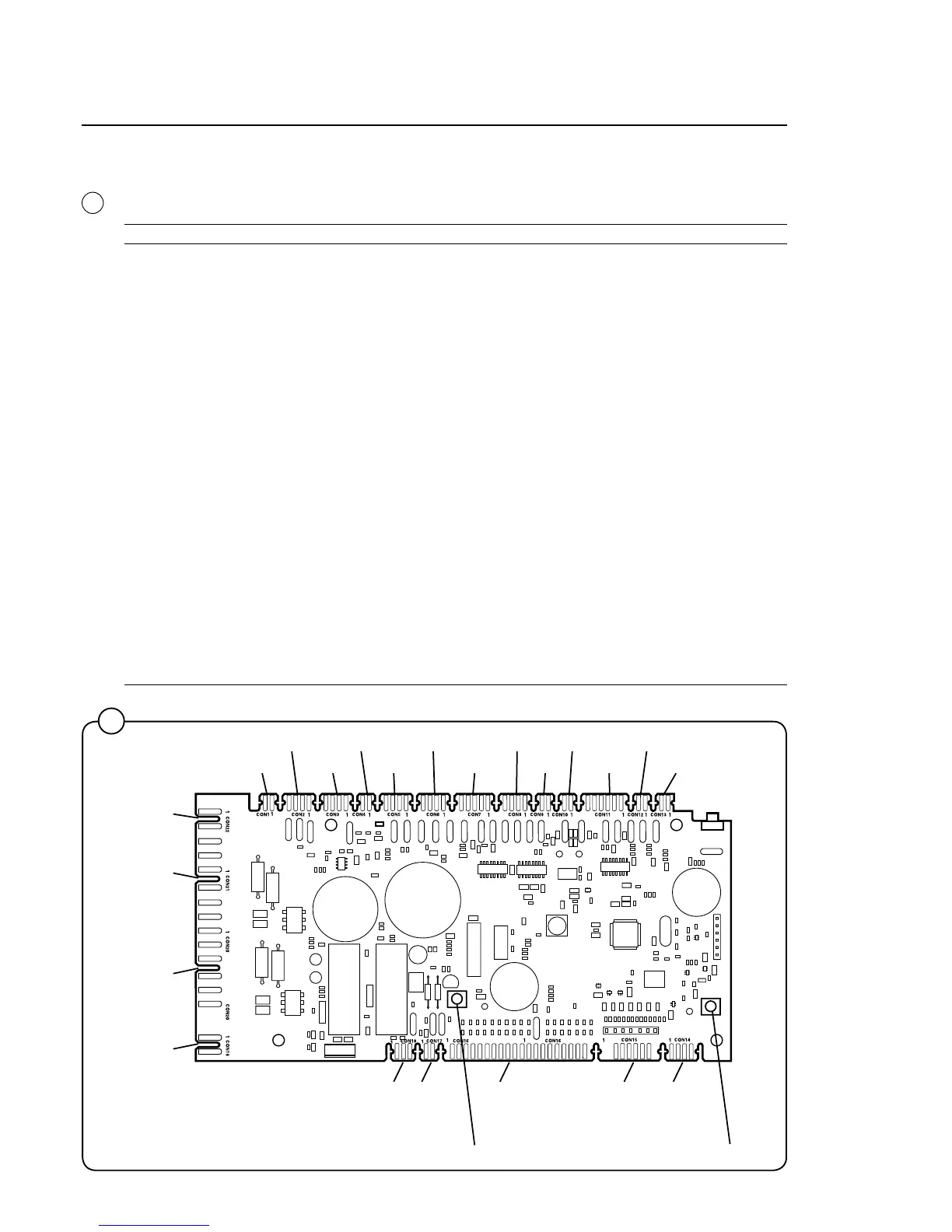

Program unit
3
3
1. CPU reset
2. DLCU reset
Con 22
Con 21
Con 20
Con 19
Con 18 Con 17 Con 16 Con 15 Con 14
2
1
Con 1
Con 2
Con 7Con 3
Con 4
Con 5
Con 6 Con 8
Con 9
Con 10
Con 11
Con 12
Con 13
Inputs and outputs
The program unit board has the following inputs and outputs:
Board connector Function
Con 1 Input from temperature sensor (Temp)
Con 2 Databus (D-bus)
Con 3 Databus (D-bus)
Con 4 Tacho
Con 5 Communication, motor control unit (M-com)
Con 6 Connection for software/service download (P-load)
Con 7 Input, Level sensors (level)
Con 8 Serial communication (RS 232)
Con 9 Input, Emergency stop (EMERG)
Con 10 Input, Free wash (key switch) (FREE W)
Con 11 Input, Coin meter (coin)
Con 12 Input, function depending on model (INPUT)
(A momentary short circuit on Con 12 on coin-op models evokes a "permission to start"
request via the CBT serial data link. A connected payment device (such as a card reader) then
has the responsibility to allow or deny the start request. This eliminates the need to press the
Compass Control knob following payment and allows the machine to start immediately if the
loading door is closed when payment is made.
Con 13 Service button in rear electrical module (SERV)
Con 14 Control knob, pulses
Con 15 Control knob, switch
Con 16 Display
Con 17 Input, Buzzer
Con 18 Counter input
Con 19 Door, out (DO)
Con 20 Door, in (DOOR IO)
Con 21 Mains voltage bus (PBUS)
Con 22 Mains voltage bus (PBUS)
