Installation
14
1833
Drain connection
Connect a 3" (75 mm) flexible drain hose to the
drain outlet of the machine.
The drain hose may be connected to a 2" to 3"
T-connection coming out of your main drain line,
which is typically four inches diameter, or the
washer may dump into a trough which slopes to
a drain, or directly into a floor drain as shown in
the illustration. Check local codes for required
installation procedure.
The drain hose must not have sharp bends and
must slope from the machine to assure proper
drainage. If the machine(s) drain into an open
trough the trough should have a slope of 1/8"-
1/4" per foot towards the main drain.
Note:
To simplify installation, Wascomat has made
available the following hose kits:
For W75, W105 and W125 Partno. 002008
For W185 Partno. 002009
These kits contain inlet hoses, drain hose, hose
clamps and washers.

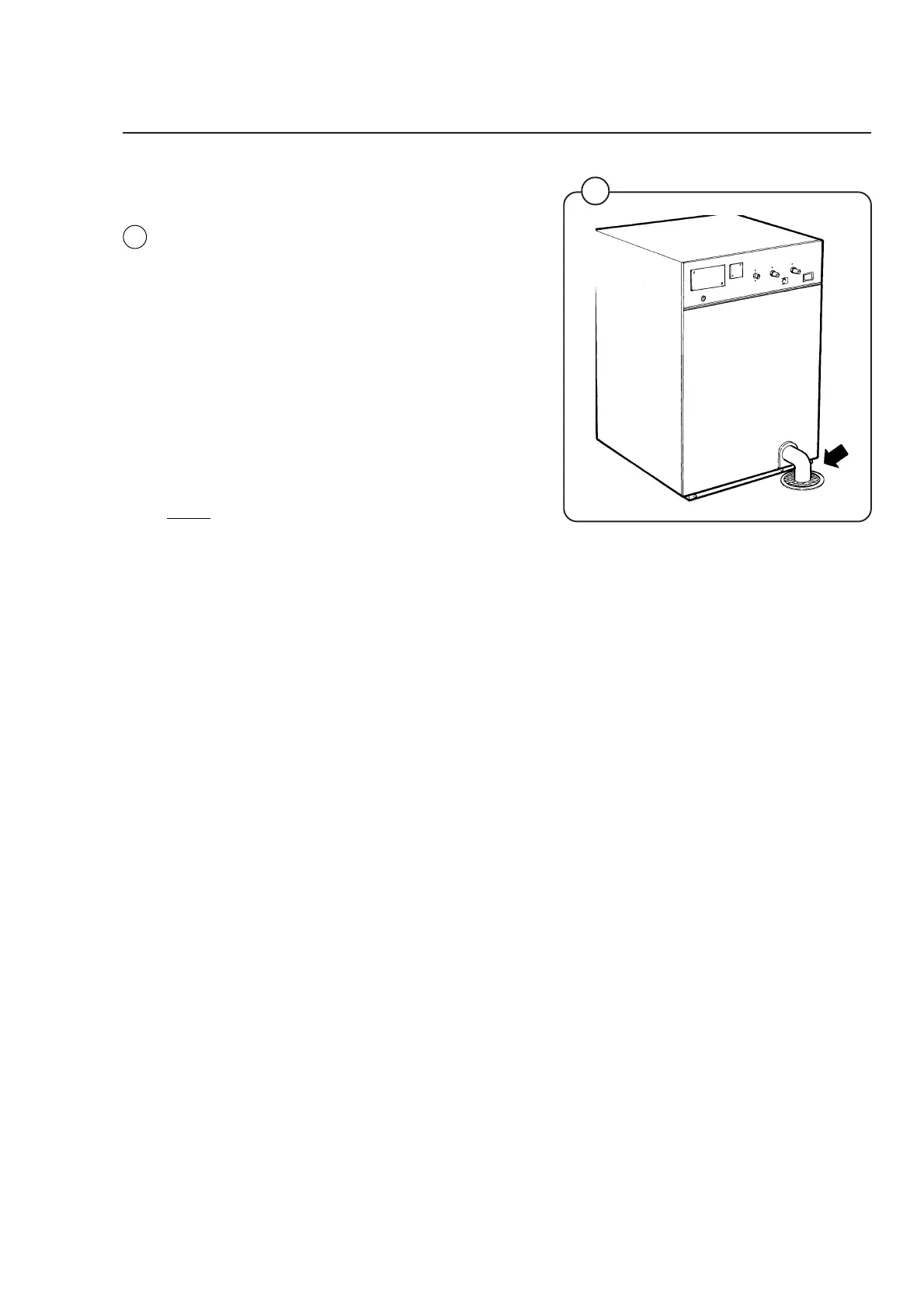

Fig.
14
