10
Installation
11

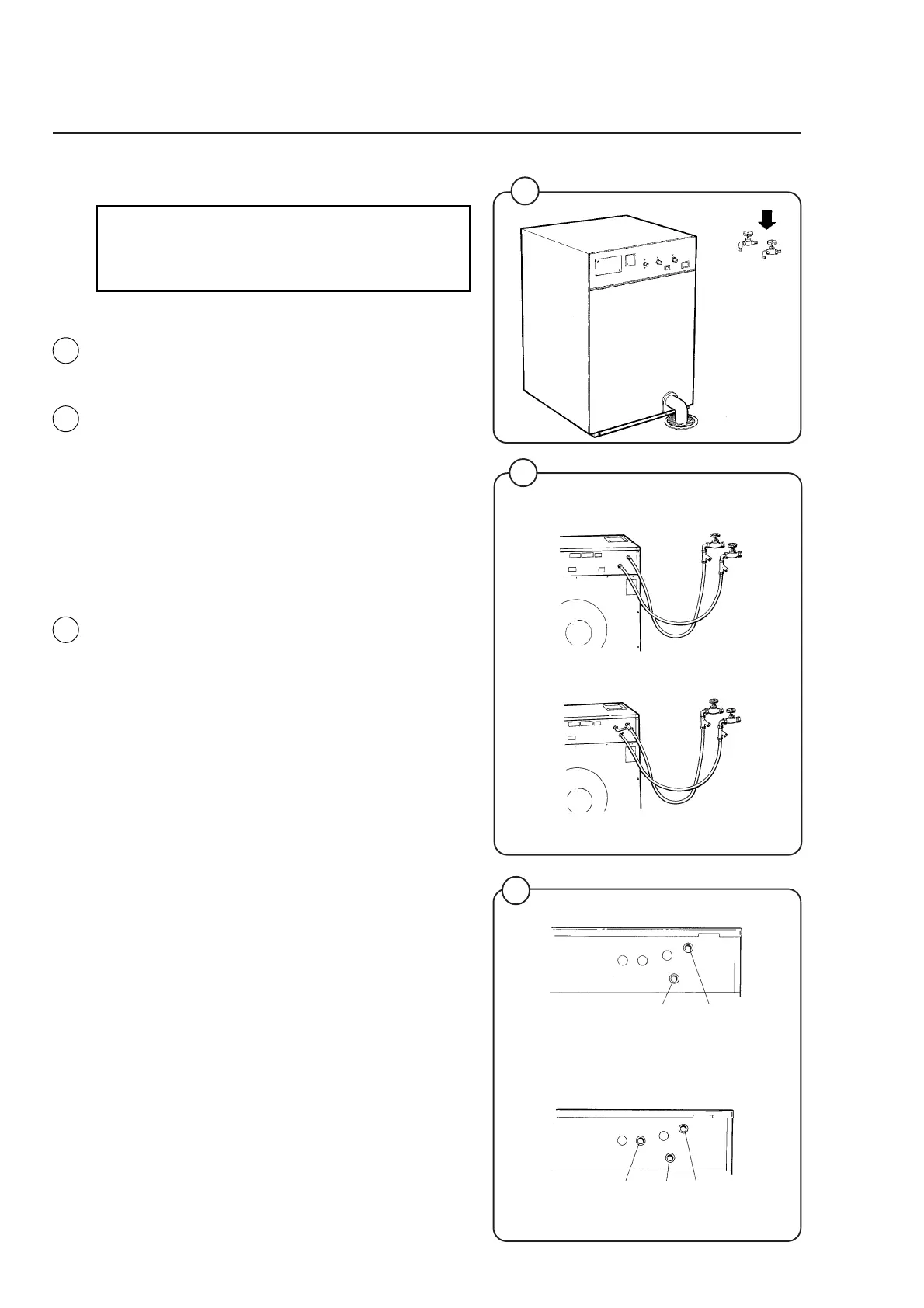

Water connections
NOTE
All plumbing must conform to national
and local plumbing codes.
Incoming water lines should not require non-
return or back-suction valves, as the machine is
already equipped with backflow prevention. Shut-
off valves must be provided on all incoming water
lines.
• Water inlets are labelled for hot and cold
water connection.
• Before connecting the water hoses flush the
water lines thoroughly and check that the filter
at the machine inlet is fitted correctly. This is
essential since dirt and grit in the water lines
may clog the inlet valve filter screens and/or
drain pilot valve, causing the machine to fill
very slowly or the drain valve not to operate
properly.
• Connect the water supply to the machine with
3/4" reinforced rubber hosing not to exceed 6
ft in length. Hang the hosing in a large loop.
Do not use rigid piping.
• Never force a hose onto the threads or you
may cause cross-threading and leaks. If this
occurs, place the threaded portion of the hose
over the valve threads and push forward
firmly, to catch the next thread. Then tighten.
12
1832
W 75, W105, W125
W 185
1870
13
hot water cold water
1846
1844
hot water cold water cold water
(to detergent supply box)
Fig.
11
Fig.
12
Fig.
13
W 75, W105, W125
W 185
