5.9 Setting
• Please install the machine close to a floor drain or open drain.
• The machine should be well positioned and make sure that there is plenty of room for the users and personnel

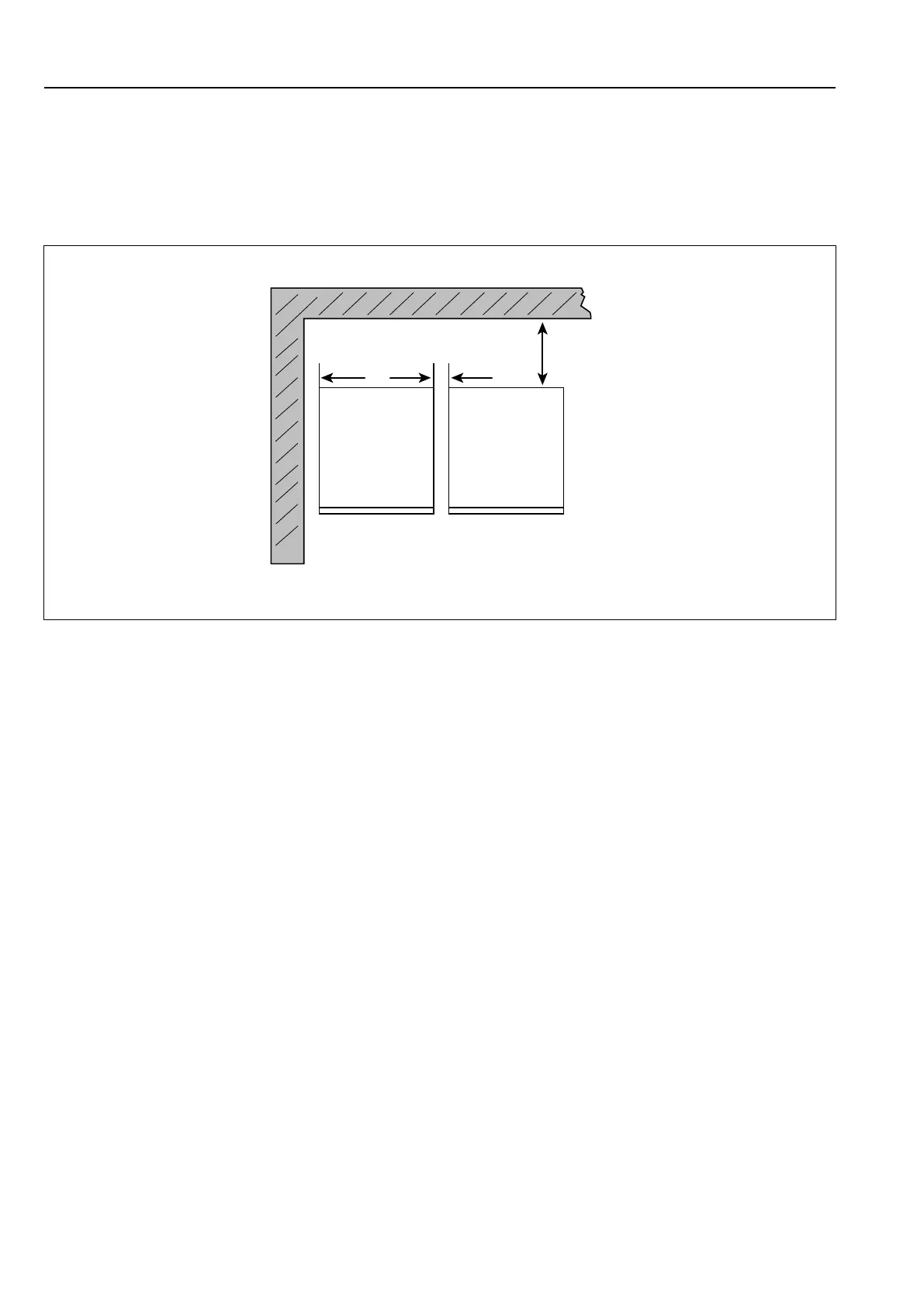

when maintenance needed. The figure shows minimum distance to a wall and/or other machines.
• At least 20 inches (500 mm) between the machine and the wall behind.
• Minimum 1 inch (25 mm) to next machine if more than one machine is installed in a row.
70 mm /
2 3/4 inch
70 mm /
2 3/4 inch
500 mm /
20 inch
fig.W01601
5.10 Floor
• The floor must be smooth and hard. Do not install the machine on carpet or other soft material.
• The floor must hold the total weight of the machine filled with water and a load.
This static weight is 416 pounds (188 kilograms).
• Adjust the levelling legs of the machine, as needed, to ensure that it is level front to back, and side to side, and so
that all four feet are in contact with the floor. After leveling the machine, use the enclosed locknut wrench tool to
tighten each leg's locking nut against the underside of the washer.
