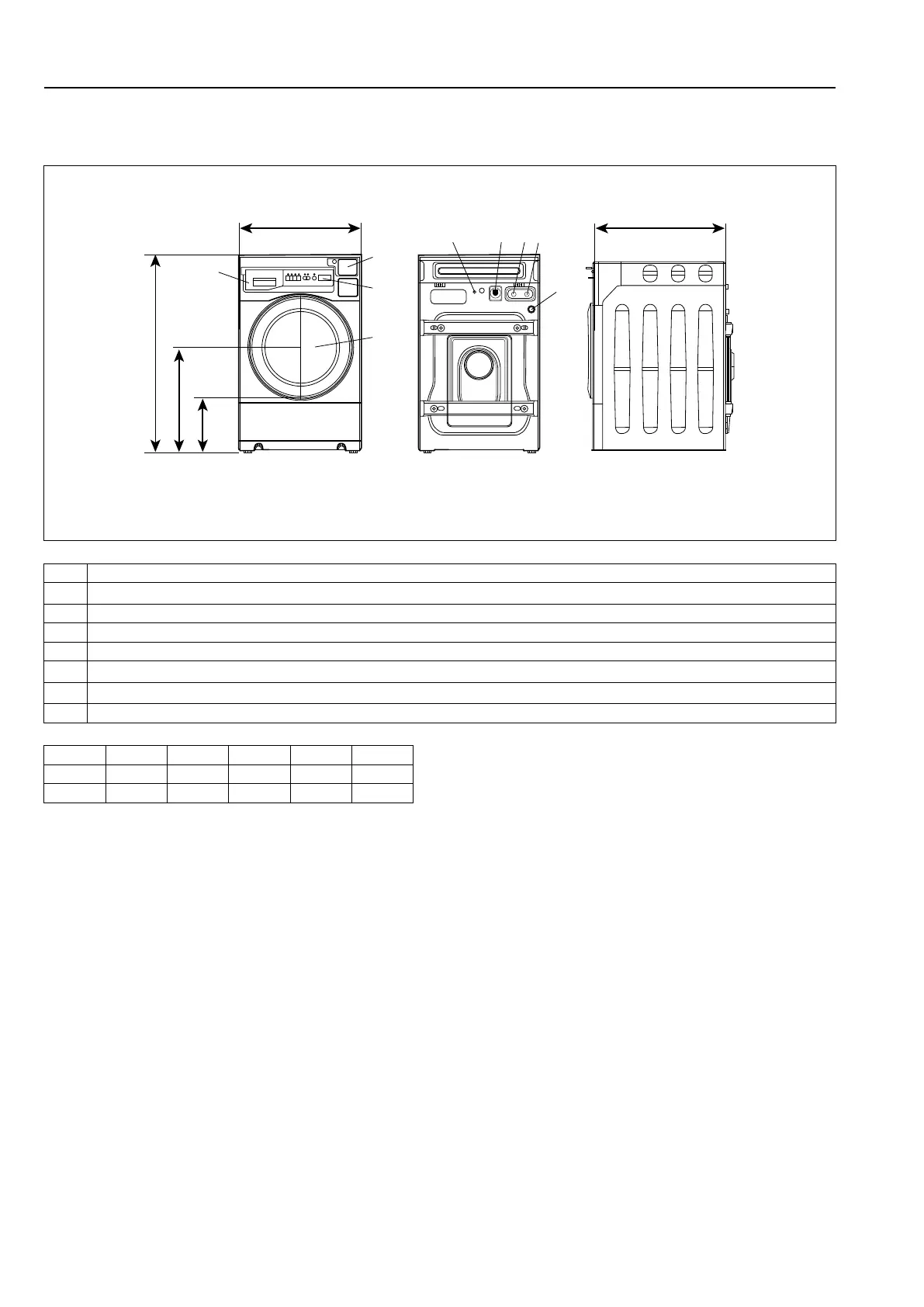

Wascomat SW-12P - Technical Data; Drawing

8
Installation manual
4 Technical Data
4.1 Drawing
A
B
D E
C
1 2
5
3 4
6
7
8
9
fig.W01595
1 Power line
2 Air vent for safety
3 Cold water
5 Drain
6 Coin meter
7
Control panel
8 Detergent container
9 Door
A B C D E
mm
1098 584 310 686 765
inch 43 1/4 23 12 3/16 27 30 1/8
