41. Coin-meter
4
Service
Manual
2
5720
1
2
3
4
OFF
ON

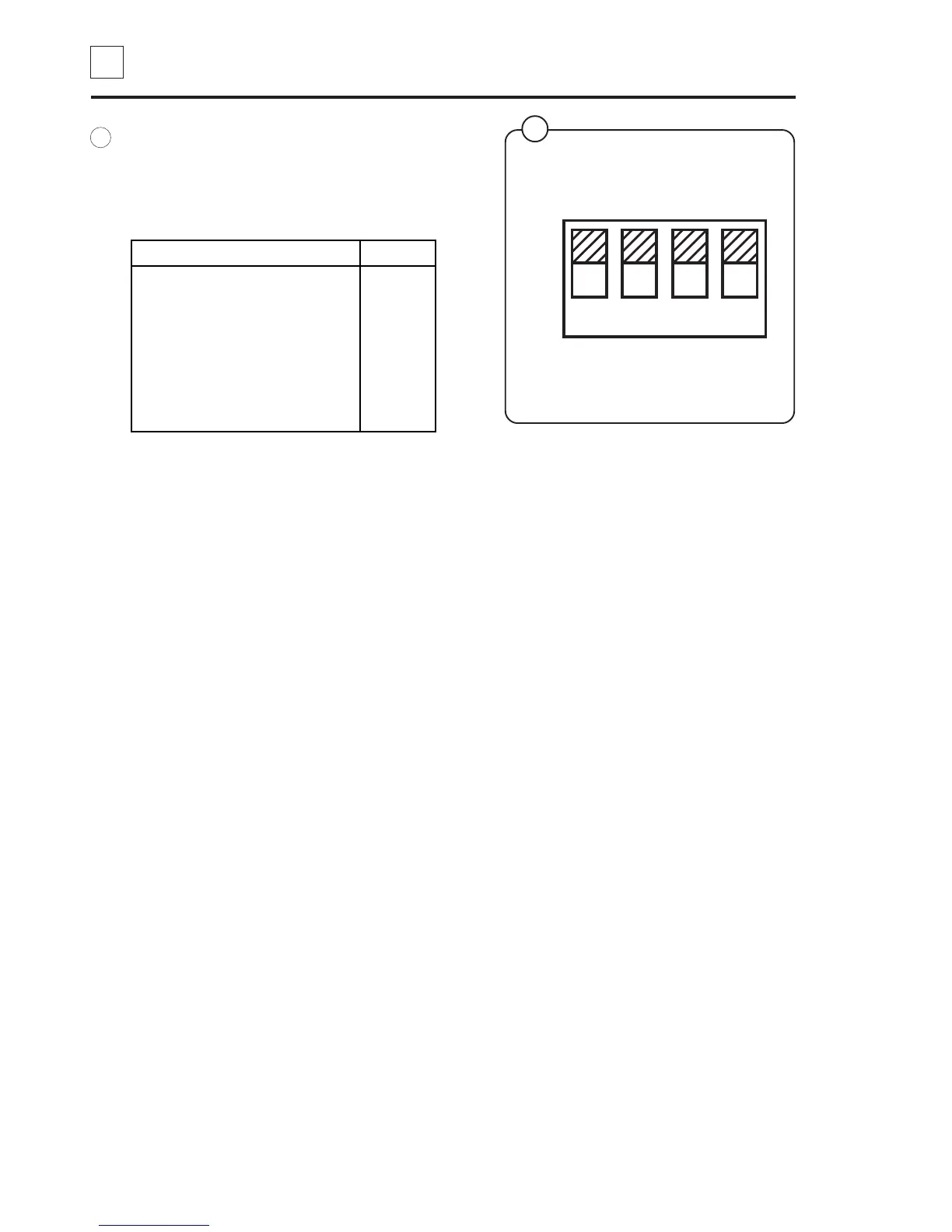

Switch S1 is used for setting the ratio between
the two coins. If the coin meter only have slot for
one coin, all switches shall be placed in OFF
position.
The following combination is available (ON = 1).
Switch 1 2 3 4 Ratio
00 0 0 1:1
10 0 0 1:2
01 0 0 1:4
11 0 0 1:5
00 10 1:10
10 10 1:20
01 1 0 2:5
Example
Ratio 1:2 Value 2 is twice the value of 1.
Ratio 1:4 Value 4 is four times the value of 1.
Ratio 2:5 Value 5 is two and half times the
value of 2.
Fig.
2
