Wascomat W655 Classic - Pulley Tool Kit

Service
Manual
3
42
42. Instruction for pulley and replacing bearings
Instruktion/Instruction
Komplett verktygssats, art. nr: 472 9913-57
Complete tool kit, part No: 472 9913-57
1
374
Pos. Art. nr./Part No Beskrivning/Description Antal/Qty
1. 432 1725-01 Avdragare/Puller 1
2. 432 1728-01 Avdragare remskiva/Pulley drag 2
3. 432 1717-01 Adaptor/Adaptor G1/2"/M10 1
4. 432 1720-01 Bricka/Washer 1
5. 438 6031-02 Mutter/Nut G 1/2" 1
6. 432 1721-01* Hylsa/Sleeve 48 x 42 L = 80 1
7. 432 1721-02** Hylsa/Sleeve 60 x 54 L = 90 1
8. 432 1721-03*** Hylsa/Sleeve 75 x 69 L = 100 1
438 8002-02 Gängtapp/Thread tap M12 1
438 8001-02 Borr/Drill 1
* For W365-385H/N/M
** For W3105H/N, 3130H/N/M, 3180N/M
*** For W3180H, 3240H, 3250N/M, 3300H, 3330N/M

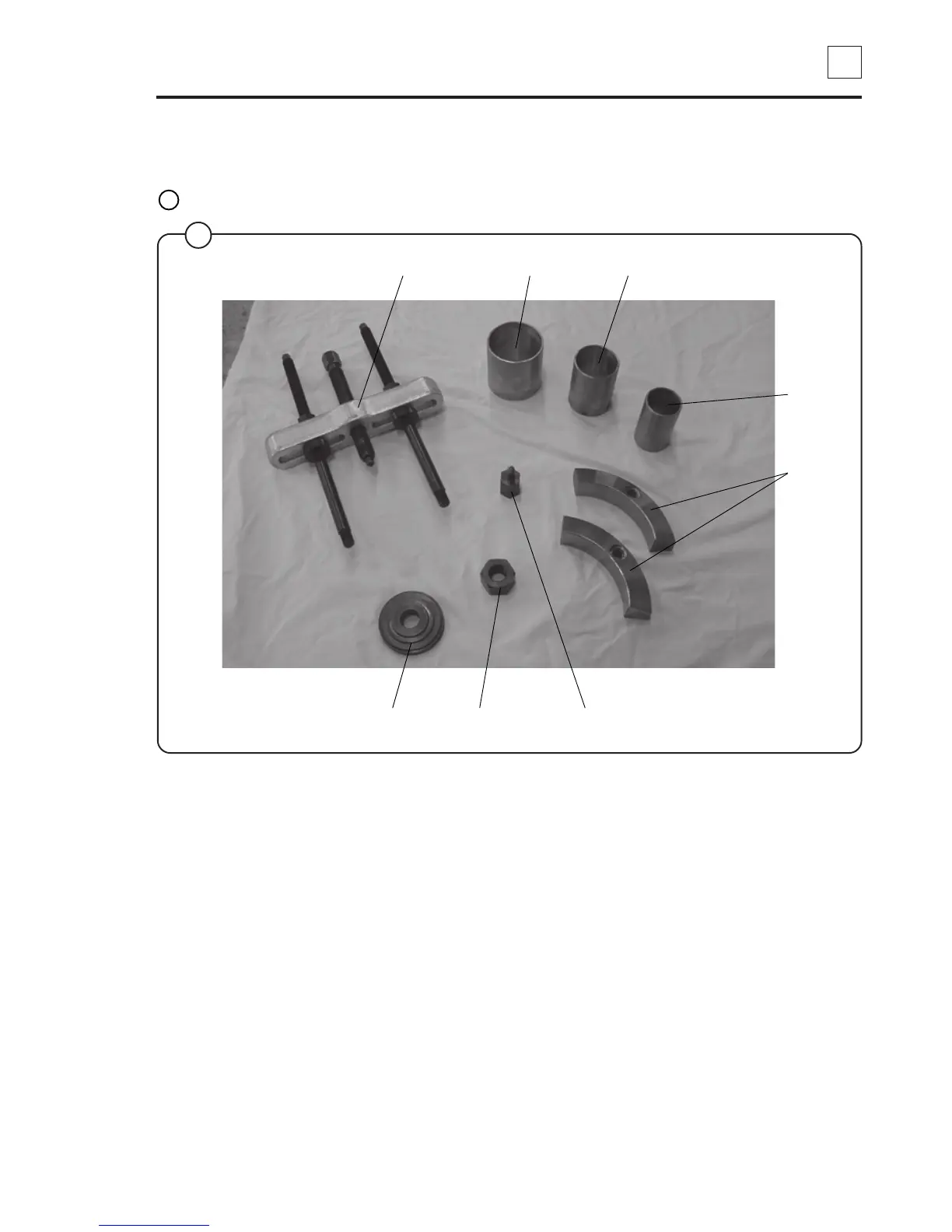

Fig.
1
1 8 7
4 5 3
6
2
