42. Instruction for pulley and replacing bearings
Instruktion/Instruction

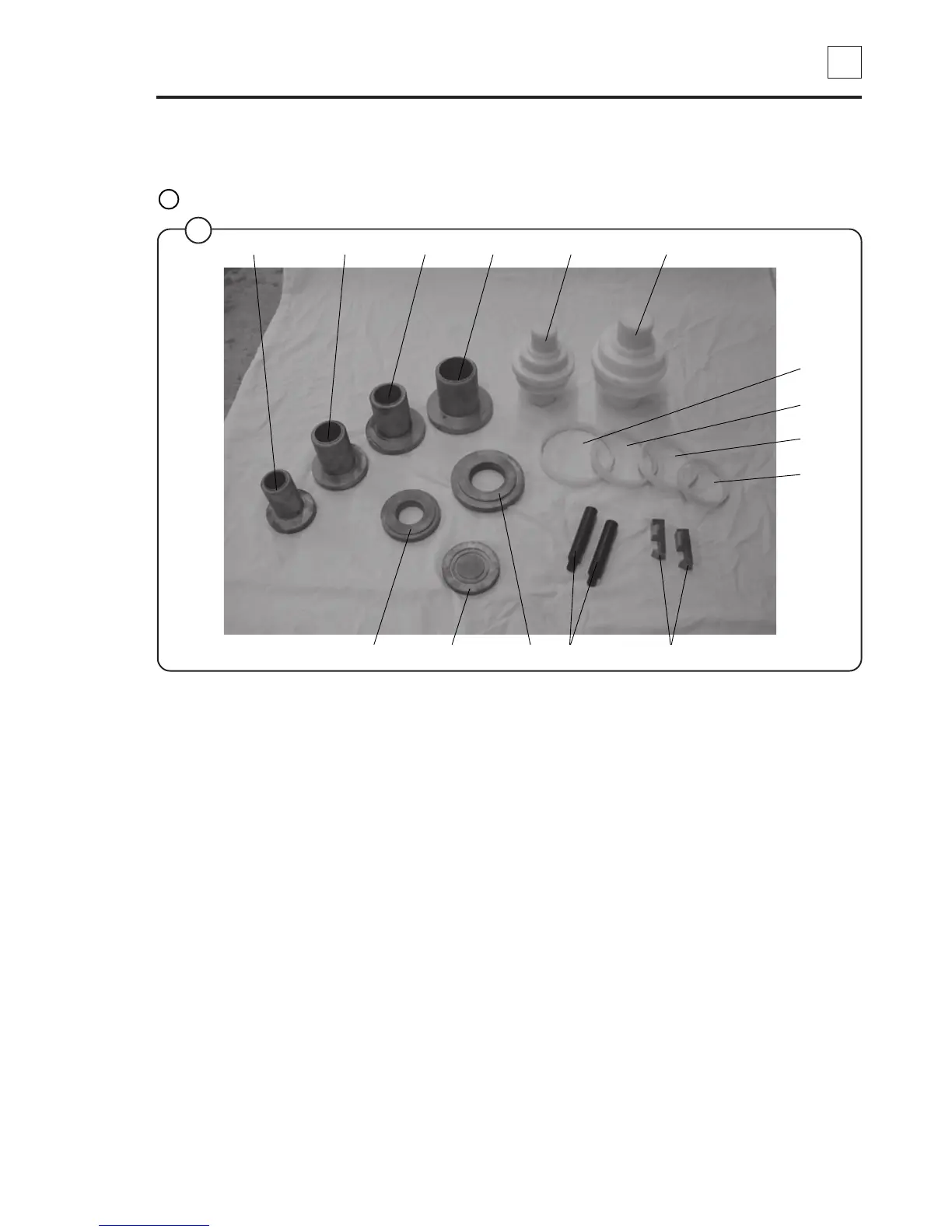

Komplett verktygssats, art. nr: 472 9913-60
Complete tool kit, part No: 472 9913-60
1
378
Fig.
1
7 8 9 10 1 2
11 13 12 14 15
6
5
4
3
Pos. Art. nr./Part No Beskrivning/Description Antal/Qty
1. 432 1723-01 Dorn för tätningar/Drift for gaskets 1
(W365-3105H/N/M, W3130N/M, EX618, 625, E/W630)
2. 432 1723-02 Dorn för tätningar/Drift for gaskets 1
(W3130-3300H, W3180-3330N/M, EX630-670, E/W640-675)
3. 432 1716-01 Distans/Spacer (W365-385H/N/M, EX618, E/W620) 1
4. 432 1716-02 Distans/Spacer (W3105H/N/M, W3130N/M, EX625, E/W630) 1
5. 432 1716-03 Distans/Spacer (W3130H, W3180N/M, EX630, E/W640) 1
6. 432 1716-04 Distans/Spacer (W3180-3300H, W3250-3330N/M,
EX640-670, E/W655-675) 1
7. 432 1719-01 Dorn, stora lagret/Drift, large bearing (W365-385H/N/M,
EX618, E/W620) 1
8. 432 1719-02 Dorn, stora lagret/Drift, large bearing 1
(W3105H/N/M, W3130N/M, EX625, E/W630)
9. 432 1719-03 Dorn, stora lagret/Drift, large bearing 1
(W3130H, W3180N/M, EX630, E/W640)
10. 432 1719-04 Dorn, stora lagret/Drift, large bearing
(W3240-3300H, W3250-3330N/M, EX655-670, E/W655-675) 1
11. 432 1730-01 Pressdorn/Presser (W365-3105H/N/M, EX618-625, E/W620) 1
12. 432 1730-02 Pressdorn/Presser (W3130-3300H, W3180-3330N/M,
EX630-670, E/W640-675) 1
13. 432 1722-01 Bricka/Washer 1
14. 432 1727-01 Förlängare/Extender 2
15. 432 1729-01 Avdragsklackar, stora lagret/Puller block, large bearing 2
