Components
WARNING
All service/repair work must be carried out by qualified personnel only.

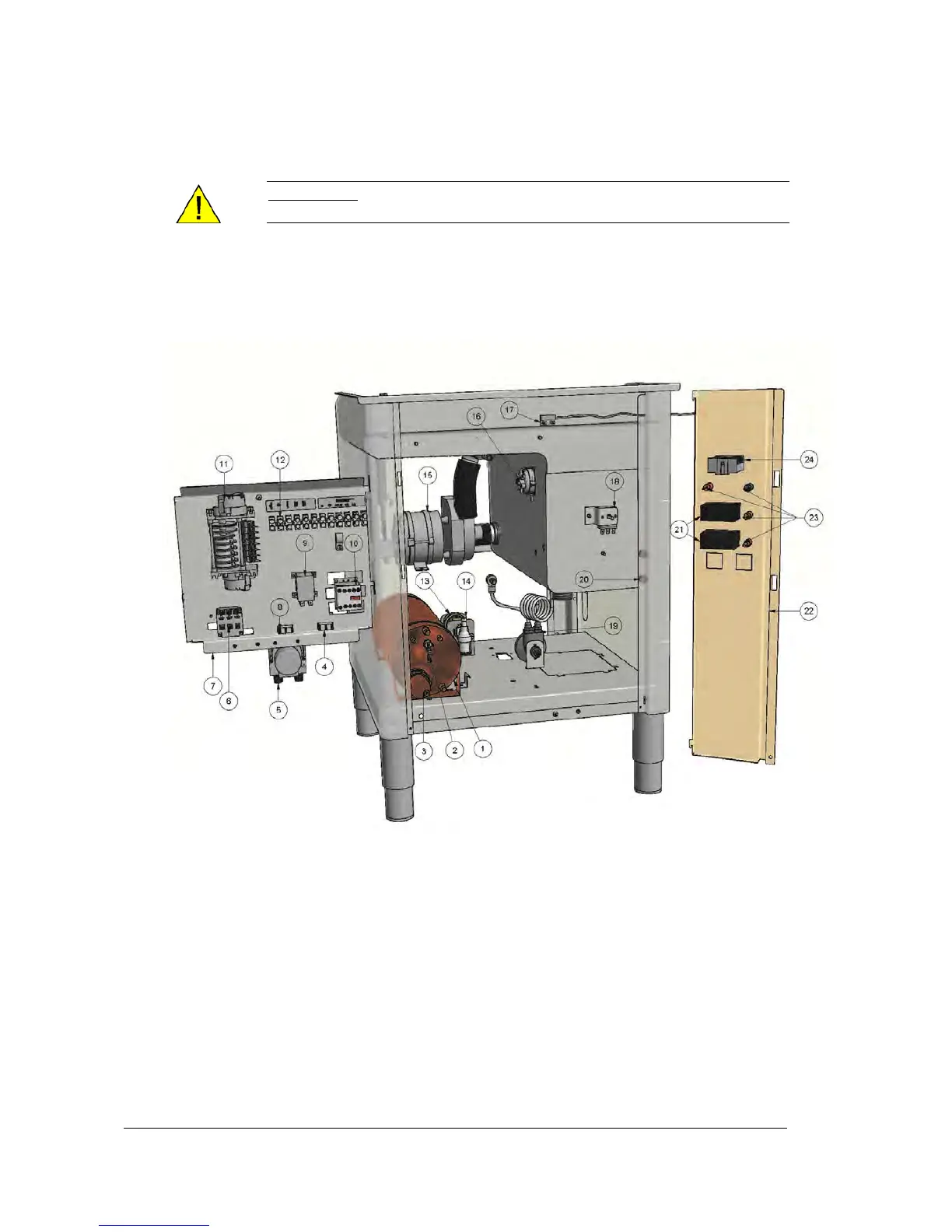

Location and Access
1. Rinse Tank
2. Rinse Safety Thermostat
3. Rinse Heating Element
4. Test Switch
5. Detergent Pump
6. Rinse Thermostat
7. Wiring Tray
8. Detergent Prime Switch
9. Door Switch Relay
10. Heating Contactor
11. Timer
12. Power/Chemical Terminal
13. Dual Check Valve
14. Fill/Rinse Solenoid Valve
15. Wash Pump
16. Pressure Switch
17. Door Switch
18. Wash Thermostat
19. Rinse Aid Injector
20. Wash Heating Element
21. Temperature Gauges
22. Control Panel Assembly
23. Indicator Lights
24. Power/Selector Switch
