Wash Pump
Part Number
600 30299
Function
Pumps water from the wash tank to the wash arms providing a recirculating wash
cycle.
Description
Electric Pump ZF 320V SX
Power: HP 0.93 Kw 0.68
Voltage: 230 V 50Hz
Amperes: 3.0 A
Capacitor: 12.5 uF
Speed 2800 rpm
Protection: IP 20
Hm Min: 1.0 m
Hm Max: 12.3 m

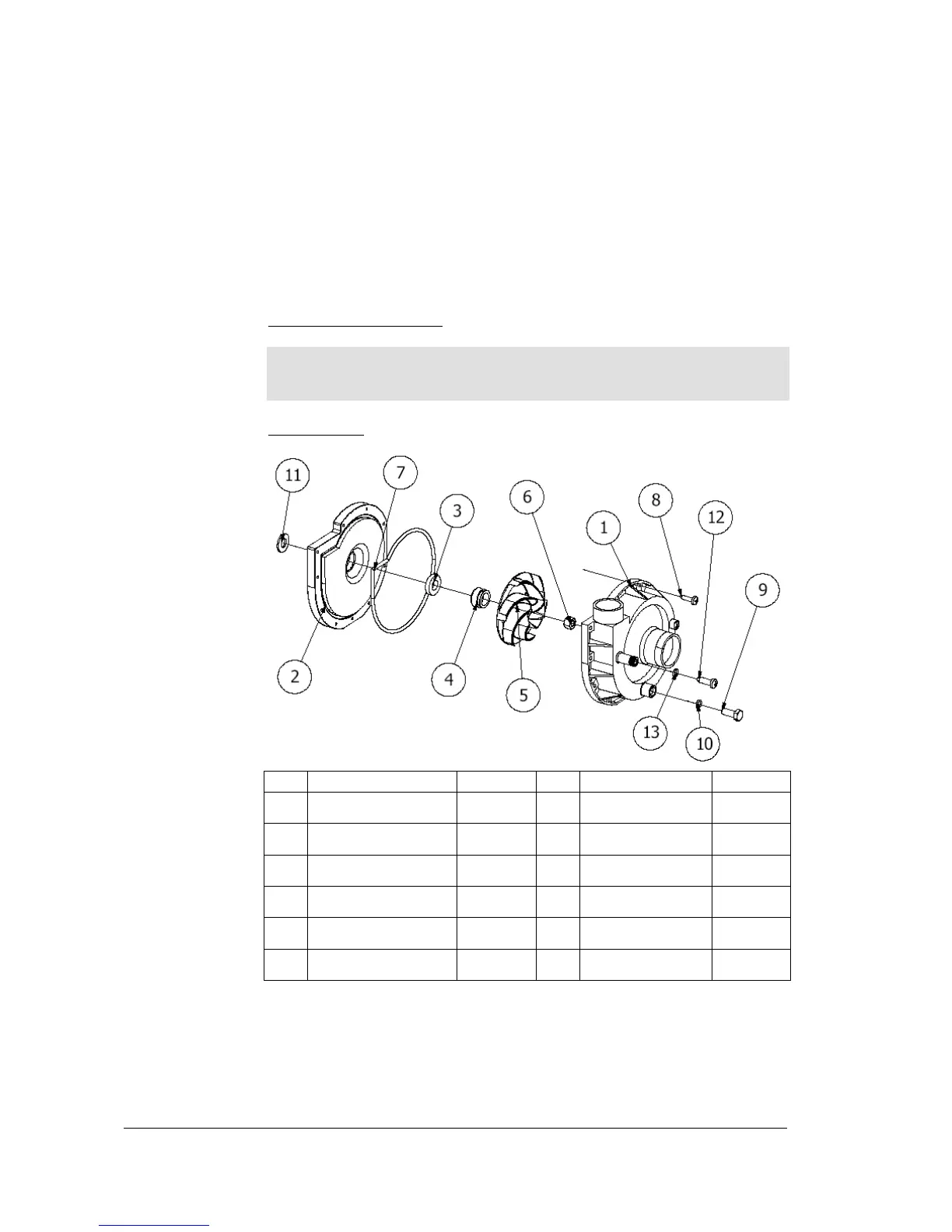

Diagram
Hydraulic parts
ITEM DESCRIPTION PART # ITEM DESCRIPTION PART #
1 Volute 600 41116 7 O-ring 600 41113
2 Pump flange 600 41117 8 Screw -
3 Fixed seal 600 41110 9 Plug screw -
4 Rotating seal 600 41111 10 O-ring plug -
5 Impeller 600 41115 12
Screw hose
connector
-
6 Nut 600 41112 13
O-ring hose
connector
-
Replacement
Drain the wash tank and switch off the power.
Disconnect the wires from the pump connectors and the pump capacitor. .
Release the hose clamps on the inlet and outlet pump hoses and remove the pump.
Replace in reverse order.
