Waterax MARK-3 - Air Filter and Fuel Line Service

WATERAX MARK-3 Owner's Manual
03/2016 – Page 22 of 52
Air Filter

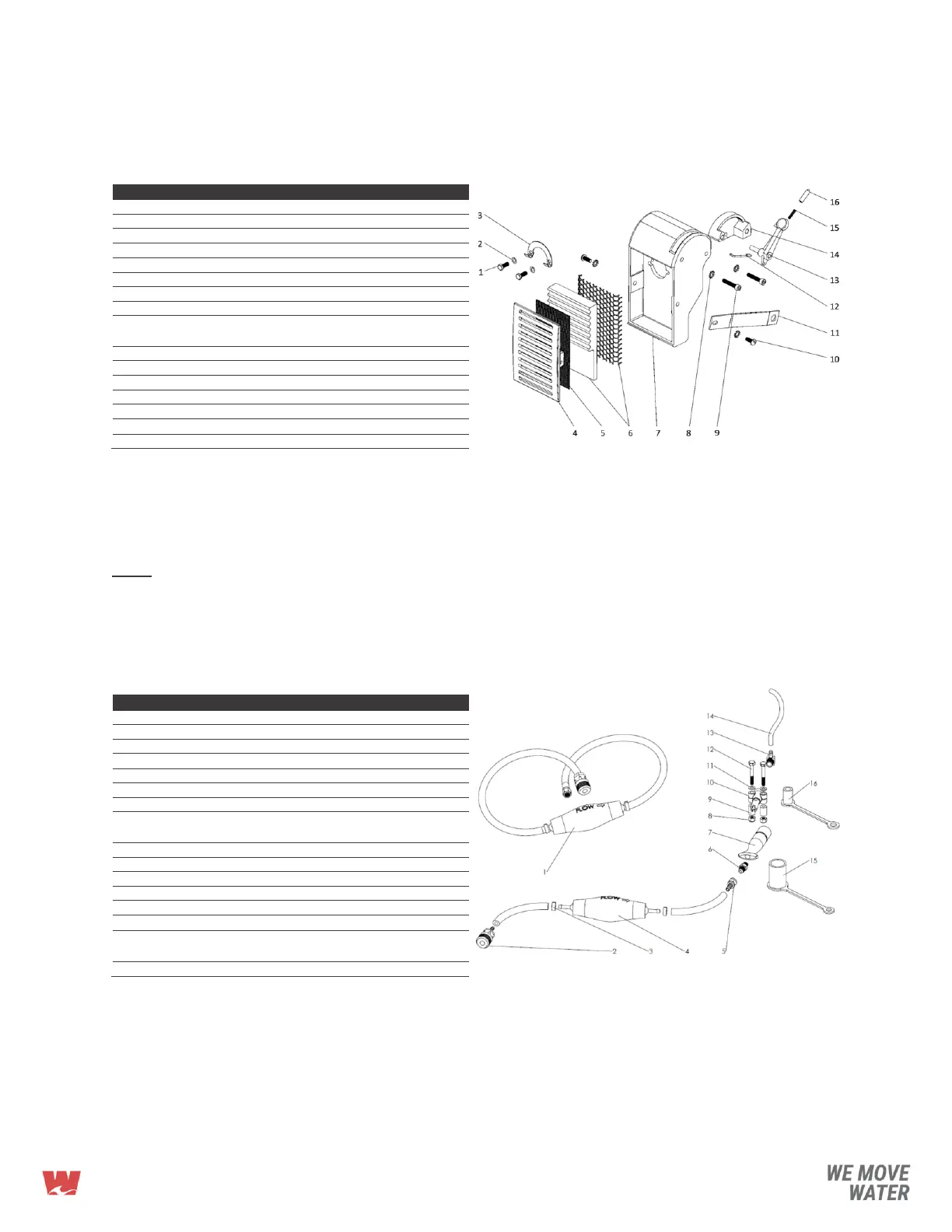

Parts breakdown
ID
ITEM NO
DESCRIPTION
QTY
1
600165
R-793 MACHINE SCREW MODIFIED, S.S.
2
2
800489
R-791 LOCKWASHER #10 SPLIT ZINC
2
3
600177
R-1044 LOCK PLATE FOR MARK-3
1
4
600169
R-794 AIR FILTER COVER FOR MARK-3
1
5
701286**
EMBER SEPARATOR FOR MARK-3
1
6
700810
R-955 AIR FILTER
1
7
600519
R-790 CARBURETOR SHROUD, WITH DECAL
1
8
800352*
12-79 LOCKWASHER #10 EXTERNAL TOOTH
4
9
800441*
B-4036-12 SCREW #10-32X1 HEX SOCKET
BLACK OXYDE
2
10
800487
R-774 SCREW #10-32X1/2 FLAT/SQ ROUND
2
11
600173
R-799 BRACKET FOR MARK-3
1
12
700808*
R-1102 LINK FOR THROTTLE
1
13
600159*
R-1107 THROTTLE LEVER SUB-ASSEMBLY
1
14
700033*
B-4024 QUADRANT FOR THROTTLE LEVER
1
15
800316*
A-4028 SPRING SS
1
16
700011*
A-4027 INDEX PIN, BRASS
1
* Included in R-792 Throttle Assy (600529)
** Ember separator screen standard on GSA/DLA model only
Servicing
Regularly clean and/or replace the air filter. The air filter works best when oiled. A tackifier spray can be
used on the air filter to help the oil adhere to the air filter.
Note: Apply multi-purpose grease on the quadrant teeth when installing the throttle lever sub-assembly
into the quadrant to facilitate installation and operation.
Fuel Line
Parts breakdown (Mercury fuel connection)
ID
ITEM NO
DESCRIPTION
QTY
1
600390*
12-401B-NS FUEL LINE, STANDARD STYLE
1
2
800864
FA-451 FEM QUICK-CONNECT
1
3
800440
12-406N SINGLE EAR OETIKER CLAMP
2
4
600389
12-405-1 FUEL LINE PRIMING BULB
1
5
700017
12-65 COUPLING SWIVEL
1
6
800814**
R-732 CONNECTOR 1/4"TUBE X 1/8"NPT
1
7
800802**
R-712 HANDLE QUICK CONNECT, FEM
1
8
800419**
C-6650-14 NUT 1/4-20 HEX NYLON LOCK
ZINC
2
9
600081**
C-5200-7R SPACER-RUBBER
2
10
800805**
R-706 BODY QUICK-CONNECT M
1
11
800474**
D-5269-7 WASHER 1/4 FLAT SS
2
12
800422**
C-5200-8 SCREW 1/4-20X1-3/4 HEX CAP SS
2
13
800804**
R-709 ELBOW 90, 3/8"TUBE X 1/4"NPT M
1
14
600172**
R-798 PLASTIC TUBING (FUEL LINE)
1
15
700100
A-7487 DUST CAP - FEM CONNECTOR,
NITRILE
1
16
700080
A-7486 DUST CAP - M. CONNECTOR, NITRILE
1
* Fuel line compatible with FA-552Q fuel air transport tank (600429)
** Included in R-1114 Quick-connect fuel line assy (600155)
