Waterax MARK-3 - Muffler and Frame Service

WATERAX MARK-3 Owner's Manual
03/2016 – Page 28 of 52

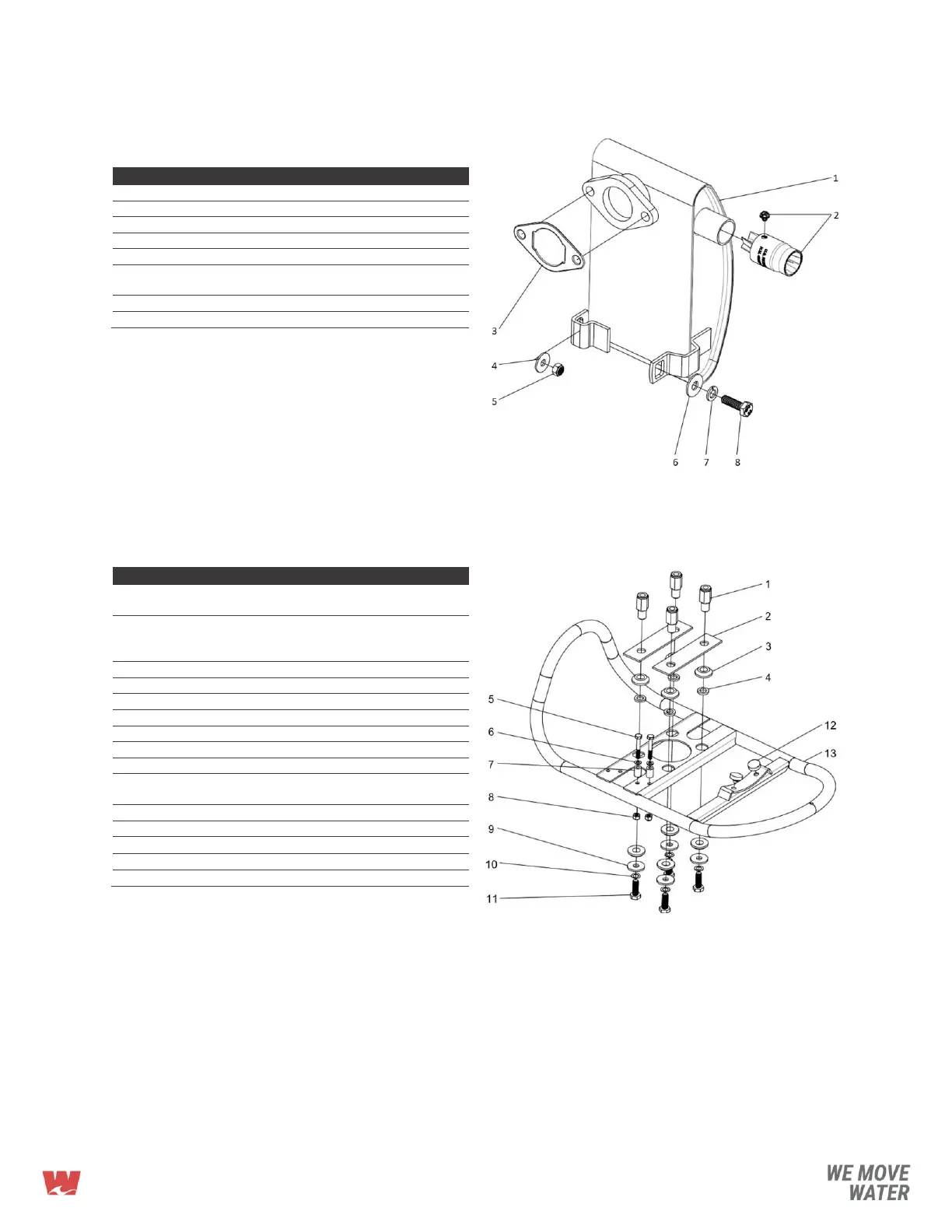

Muffler
Parts breakdown
ID
ITEM NO
DESCRIPTION
QTY
1
600166
R-229 MUFFLER FOR MARK-3
1
2
700811*
PART-205 SPARK ARRESTOR, MARK-3
1
3
800067
R-237 GASKET MUFFLER
1
4
800543
R-151 WASHER 1/4 FLAT ZINC
1
5
800544
R-150 NUT M6X1.0 HEX FUJI LOCK ZINC
1
6
700071
C-5370-11 WASHER 7/8"OD X 11/32"ID X
1/16"TH, S.S.
1
7
800548
R-119 LOCKWASHER M8 SPLIT ZINC
1
8
800416
RA-108 SCREW M8X1.25X25 HEX CAP ZINC
1
* USFS approved spark arrestor
Frame
Parts breakdown
ID
ITEM NO
DESCRIPTION
QTY
-
600095
C-5200N MOUNTING FRAME WITH
HARDWARE
-
-
600082
C-5200N-15 HARWARE KIT FOR C-5200N
FRAME (INCL. ALL PARTS EXCEPT C-5201
FRAME)
-
1
600037
A-6149P MARK-3 MOUNTING LEG, PLATED
4
2
600108
A-4005 MOUNTING PAD, PLATED
2
3
700021
A-6179 RING, RUBBER
8
4
700652
C-5200-5 WASHER,13/16"ODX1/2"IDX1/8"THK
4
5
800422
C-5200-8 SCREW 1/4-20X1-3/4 HEX CAP SS
2
6
800474
D-5269-7 WASHER 1/4 FLAT SS
2
7
600081
C-5200-7R SPACER-RUBBER
2
8
800419
C-6650-14 NUT 1/4-20 HEX NYLON LOCK
ZINC
2
9
800435
C-5200-6 WASHER 3/8 FENDER ZINC
4
10
800536
R-111 LOCKWASHER M10 SPLIT ZINC
4
11
800424
C-5200-12 SCREW M10X1.5X30 ZINC
4
12
700769
C-4506-3 BUMPER, RUBBER
2
13
700072
C-5201 MK-3 FRAME, STEEL PAINTED
1
