WATERAX MARK-3 Owner's Manual
03/2016 – Page 35 of 52

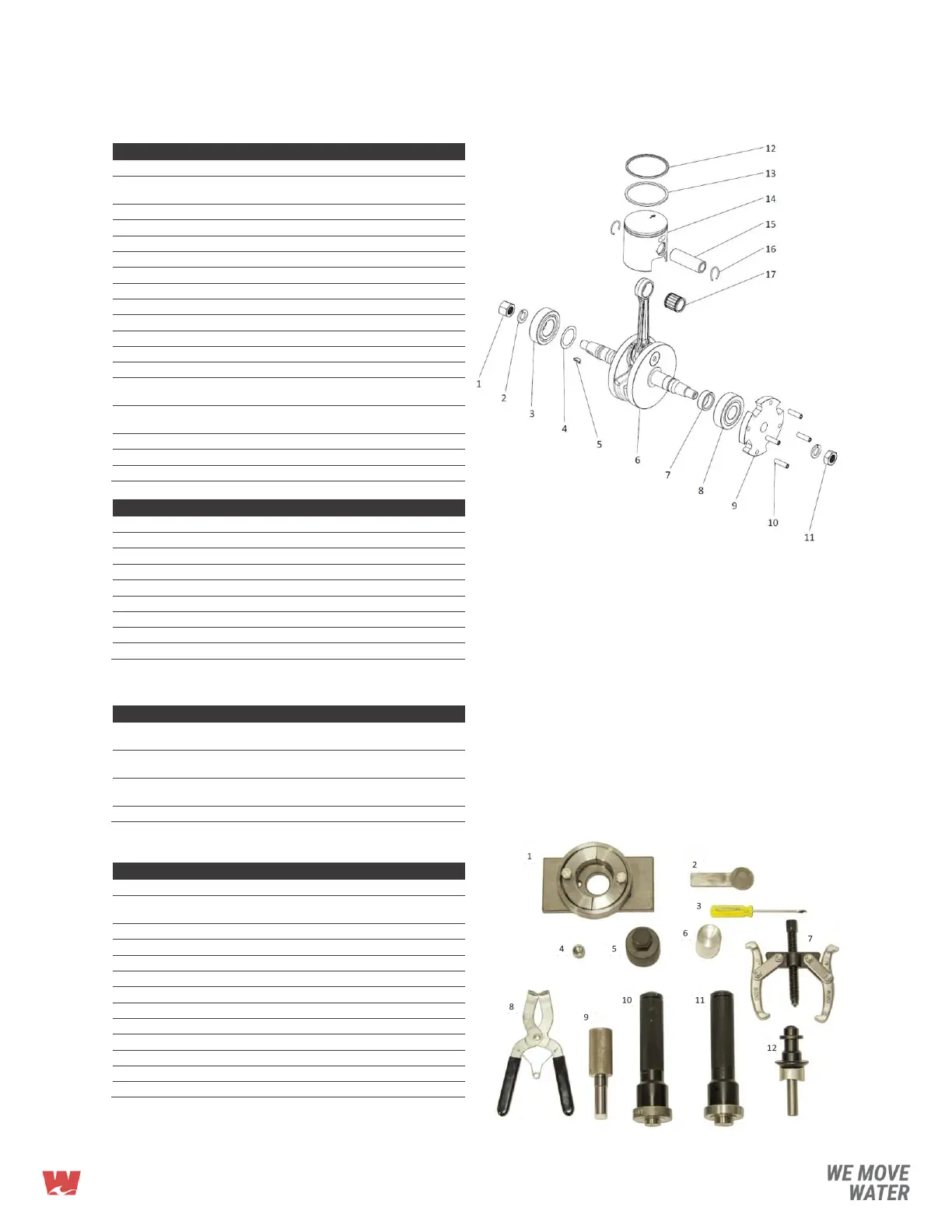

Crankshaft Assembly, Pistons and Shims
ID
ITEM NO
DESCRIPTION
QTY
1
800018
R-303 HEX NUT M12 X 1.0 X 12 MM THK
1
2
800064
R-301 WAVE LOCKWASHER, 12 MM
BLACK
2
3
800502
R-343 BALL BEARING 0.983"ID
1
4
--
SHIM(S) (FLYWHEEL SIDE)
-
5
800019
R-305 KEY, 3 MM X 5 MM
1
6
801196
R-341N CRANKSHAFT/CONN. ROD ASSY
1
7
800029
R-334 CRANKSHAFT STEEL SPACER
1
8
800507
R-333 BALL BEARING 0.788"ID
1
9
800011
R-315 COLLAR COUPLING
1
10
800362
12-18 COILED SPRING PIN 1/4" X 7/8"
4
11
800035
R-302 HEX NUT M12 X 1.0 X 8 MM THK
1
12
800032
R-331-1 L-TYPE PISTON RING
1
13
800017
R-331 PISTON RING 0.078"
1
14
801270
R-332R PISTON WITH RINGS STANDARD
SIZE RED GRADE
1
14
800030
R-332G PISTON WITH RINGS STANDARD
SIZE GREEN GRADE
1
15
800028
R-328 GUDGEON PIN
1
16
800009
R-329 CIRCLIP
2
17
800030
R-324 NEEDLE BEARING
1
ID
ITEM NO
DESCRIPTION
QTY
-
800025
R-344 SHIM .004" (FLYWHEEL SIDE)
As req’d
-
800024
R-345 SHIM .012" (FLYWHEEL SIDE)
As req’d
-
800023
R-346 SHIM .020" (FLYWHEEL SIDE)
As req’d
-
800049
R-347 SHIM .039" (FLYWHEEL SIDE)
As req’d
-
800014*
R-307 SHIM .008" (COUPLING SIDE)
As req’d
-
800007*
R-308 SHIM .012" (COUPLING SIDE)
As req’d
-
800015*
R-309 SHIM .016" (COUPLING SIDE)
As req’d
-
800021*
R-310 SHIM .020" (COUPLING SIDE)
As req’d
-
800012*
R-312 SHIM .040" (COUPLING SIDE)
As req’d
* For older engines (20 mm ID)
Oversized pistons
ID
ITEM NO
DESCRIPTION
QTY
-
801272
R-332-OR PISTON WITH RINGS
OVERSIZE RED GRADE
-
-
801271
R-332-OG PISTON WITH RINGS
OVERSIZE GREEN GRADE
-
-
800022
R-331-O-1 OVERSIZED L-TYPE PISTON
RING
-
-
800031
R-331-O OVERSIZED PISTON RING 0.078"
-
Engine Tool Kit
ID
ITEM NO
DESCRIPTION
QTY
-
250286
R-952N TOOL KIT FOR MARK-3 ENGINE
-
1
600157
R-938 PULLER, CRANKSHAFT BEARING
1-PIECE
1
2
600164
R-953 CRANKSHAFT JACK
1
3
701352
CIRCLIP REMOVAL TOOL FOR 185CC
1
4
800080
R-928 PROTECTOR CAP, SHAFT 12MM
1
5
700723
R-927 PULLER - MAGNETO (M38 X 1.5)
1
6
600161
R-933 OIL SEAL - PRESSING TOOL
1
7
700707
R-932 PULLER, COLLAR COUPLING
1
8
701343
PISTON RING INSTALLER
1
9
701159
PISTON LOCKING TOOL FOR 185CC
1
10
701349
SEAL INSTALLER 20MM FOR 185CC
1
11
701350
SEAL INSTALLER 25MM FOR 185CC
1
12
701351
CIRCLIP INSTALLER TOOL FOR 185CC
1
