Waterax MARK-3 - Crankcase Overhaul

WATERAX MARK-3 Owner's Manual
03/2016 – Page 34 of 52

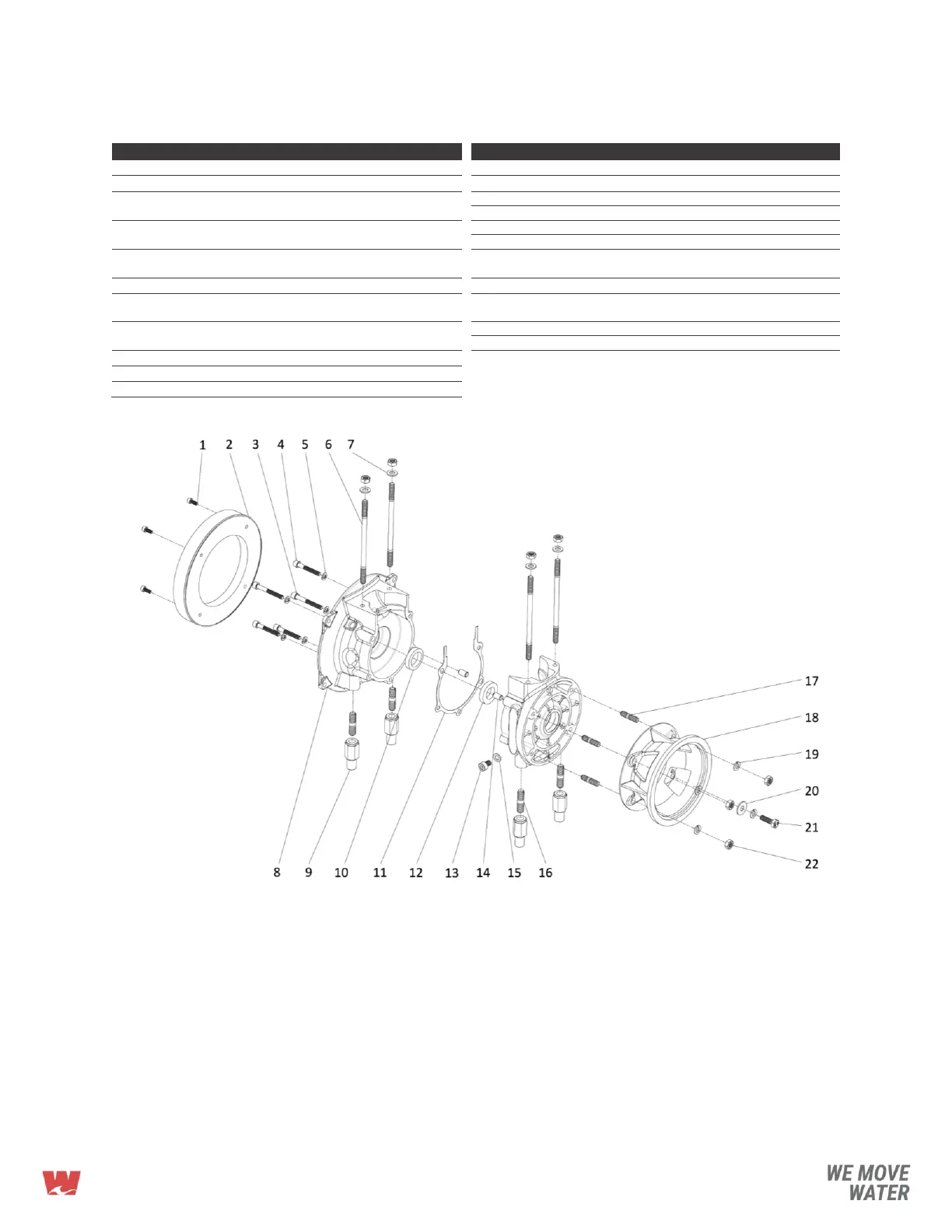

Crankcase
ID
ITEM NO
DESCRIPTION
QTY
ID
ITEM NO
DESCRIPTION
QTY
1
800058
R-146 ALLEN SCREW M5X12
4
12
800547
R-123 OIL SEAL 0.788"
1
2
800053
R-144 SHIELD – DUST (LABYRINTH RING)
1
13
800509
FAST-51 SCREW M8X1.25X12 HEX SOCKET
1
3
800556
R-105 SCREW M6X1.0X50 HEX SOCKET CAP
ZINC DIN912
2
14
800036
R-103 DOWEL TUBE 8.4 OD X 7 ID X 14 LG (MM)
2
15
800069
R-113 GASKET, METAL
1
4
800044
R-132 SCREW M6X1.0X40 HEX SOCKET CAP
ZINC DIN912
3
16
800043
R-130 STUD M10 X 1.5 X 39 MM LG
4
17
800062
R-117 STUD M8 X 1.25 X 32 MM LG
3
5
801107
LOCKWASHER M6 SPLIT BOWED ZINC
DICHROMATE DIN128A
5
18
700124
R-136 PUMP MOUNTING FLANGE FOR MARK-3,
ALU
4
6
800041
R-236 STUD M8 X 1.25 X 151 MM LG
4
19
800548
R-119 LOCKWASHER M8 SPLIT ZINC
4
7
800539
R-206 WASHER M8 FLAT ZINC
4
20
700071
C-5370-11 WASHER 7/8"OD X 11/32"ID X 1/16"TH,
S.S.
1
8
701111
R-152N CRANKCASE HALVES SET
(W/DOWELS)
1
21
800416
RA-108 SCREW M8X1.25X25 HEX CAP ZINC
1
22
800040
R-120 HEX NUT M8 X 1.25
7
9
600037
A-6149P MARK-3 MOUNTING LEG, PLATED
4
10
800501
R-342 OIL SEAL 0.983"
1
11
800054
R-133 GASKET FOR CRANKCASE
1
