WATERAX MARK-3 Owner's Manual
03/2016 – Page 31 of 52

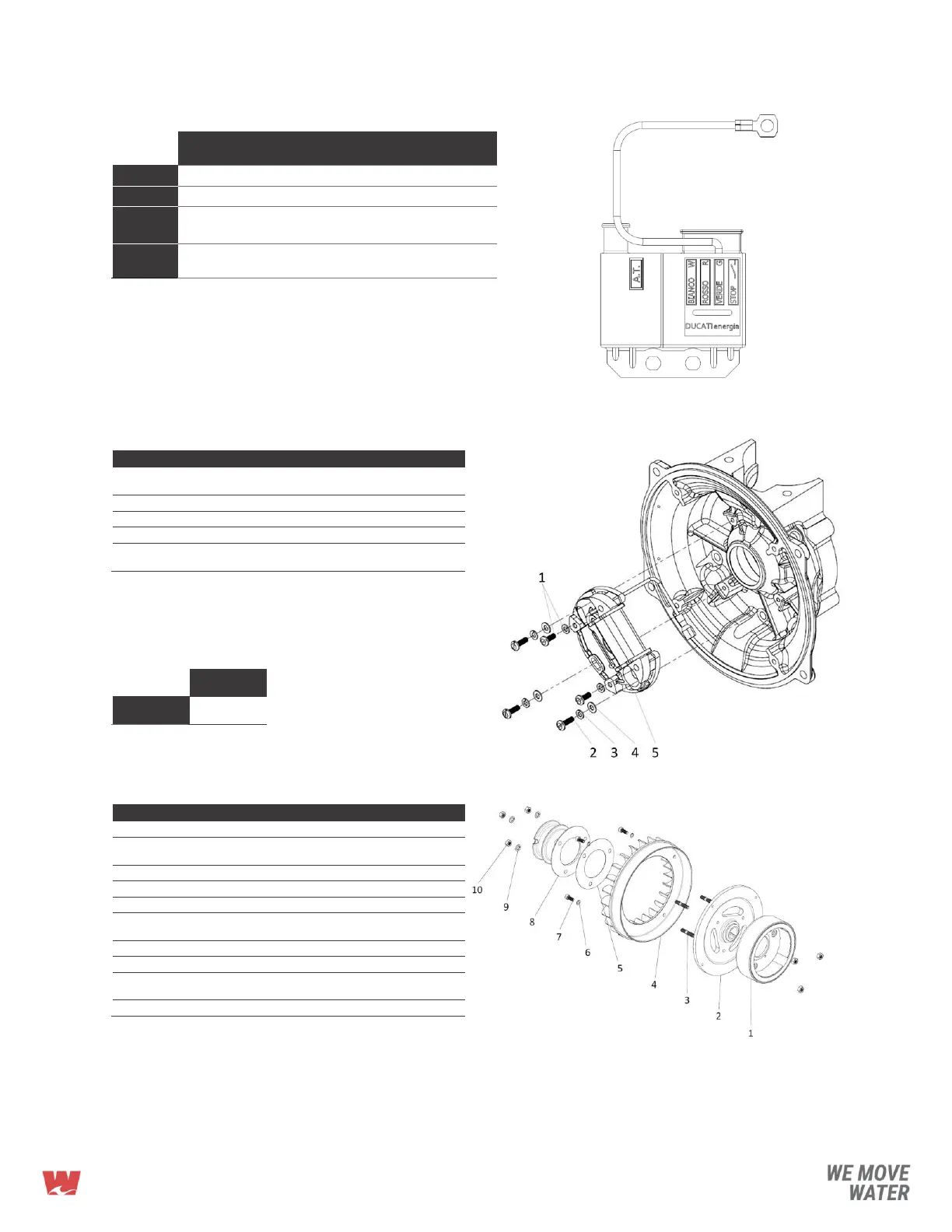

CDI module diagnostic
“STOP”
“VERDE”
GROUND
(red wire)
A.T.
(high voltage)
“STOP”
-
≤ 0.1 Ω
≥ 50 MΩ
≥ 50 MΩ
“VERDE”
≤ 0.1 Ω
-
≥ 50 MΩ
≥ 50 MΩ
GROUND
(red wire)
≥ 50 MΩ
≥ 50 MΩ
-
4.7 – 5.5 kΩ
A.T. (high
voltage)
≥ 50 MΩ
≥ 50 MΩ
4.7 – 5.5 kΩ
-
Note: The above values are not always a guarantee of perfect efficiency of the part.
Stator breakdown
ID
ITEM NO
DESCRIPTION
QTY
1
800497*
R-655 SCREW M4X0.7X20 PHILLIPS PAN
ZINC W/ WASHER
2
2
800110
R-638 MACH. SCREW, PAN SLOTTED
3
3
800540
R-611 LOCKWASHER M4 SPLIT ZINC
3
4
800551
R-637 WASHER M4 FLAT ZINC
3
5
800073
R-661-CDI STATOR, COIL/ARMATURE
ASSEMBLY
1
* Included in R-661 CDI STATOR (800073)
Note: R-636 Grommet (800074) not shown.
Stator diagnostics
GREEN WIRE
FROM COIL
GROUND
(STATOR)
225 – 255 Ω
Note: The above values are not always a guarantee of
perfect efficiency of the part.
Magneto breakdown
ID
ITEM NO
DESCRIPTION
QTY
1
701109*
R-668E MAGNETO CDI FOR 185CC
1
2
600534*
R-669 MAGNETO HOUSING FOR 185CC
WITH MACH. KEYWAY
1
3
800123*
R-602 STUD M6 X 1.0 X 31 MM LG
3
4
701110*
R-603N COMPOSITE FAN FOR 185CC
1
5
800102
R-653 PULLEY GASKET
1
6
801163*†
LOCKWASHER M5 TEETH SERRATED ZINC
DIN 6798
4
7
800058*
R-146 ALLEN SCREW M5X12
4
8
800130
R-601 PULLEY FOR MANUAL START
1
9
801107
LOCKWASHER M6 SPLIT BOWED ZINC
DICHROMATE DIN128A
3
10
800045*
R-116 HEX NUT M6X 1.0
6
* Included in R-667N-ES Flywheel/Magneto/Fan Assy CDI (600535)
† For aluminum fan, use R-523 lockwasher M5 split (800553)
