WaterLogic WL2 Firewall - Wetted Parts Illustration; Wetted Parts List

30 31
Waterlogic 2 Firewall Technical Manual - Issue B, May 2014

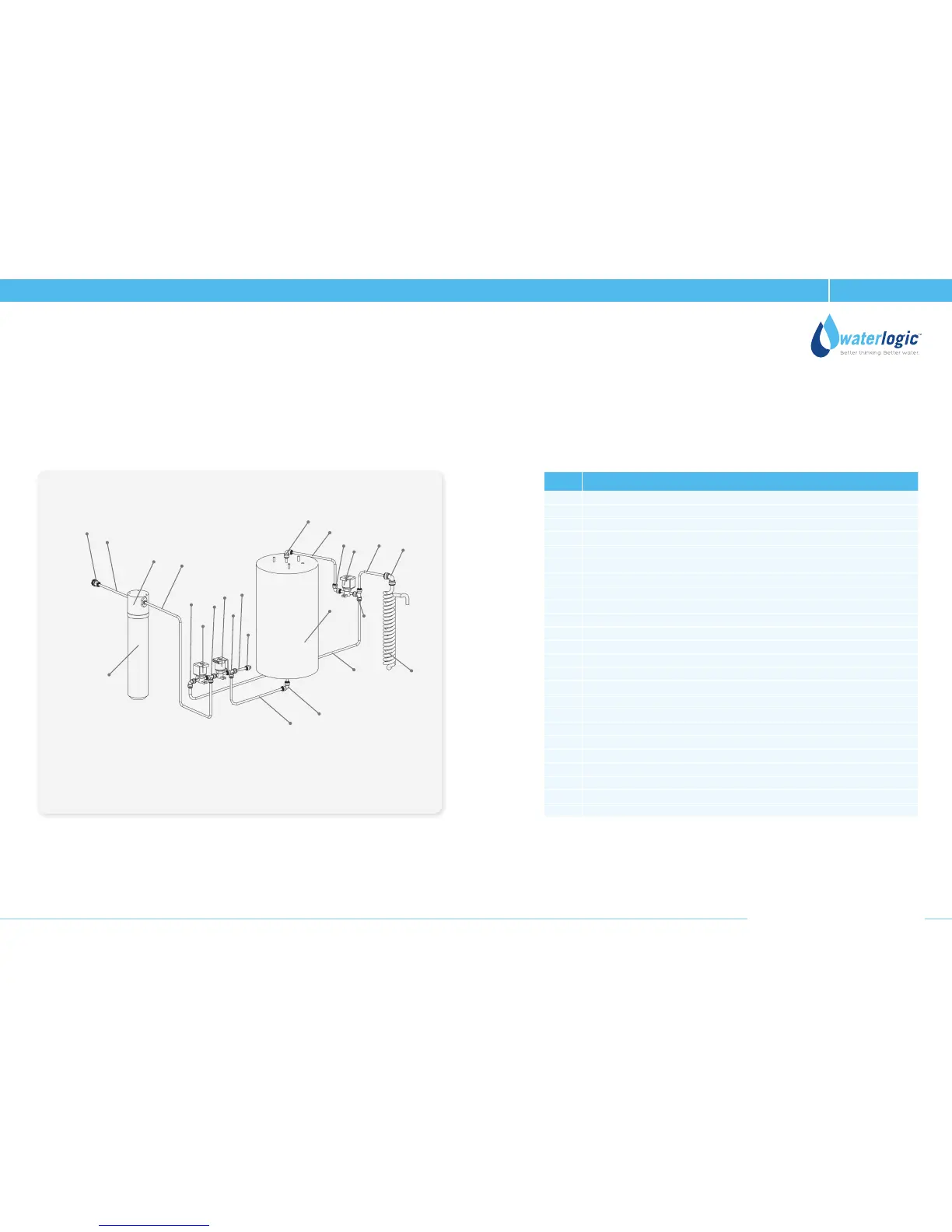

Wetted Parts Illustration
Wetted Parts List
1
2
3
5
4
23
22
6
7
8
20
21
9
10
24
19
16
11
12
13
14
15
17
18
N° Part Description
1 JG Bulkhead Connector Union 1/4" * 1/4"
2 JG LLD PE Tube - Blue O.D.1/4"
3 Valved Twist Filter Head
4 Filter
5 JG LLD PE Tube - Blue O.D.1/4"
6 JG Equal Tee Connector 1/4"
7 Solenoid Valve DC24V 1000mm
8 JG Equal Elbow Connector 1/4"
9 JG LLD PE Tube - Blue O.D.1/4"
10 JG Equal Elbow Connector 1/4"
11 Cold Tank Assembly (4 Liters / No UV Holder)
12 JG Equal Elbow Connector 1/4"
13 JG LLD PE Tube - Blue O.D.1/4"
14 JG Equal Elbow Connector 1/4"
15 Solenoid Valve DC24V 1000mm
16 JG Equal Tee Connector 1/4"
17 JG LLD PE Tube - Blue O.D.1/4"
18 JG 3/8" x 1/4" Reducing Fitting
19 Faucet UV -Sprial Quartz
20 Solenoid Valve DC24V 1000mm
21 JG Equal Elbow Connector 1/4"
22 JG LLD PE Tube - Blue O.D.1/4"
23 JG Equal Elbow Connector 1/4”
24 JG LLD PE Tube - Blue O.D.1/4”
