WaterLogic WL2 Firewall - Freestanding Model Parts List; Freestanding Model Illustration; Freestanding Model Part Numbers

32 33
Waterlogic 2 Firewall Technical Manual - Issue B, May 2014
N° Part Description
1 Top Cover Black
2 Thermostat Cold Tank
3 Silver Back Panel
4 Switch - Power
5 Fuse Holder & Fuse 220V/10A
6 Socket for Plug Connection
7 Gasket for Power Socket
8 Silver Side Panel
9 JG Bulkhead Connector Union 1/4" * 1/4"
10 Plastic Cap for 1/4" Bulkhead Fitting
11 Compressor
12 Down Base
13 Bolt
14 Unit Control Rubber Feet
15 JG Equal Elbow Connector 1/4"
16 Solenoid Valve DC24V 1000mm
17 JG Equal Tee Connector 1/4"
18 Solenoid Valve DC24V 1000mm
19 JG Equal Elbow Connector 1/4"
20 Cushion for Solenoid Valve
21 Filter Bracket
22 Filter Clip 3"
23 Valved Twist Filter Head
24 Filter
25 Front Down Panel
26 Front Down Insert Panel
27 Sensor fixing Rubber
28 UV Sensor
29 15W UV Lamp
30 Firewall UV Lamp Fixing Rubber

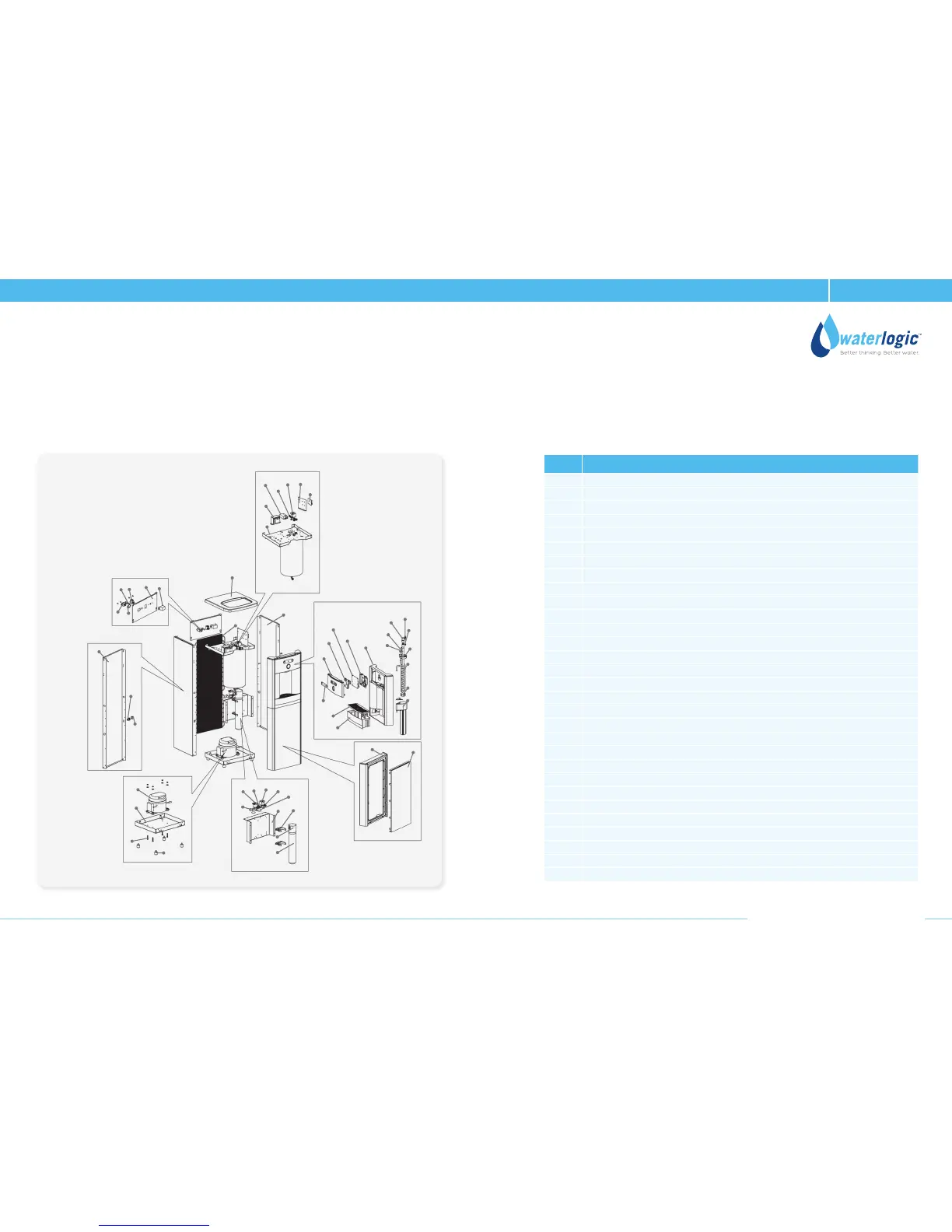

Main Parts Illustration
Freestanding Model
Spare Parts Numbers
2
3
4
5
7
6
5
9
10
11
12
13
14
15
17
16
18
19
20
21
22
23
24
25
26
43
44
33
32
31
30
29
28
27
34
35
37
38
39
40
41
42
50
49
48
47
46
55
56
1
57
58
