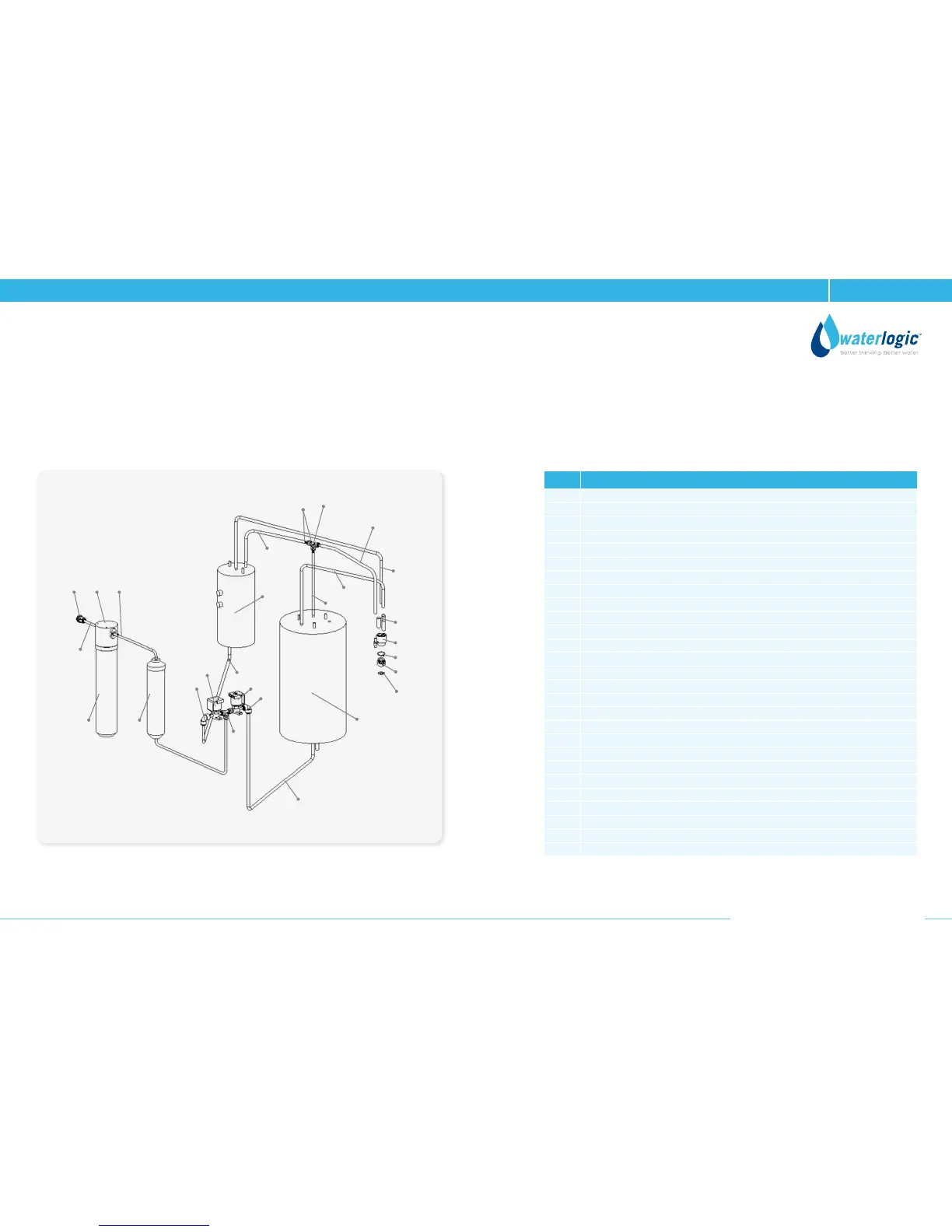

Wetted Parts Illustration
Wetted Parts List
1 3 5
13
N° Part Description
1 JG Bulkhead Connector Union 1/4" * 1/4"
2 JG LLD PE Tube - Blue O.D.1/4"
3 Valved Twist Filter Head
4 Carbon GAC Filter
5 JG LLD PE Tube - Blue O.D.1/4"
6 Polyphosphate & Carbon Filter
7 JG Reducing Elbow Connector 5/16" * 1/4"
8 Solenoid Valve DC24V 1000mm
9 JG Equal Tee Connector 1/4"
10 JG Reducing Elbow Connector 5/16" * 1/4"
11 Solenoid Valve DC24V 1000mm
12 JG LLDPE Tube - Blue 8mm
13 Drawn Hot Tank Assembly 1.5L
14 Silicon Tube 5/16"
15 JG LLD PE Tube - Blue O.D.1/4"
16 JG Equal Tee Connector 1/4"
17 Silicon Tube 5/16"
18 JG LLDPE Tube - Blue 8mm
19 Silicon Tube 5/16"
20 Silicon Tube 5/16"
21 Stainless Steel Insert for Faucet
22 Faucet HC & CA
23 Natural Faucet O-Ring
24 Faucet Nipple Blue
25
Natural Faucet O-Ring
26
UV Cold Tank Assembly
27
JG LLDPE Tube - Blue 8mm
2
4 6
9
12
7
8
11
10
26
25
24
23
22
21
20
17
18
14
15 16
19
27
