Waterlogic 2000IT Technical Manual - Issue B, December 2013

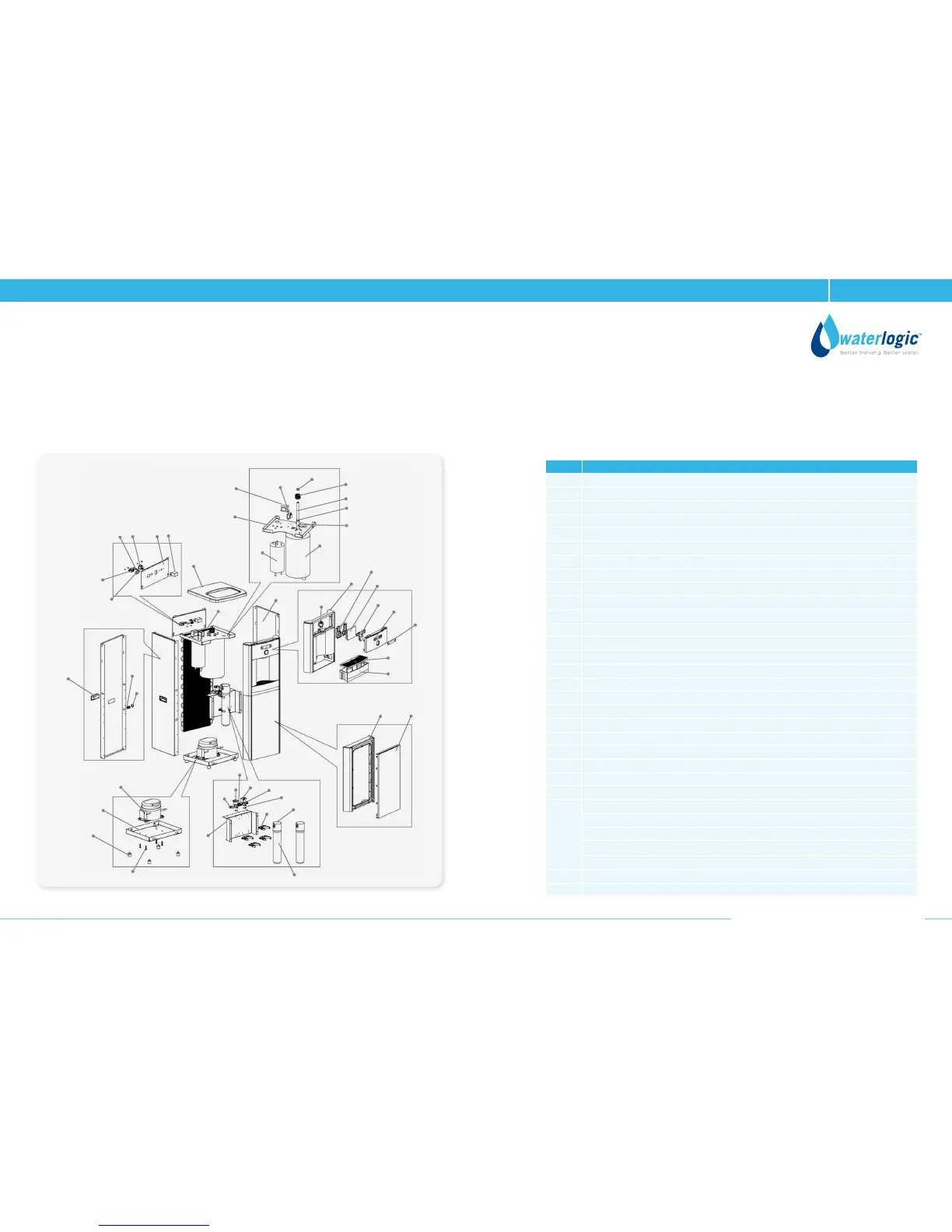

Main Parts Illustration
Freestanding Model - Hot & Cold
Spare Parts Numbers
1
2345
8
11
12
13
14
15
16
16
17
19
20
21
22
23
25
34
45
35
36
37
38
39
44
40
41
42
43
26
27
28
29
30
31
32
33
24
17
18
9
10
6
7
N° Part Description
1 WL2000 Top Cover Black
2 Thermostat
3 WL2000 FS Silver Back Panel
4 Switch - Power (Red)
5 Brown Wire from Fuse holder to red S/W Including Fuse
6 Socket for Plug Connection
7 Gasket for Power Socket
8 Plastic Handle Silver
9 Plastic Cap for 1/4" Bulkhead Fitting
10 JG Bulkhead Connector Union 1/4" * 1/4"
11 Compressor
12 WL2000 Down Base
13 Unit Control Rubber Feet
14 Bolt M6*30
15 WL2000 Filter Bracket
16 JG Reducing Elbow Connector 5/16" * 1/4"
17 Solenoid Valve DC24V 1000mm
18 JG Equal Tee Connector 1/4"
19 Cushion for solenoid valve
20 Filter Clip 3"
21 Optional filter 1
22 Optional filter 2
23 WL2000 Front Down Panel
24 WL2000 Front Down Insert Panel
25
Faucet HC & CA
Facuet Nipple Blue
Stainless Steel Insert for Faucet
Natural Faucet O-Ring (Silicon White)
Stainless Steel Gauze for Faucet
26 WL2000 Front Panel for Drip Tray Insert
27 Plastic PCB Cover for WL2000
