Users Manual
MC100
MC100 DeviceNet OM 1.01 EN.doc Version: 1.01 Page 8 of 36
3.3 Unpacking and inspection of MC100
With the shipment of MC100 you should receive:
• The MC100
• Declaration of Conformity
• CD-rom with documentation:
Manual for installation, programming and service of MC100
Documentation and support-files for Anybus CompactCom fieldbus module
Please check that all ordered items have been received and that no items were damaged during
transport. In case of any defects or omissions, please contact WMF or your supplier immediately.
Please verify that the model number stated on the nameplate and the installed fieldbus connector
matches your purchase order.
Model number on nameplate Fielbus connector
MC100 61-120-000 DeviceNet

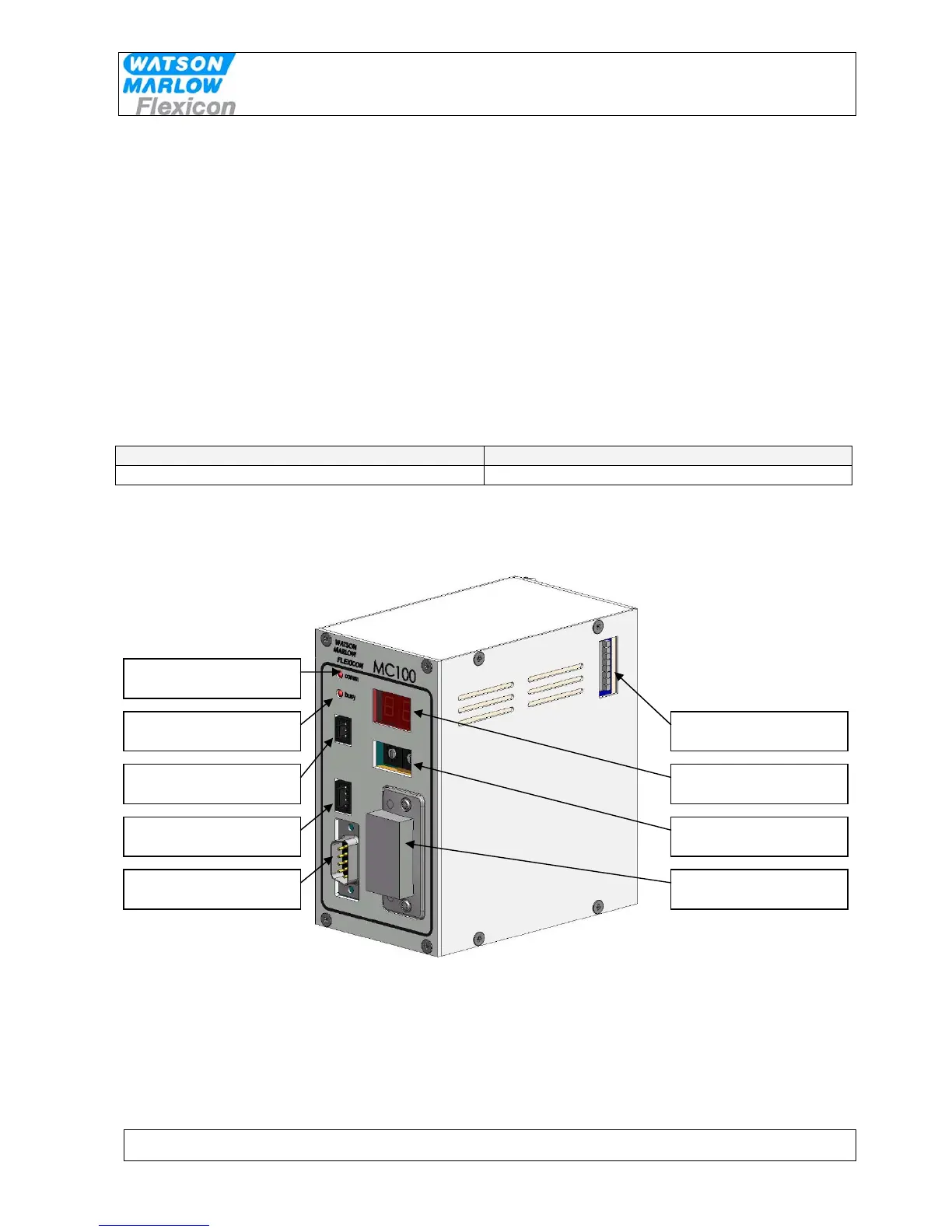

3.3.1 Identifying the module
MC100 module:
Rotary switches
Fieldbus connector
2-digit LED display
8-bit switch
9-pin SUB D connect
Power supply
Flexnet connector
LED - Busy
LED - Online
