4 Wiring

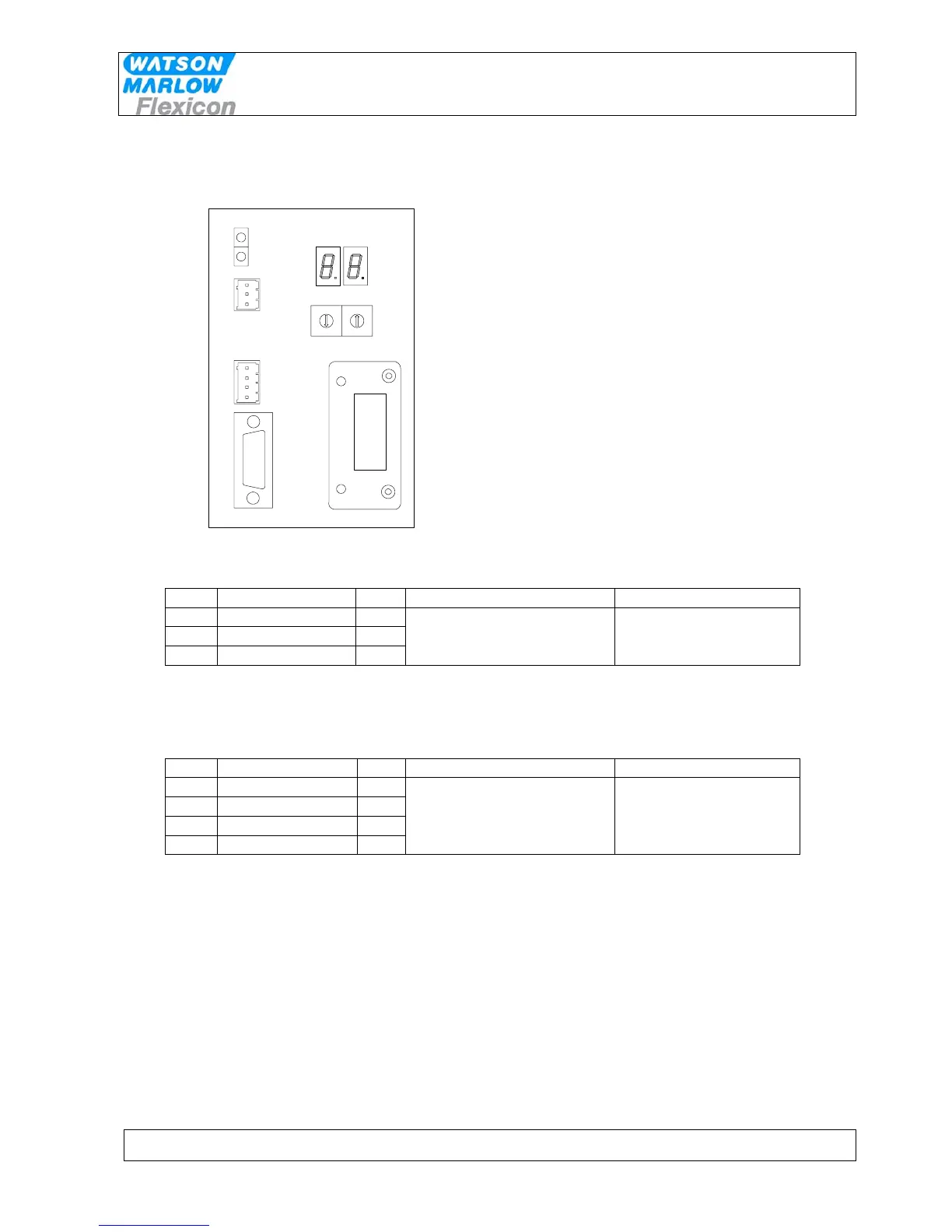

MC100 Frontplate
1
0
3
4
9
6
8
5
7
2
1
0
3
4
9
6
8
5
7
2
X1
X2
X3
X4
Connectors
COMM
BUSY
1
1
X1 Flexnet Connector Connect with
1 /DATA I/O
2 GND -
3 DATA I/O
PHOENIX
MC 0,5/ 3 –G-2,5THT
PHOENIX
FK MC 0,5/ 3 –ST 2,5
The Flexnet connector should be connected to the corresponding terminals on all the pumps,
establishing a multidrop network and the last pump should be terminated with a 120 ohm
resistor between DATA and /DATA.
Use 0.25 – 0.35 mm2 wires twisted or screened. Terminal tubes must be minimum 8 mm long.
X2 Power Supply Connector Connect with
1 N.C. -
2 +24V IN
3 0V IN
4 0V IN
PHOENIX
MC 0,5/ 4 –G-2,5THT
PHOENIX
FK MC 0,5/ 3 –ST 2,5
Use 0.5 mm2 wires, terminal tubes must be minimum 8 mm long.
