Parts Diagrams

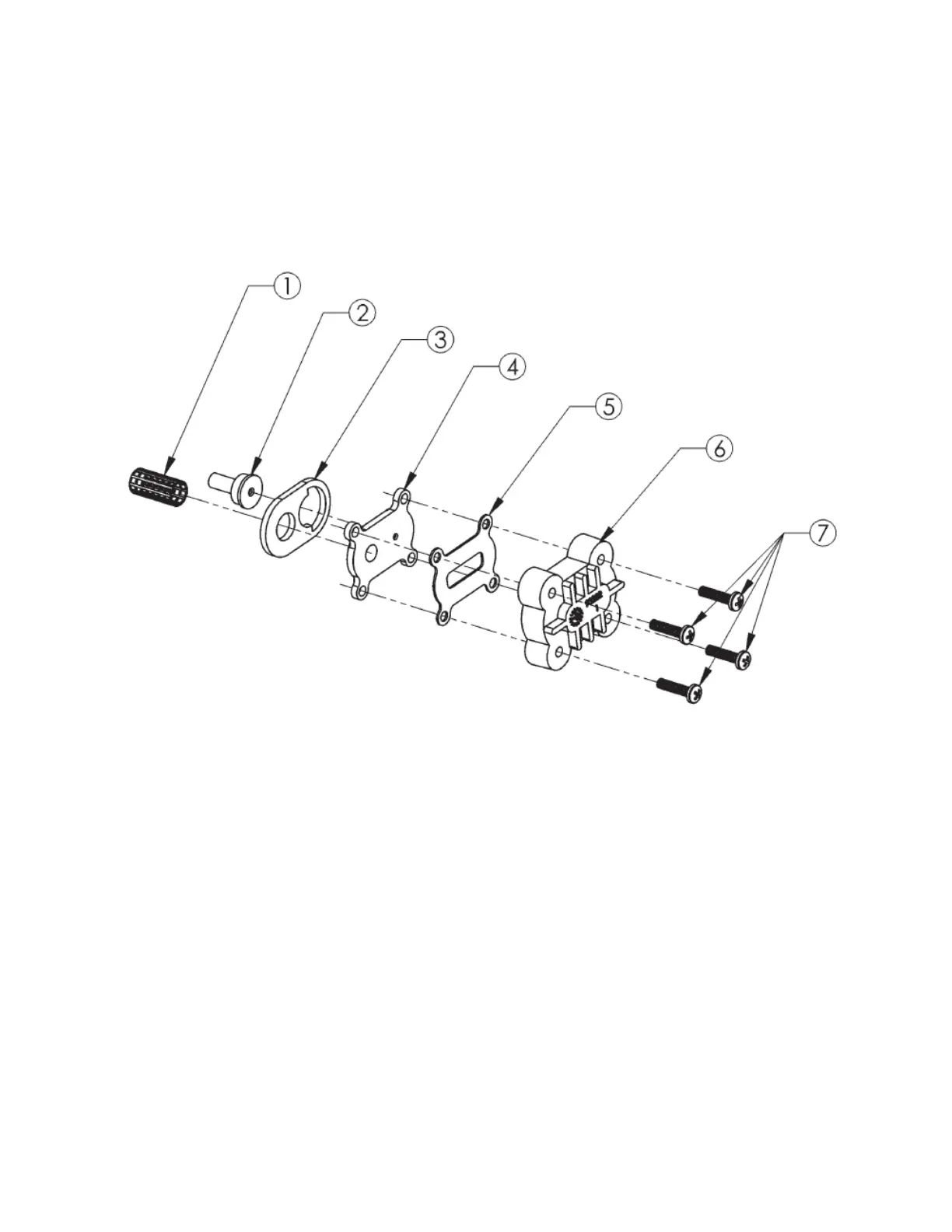

Injector Assembly
Figure 13
Part Number 93501
Note:
When working on the injector assembly,
make sure part #3 aligns properly with the
outline marked on part #4.
22
