Reference Illustrations

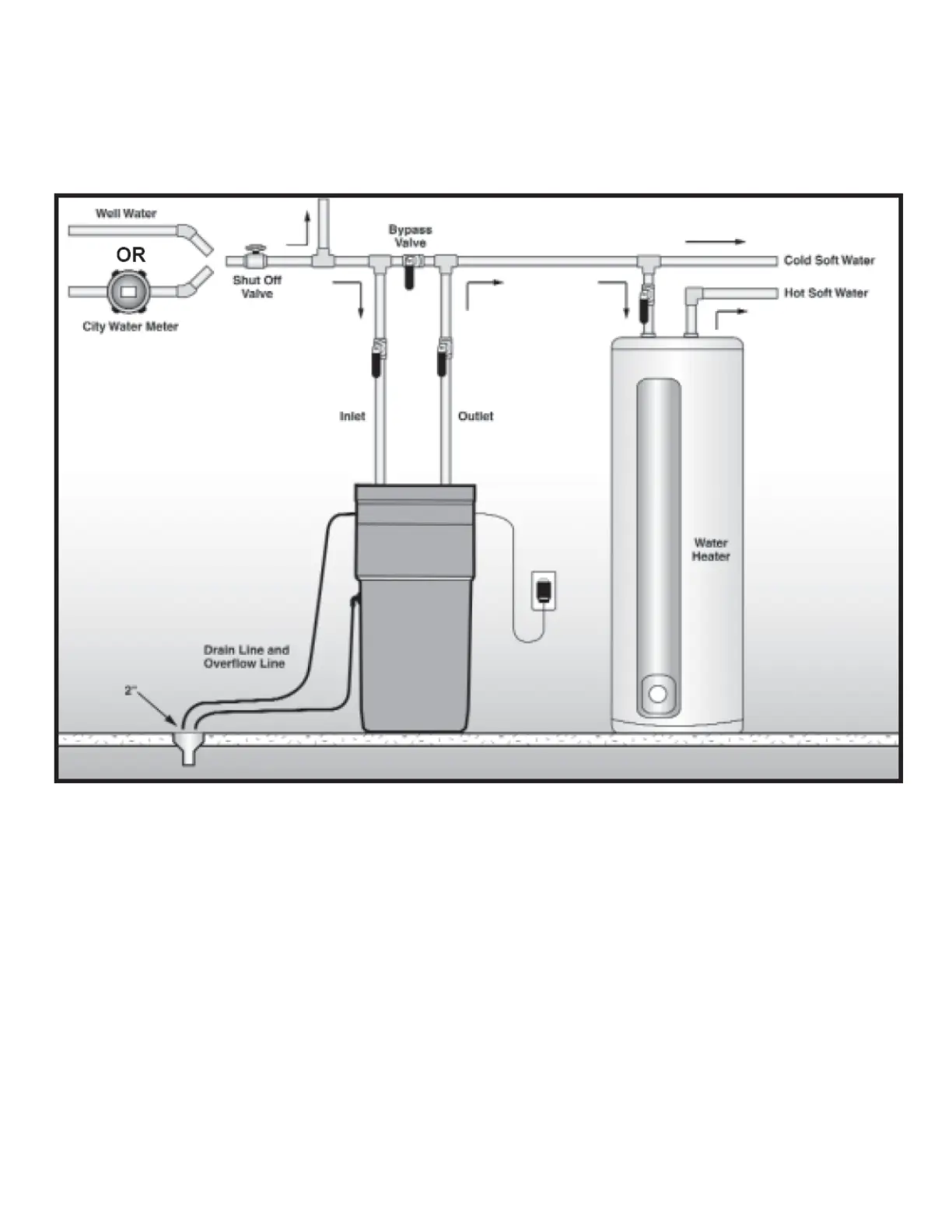

Figure 1
Installation Guide
Use this diagram as a location and installation guide for your water conditioner. This diagram applies to
basement, slab, crawl space and outside installations.
Bypass Valves. To simplify installation and servicing, a one-piece or a three way bypass valve system is
recommended when installing your appliance. A bypass system also provides access to untreated water
when required (i.e. for lawn and gardening purposes.) Also, see fi gures 4 through 6.
Caution: A minimum of 10 feet of 3/4” pipe from the outlet of the water treatment appliance
and the inlet to the water heater is recommended.
8
