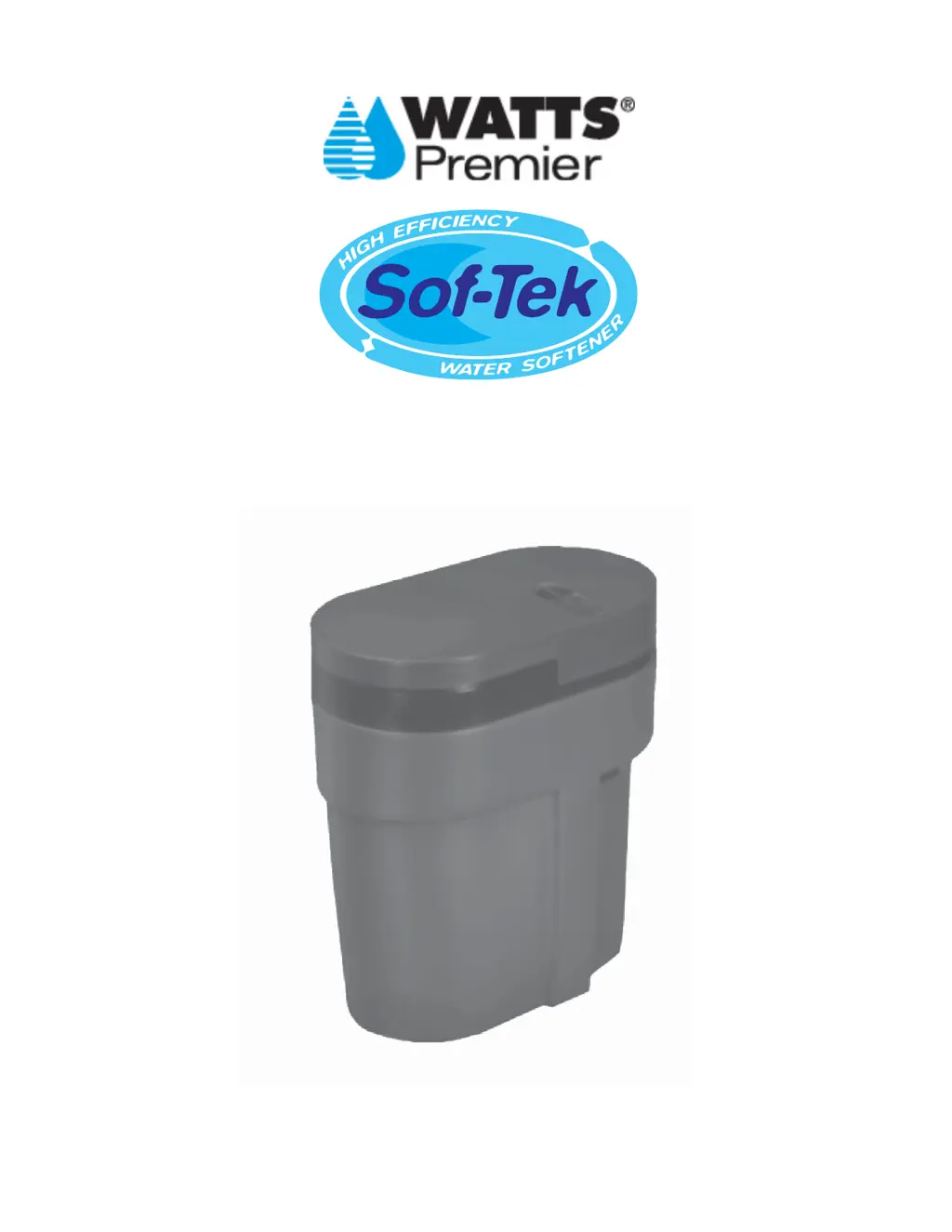

Water Conditioner
Watts Premier, Inc. 1725 W. Williams Drive C-20 Phoenix, AZ 85027
Phone: 800-752-5582 www.wattspremier.com Fax: 623-931-0191
Manual Edition: 2/19/08
P/N: Sof-Tek
INSTALLATION, OPERATION AND MAINTENANCE MANUAL

Questions and Answers

  • N
    Natalie HawkinsAug 14, 2025
    How to fix Watts Premier Sof-Tek not producing soft water after regeneration?
    • D
      Darryl ReidAug 14, 2025
      If your Watts Premier Water Dispenser isn't producing soft water after regeneration, here are some possible causes and solutions: * **No salt in brine cabinet:** Add salt. * **Sediment in brine tank:** Remove the air check draw tube and flush it with clean water. Clean the injector assembly and remove any sediment from the brine cabinet. * **Drain line issues:** Straighten, thaw, or unclog the drain line if it's pinched, frozen, or restricted. * **Clogged injector assembly:** Remove the injector cap and clean the nozzle and throat with a wooden toothpick. Replace the throat if removed. * **Salt bridge:** Break up any salt bridge that has formed by pushing a blunt object like a broom handle into the salt.
  • T
    Timothy MayAug 17, 2025
    What to do if my Watts Premier Water Dispenser has no display?
    • K
      Kevin LivingstonAug 17, 2025
      If there is no display on your Watts Premier Water Dispenser, consider these potential causes: * **Unplugged electric cord:** Plug in the transformer. * **No power at outlet:** Check the power source and ensure the outlet is not controlled by a switch. * **Defective transformer:** Test with a voltmeter for 12 VAC at the control. If there is 0 VAC, replace the transformer. * **Defective circuit board:** With 12 VAC present at the controller, replace the circuit board.
  • A
    Alicia WallerAug 20, 2025
    Why is my Watts Premier Sof-Tek not producing soft water?
    • E
      Emma BriggsAug 20, 2025
      If your Watts Premier Water Dispenser is not producing soft water, consider the following: * **Bypass valve position:** Ensure the plumbing bypass valve is in the service position. * **Incorrect plumbing:** Check that the appliance is plumbed correctly. * **Increased water hardness:** Reset the water hardness. * **Not metering water:** If no flow is indicated with water usage, further inspection is needed.
  • R
    Ronald WoodAug 25, 2025
    How to reduce excess water in brine tank of Watts Premier Sof-Tek Water Dispenser?
    • C
      cannonwendyAug 25, 2025
      To address excess water in the brine tank of your Watts Premier Water Dispenser: * **Check the drain line:** Remove any restrictions, thaw if frozen, or straighten the drain line if pinched. * **Inspect brine line:** Clean the flow control, air check, and brine line. Also, remove any sediment from the brine cabinet. * **Examine injector assembly:** Replace the drive end cap. * **Brine refill valve:** Remove the valve, lubricate the piston with silicone grease, and reassemble.
  • B
    Brian FaulknerAug 27, 2025
    Why is my Watts Premier Water Dispenser dispensing salty water?
    • I
      icontrerasAug 28, 2025
      If your Watts Premier Water Dispenser is dispensing salty water, consider the following potential causes: * **Plugged Injector:** Clean the injector screen, nozzle, and throat. * **Low water pressure:** Maintain a minimum pressure of 20 psi. * **Restricted drain line:** Remove any restrictions from the drain line or flow control. * **Restricted brine line:** Remove any restrictions and replace the brine line if it is crimped. * **Excessive water in brine cabinet:** Verify the correct water level relative to the salt setting and check lines for loose connections. * **Intermittent pressure drop:** Verify adequate pressure and volume of the water supply.
  • L
    linda95Aug 31, 2025
    What to do if Watts Premier Sof-Tek stays in regeneration?
    • L
      Lauren RobertsAug 31, 2025
      If your Watts Premier Water Dispenser remains in regeneration with flashing cycle numbers, consider these solutions: * **Computer control attachment:** Ensure the computer control is fully pushed onto the drive end cap. * **Foreign object in valve body:** Remove any foreign objects from the valve body. * **Broken valve assembly:** Replace the drive end cap if the motor is running but the magnet disc is not turning.
  • A
    Autumn LaraSep 3, 2025
    Why does my Watts Premier Sof-Tek Water Dispenser show no flow when water is being used?
    • R
      Ricky RothSep 3, 2025
      If your Watts Premier Water Dispenser shows no flow when water is flowing, check these: * **Bypass valve position:** Ensure the plumbing bypass valve is in the service position. * **Incorrect plumbing:** Check that the appliance is plumbed correctly. * **Sensor issue:** Remove the sensor from the IO housing and test by placing a magnet on the sensor chip. If the waterMizer® blinks, replace the turbine; if not, replace the sensor.
  • S
    Steve MoyerSep 6, 2025
    What causes Watts Premier Sof-Tek Water Dispenser to not regenerate in proper sequence?
    • J
      Jeffrey RichardsonSep 6, 2025
      If your Watts Premier Water Dispenser is not regenerating in the correct sequence: * **Magnet disc:** Replace the magnet disc if it is defective. * **Position sensor:** Replace the control if the position sensor is defective.
  • C
    Chad YangSep 10, 2025
    What to do if Watts Premier Water Dispenser indicates flow when no water is being used?
    • P
      psantiagoSep 10, 2025
      If your Watts Premier Water Dispenser indicates flow even when no water is being used, it is likely due to a leak in your household plumbing system. Repair the leak.

Summary

Maximize Appliance Efficiency

Pre-Installation Checklist

Installation Dos and Donts

Dos and Donts Summary

Key recommendations and prohibitions for installation.

Reference Illustrations and Plumbing

Installation Guide Diagram

Diagram illustrating overall system setup and placement for installation.

Plumbing Connections

Guidance on connecting water lines using various fitting types.

Installation Tips

Advice on fitting installation to avoid damage.

Plugging In Transformer

Instructions on connecting the power transformer correctly.

Adding Salt to the Brine Cabinet

Visual guide on adding salt to the brine cabinet.

Installation and Start-Up Procedures

Setting the Water Conditioner Controller

Demand Regeneration Explained

How the controller manages regeneration based on water usage.

Hardness and Advanced Settings

Setting water hardness and choosing High Capacity/Efficiency modes.

Error Codes and Controller Layout

Understanding controller error messages and interface layout.

Water Conditioner Parts Diagrams

Electronics and Cabinet Parts

Diagrams and part numbers for electronic and cabinet components.

Cabinet and Assembly Parts

Illustrated parts breakdown for cabinet and various assemblies.

Injector Assembly Parts

Detailed view and parts list for the injector assembly.

I;O Adapter Assembly Parts

Diagrams and part numbers for the inlet/outlet adapter assembly.

Brine Valve Housing Assembly

Exploded views and parts for the brine valve housing assembly.

Safety Shutoff Assembly Parts

Diagram and parts list for the safety shutoff assembly.

Fill Plug Assembly Parts

Diagram and parts for the fill plug assembly at the tank bottom.

Troubleshooting Guide

No Soft Water Issues

Diagnosing and resolving problems with no soft water output.

Water Flow and Display Problems

Troubleshooting issues related to water flow indication and display errors.

Regeneration and Brine Tank Issues

Addressing problems with regeneration cycles and brine tank water levels.

Salty Water and Other Issues

Solutions for salty water output and other less common problems.

Water Conditioner Specifications

Limited Warranty Information

Warranty Coverage and Terms

Details on appliance coverage, duration, and exclusions.

Watts Premier Sof-Tek Specifications

General IconGeneral
BrandWatts Premier
ModelSof-Tek
CategoryWater Dispenser
LanguageEnglish
