CONTROL VALVE CALIBRATION Instructions
COVER
SCREWS (2)
HAND-WHEEL

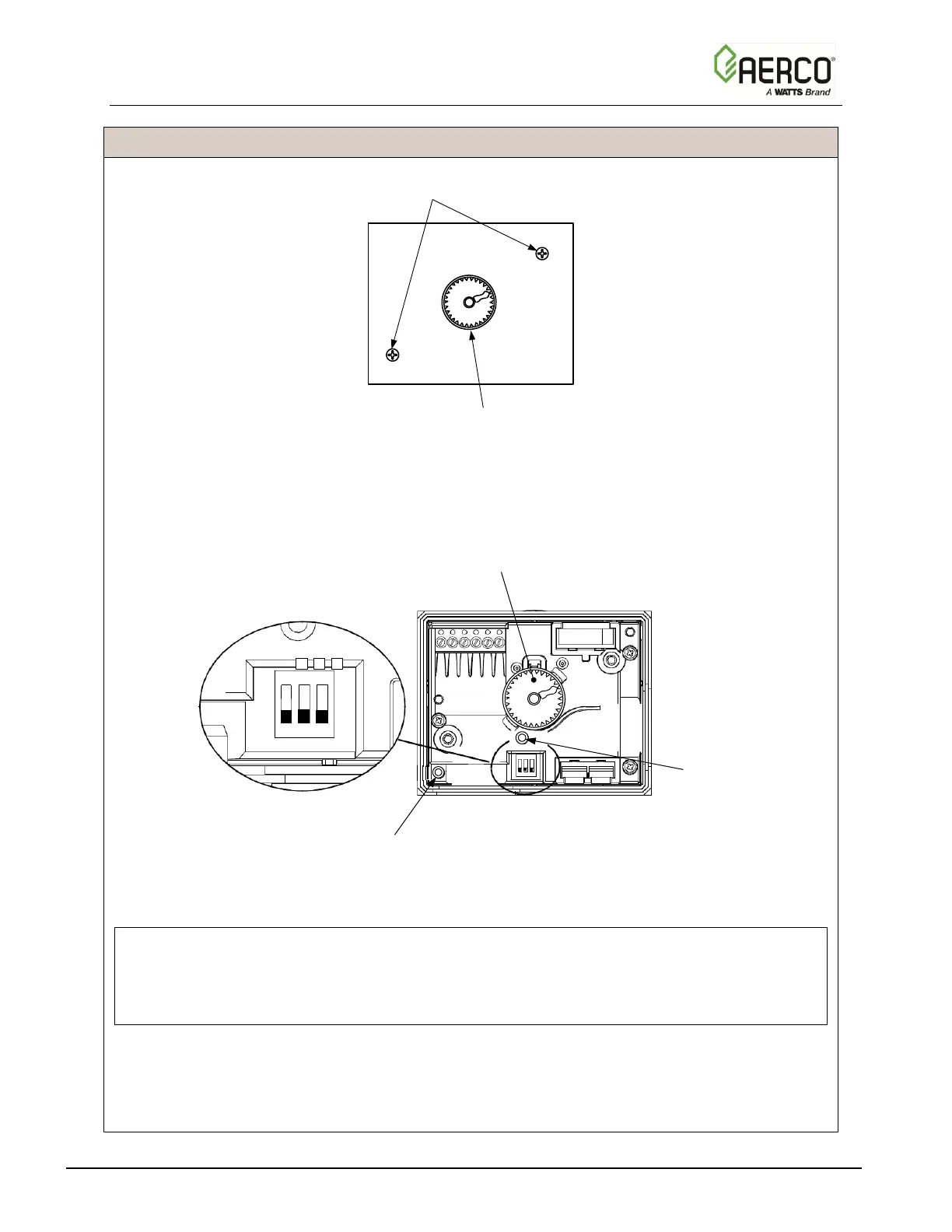

Figure 4-1. Control Valve Electronics Module – Top View
2. Remove the Electronics Module cover from the Valve to access the internal components
shown in Figure 4-2
1
2
3
ON
LED
AUTO-
STROKE
BUTTON
DIP SWITCHES
HAND-WHEEL
Figure 4-2. Control Valve with Electronics Module Cover Removed
NOTE:
When external 120/240 VAC power is properly connected to the ECS/SP Control Box, 24
VAC power is supplied to the MXG-461 Control Valve when the Control Box POWER switch
is set to the ON position. The POWER switch is located on the right side of the Control Box.
3. Ensure that all three (3) DIP switches shown in Figure 4-2 are in the OFF (Down) position
as shown.
