SmartPlate Installation, Operation & Maintenance Manual
CHAPTER 8 – CORRECTIVE MAINTENANCE

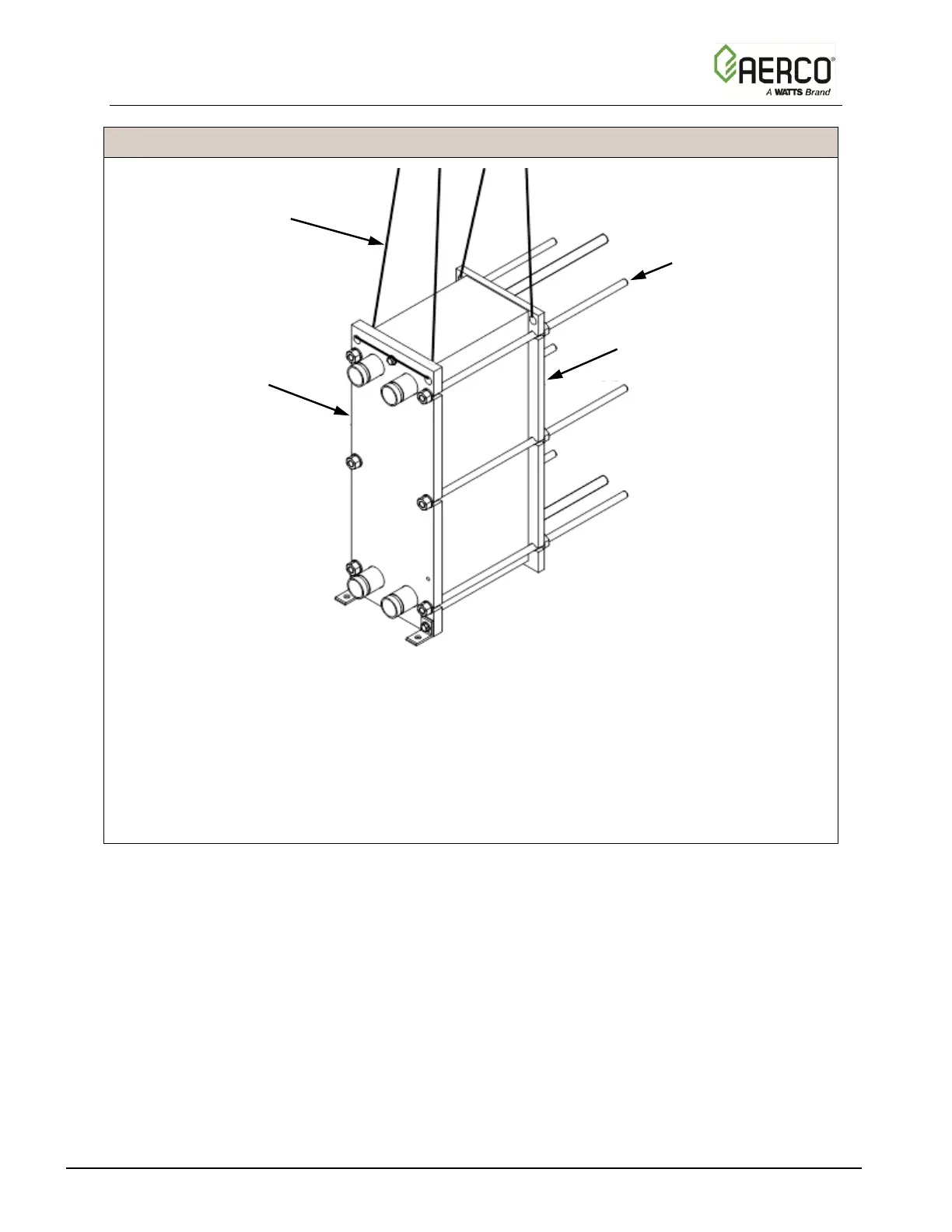

Figure 8-20. Heat Exchanger Lifting Strap
To replace the heat exchanger with a new assembly, simply reverse the previous steps.
Support the replacement heat exchanger using a suitable lifting strap (shown in Figure 8-20,
above) and lower into position on the heat exchanger mount. Ensure it is properly aligned with
the Piping Assembly and heat exchanger mount. Ensure that the bolts on all four Victaulic
couplings or flange connectors are securely tightened. For model SPDW61 or SPDW113, re-
install the rear support bracket and verify that adjustable legs are properly positioned.
