Watts WQC4RO - Diagram & Parts List

Page 4
Parts List*
Item Part# Description
A WQCSC11 / WQCSC13 SEDIMENT FILTER (11” OR 13”)
B WQCCC11 / WQCCC13 PRE-CARBON FILTER (11” OR 13”)
C WQCM11-50 / WQCM13-100 RO MEMBRANE FILTER (11”-50 GPD OR 13”-100 GPD)
D WQCGAC11 / WQCGAC13 POST-CARBON FILTER (11” OR 13”)
E ROPRO4-W PLASTIC TANK OPTION
F FRO-132-W METAL TANK OPTION
G PPSV500822W TANK VALVE
H WTMFAG-C AIR-GAP WTM CHROME FAUCET (OPTION)
I F134003 AUTOMATIC SHUT OFF VALVE
J FU-AGLR.C/3 AIR-GAP LONG-REACH CHROME FAUCET (OPTION)
K FNP3033CP-US05 NON-AIR-GAP LONG-REACH CHROME FAUCET (OPTION)
L F122051 @ 50GPD / F123001 @ 100 GPD FLOW RESTRICTOR 500 ML / 1000ML (NOT SHOWN)
M F560080 ADAPT-A-VALVE
N SC500B38 3/8” DRAIN SADDLE
O SC500B14 1/4” DRAIN SADDLE
* PARTS LIST IS SUBJECT TO CHANGE

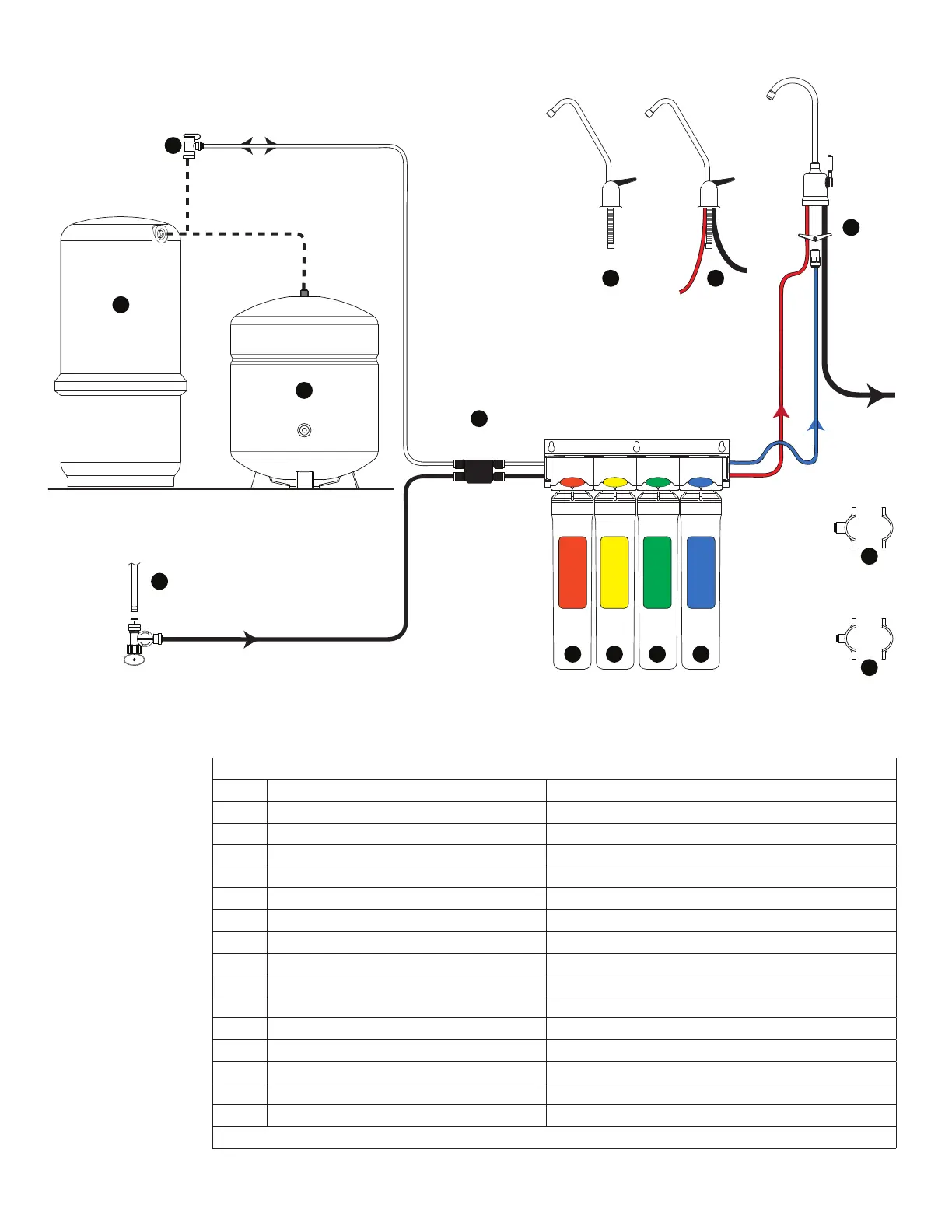

COLD WATER
ANGLE-STOP
(SUPPLY)
ADAPT
-A-
VALVE
WTM
FAUCET
OPTION
BLACK - 1/4” TUBE
FEED / COLD
H
M
RED - 1/4” TUBE
BRINE
METAL TANK OPTION
F
G
BLUE - 1/4” TUBE - FAUCET
WHITE - 1/4” TUBE
TANK
1/4”
DRAIN
SADDLE
O
I
AUTOMATIC
SHUT-OFF VALVE
BLACK - 3/8” TUBE
DRAIN
PLASTIC TANK OPTION
E
3/8”
DRAIN
SADDLE
N
AIR-GAP
CHROME
FAUCET
OPTION
J
RO MODULE
“IN”
PORT
“OUT”
PORT
A B C D
NON-AIR-GAP
CHROME
FAUCET
OPTION
K
WQC4RO Diagram & Parts List
