Watts WQC4RO - Faucet Tube Connection (RO Water); Non Air-Gap Faucet Connection

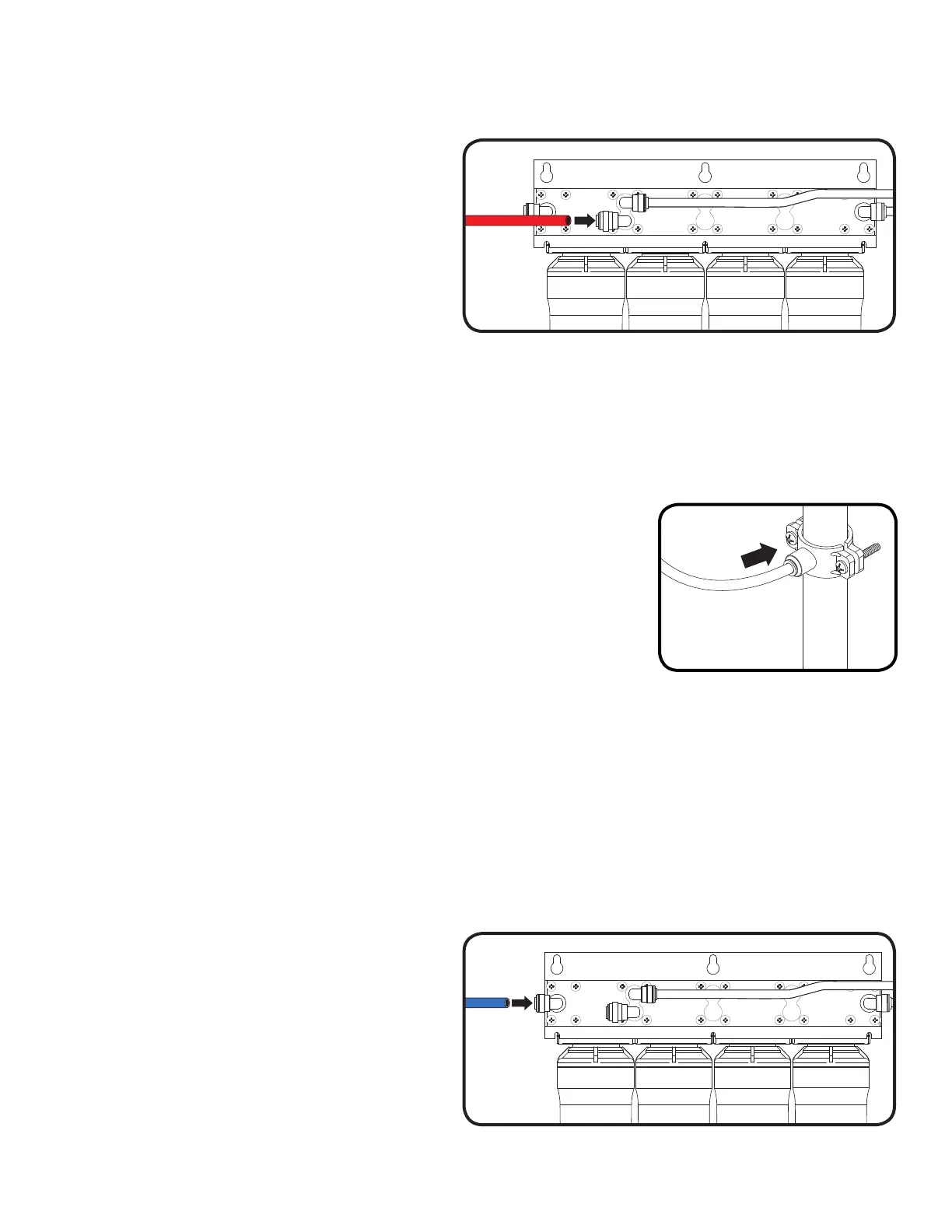

Page 8
The 3/8” drain tube must be as SHORT and STRAIGHT as possible from the RO
faucet to the drain saddle, making a downward slope from faucet to drain saddle to
allow for proper drainage. This is a gravity fed line and if there is any bend or dip
in the tube, the rinse water will not ow into the drain properly. Water may back
up and come out the air gap hole in the back of the faucet.
Locate the 3/8” drain tube attached to the RO faucet.
Measure the 3/8” drain tube from the RO faucet to the drain
saddle mounted on the drain pipe and make a straight cut
to the correct length per note above. Insert the open end
of the 3/8” black tube into the drain quick connect tting on
the drain saddle.
( B ) 3/8” Tube Fitting Drain Saddle
NOTE:
Locate the 1/4” red tube attached
to the RO Faucet. Connect the tube
to the elbow tting on the back of
the RO Module - behind the RO
Membrane. Make sure the tube is
pushed in all the way to the tube
stop.
BLACK
3/8” TUBE
DRAIN
Step 13B-1
Step 13B-2
DRAIN LINE
1/4” RED
SEDIMENTPRE-CARBONRO MEMBRANEPOST-CARBON
Faucet Tube Connection - RO Water
Step 14
( A ) Non Air-Gap faucet - Single tube
Choose your conguration below ( A - Non Air-Gap Faucet or B - Air-Gap Faucet ):
Step 15A-1
Connect the other open end of the
blue 1/4” tube to the elbow tting on
the back of the RO Module behind
the Post-Carbon Filter. Make sure
the tube is pushed in all the way to
the tube stop. Continue to step 16
on the next page.
In the parts bag locate blue 1/4” tube. Connect one open end of the tube to the RO faucet.
Step 15A-2
FAUCET LINE
1/4” BLUE
SEDIMENTPRE-CARBONRO MEMBRANEPOST-CARBON
