RS485 TO ETH ( B)
Electricity, smart meters and energy consumption monitoring;
Remote monitoring and program downloading of various automated PLCs;
Various configuration software and equipment communication interfaces;
Equipment networking in the field of access control and security;
A typical application connection is shown in Figure 2. The original serial device UART is
connected to the UART port of RS485 TO ETH (B), and UART TO ETH (B) is connected to the
computer through a network cable. The software on the computer establishes a connection with
UART TO ETH (B) through TCP/ IP or virtual serial port. After that, any data sent by the serial
device will be transparently transmitted to the computer software, and the data sent by the
software via the network UART TO ETH (B) will also be transparently transmitted to the serial
device

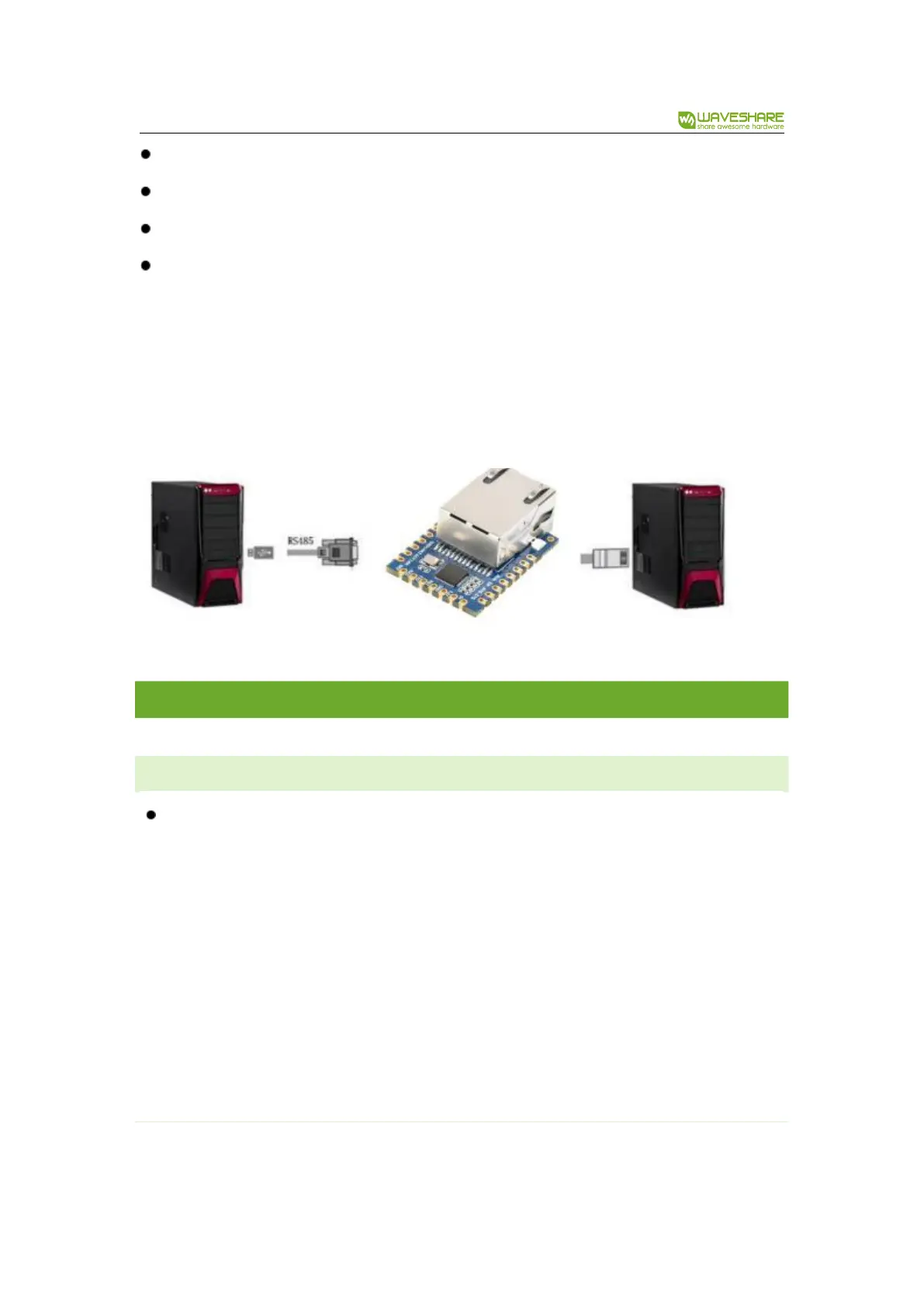

Figure 2 Connection diagram
2 . 1 . HARDWARE FEATURES
Compact And Easy Integration
Castellated Holes With Immersion Gold Design, Highly Integrated Packaging
Supports Multiple Ways To Be Embedded Into Various Product Applications
