RS485 TO ETH ( B)

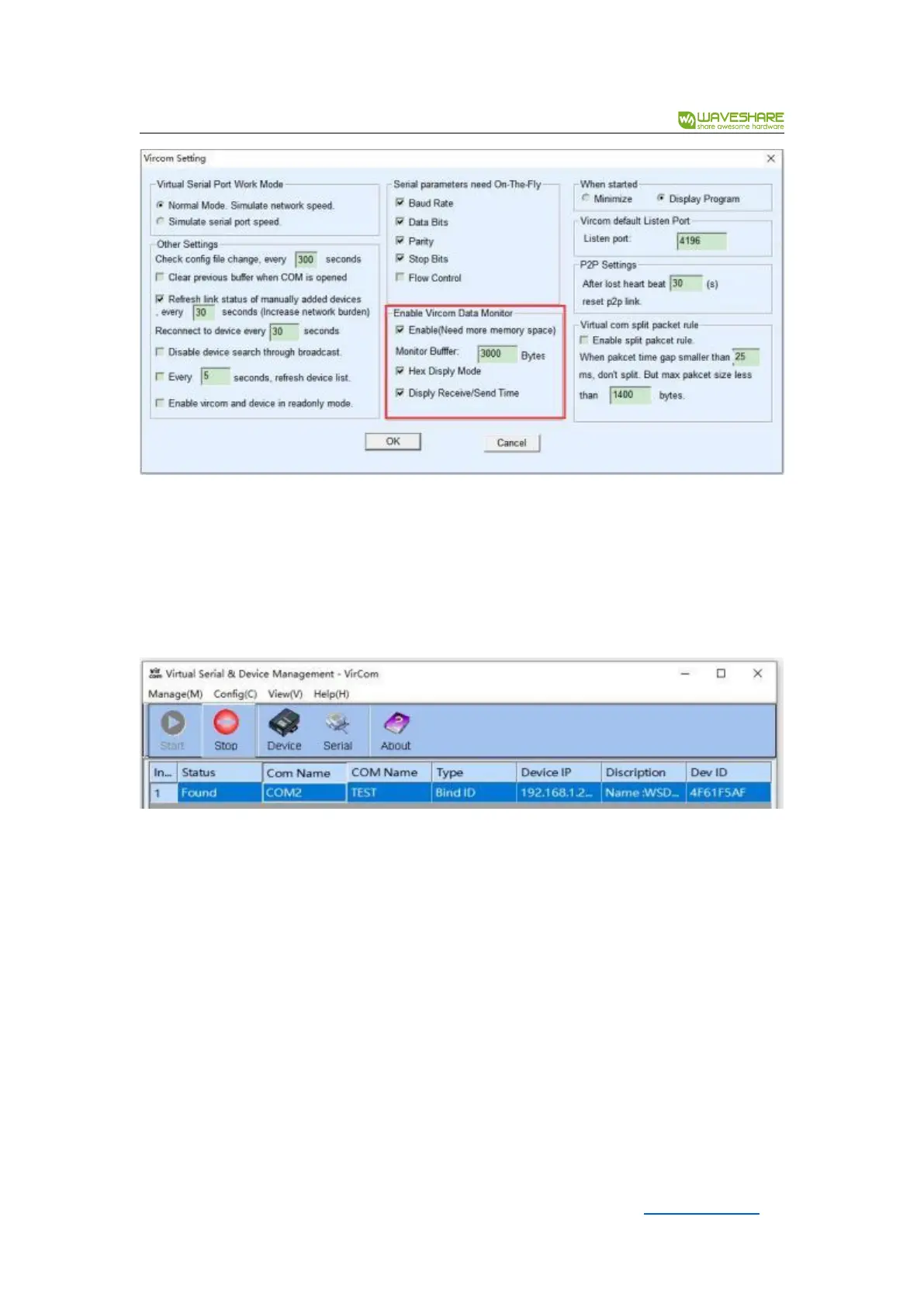

Figure 31 Enable Virocm monitoring
Tick in front of the three options: open monitoring, hexadecimal monitoring mode, and
display data sending and receiving time, as shown in Figure 23. Then click OK. Assuming that data
has been sent and received before, now select a virtual serial port to be monitored in the main
interface, and then select Menu/View/ Monitor, as shown in Figure 24.
Figure 32 Open Virocm monitoring
From the opened dialog box, you can see the instructions issued by the host computer and
the instructions returned by the device, as shown in Figure 25. This function can facilitate on-site
communication debugging.
