Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
OPTIONAL INSTALLATION

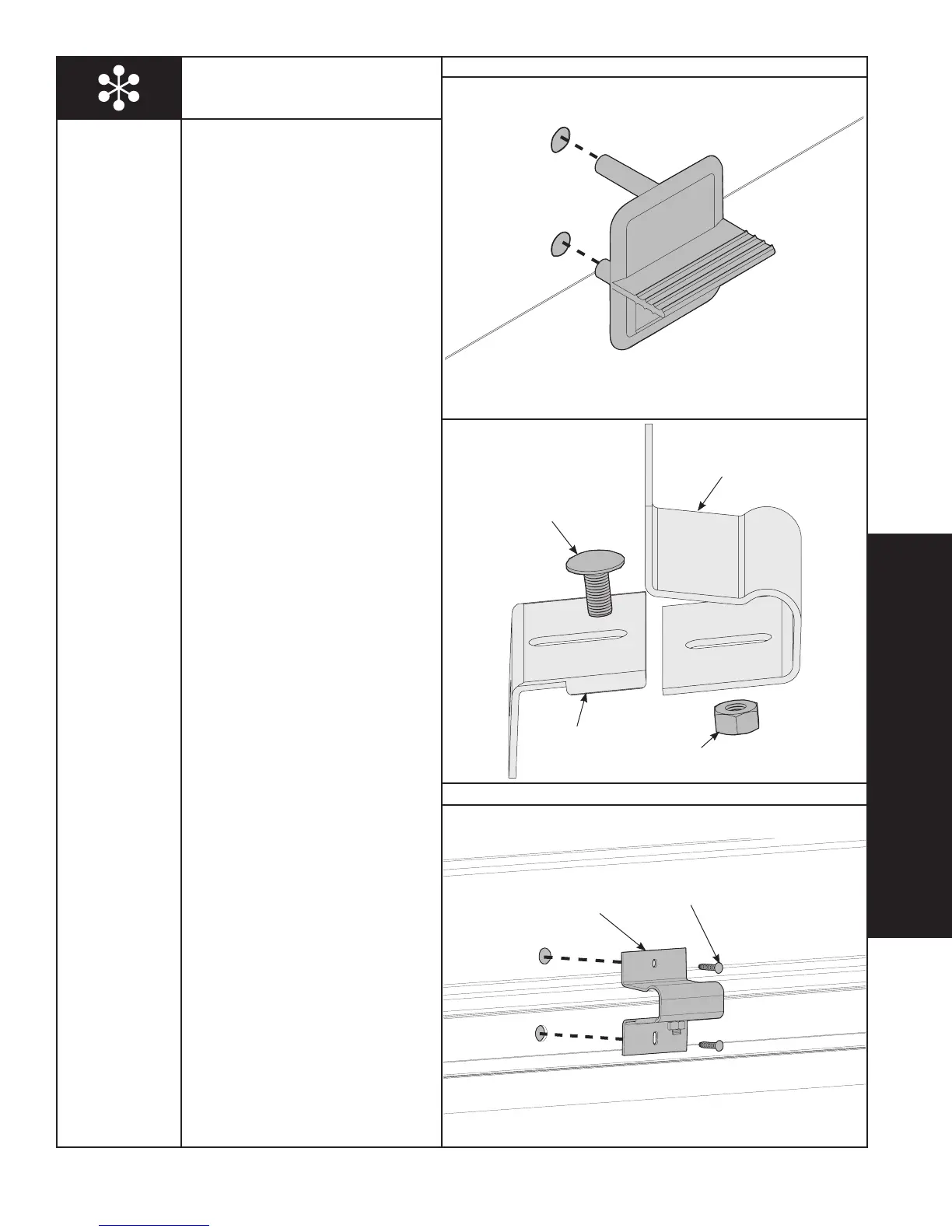

Step Plate
Make one mark 1” (25 mm) up from
the center of bottom edge of the bottom
section and another mark 2-3/16” (56
mm) up from the first mark.
Drill a 7/16” (11 mm) hole through the
section at each mark and insert the
outside step plate.
Loosely fasten step plate slide to base
with (1) 1/4” - 20 x 5/8” carriage bolt
and nut.
Align inside step plate holes and
fasten from inside using the #8 screws
provided. Install one #8 x 3/4” screw in
the bottom step plate hole. The screw in
the top hole varies with door models.
Use the screw size shown below for
your model door.
a) #8 x 3/4” screw for Model 9100
b) #8 x 1” screw Model 9600
Tighten 1/4”-20 carriage bolt and nut.
STEP PLATE OUTSIDE
STEP PLATE INSIDE
7/16” Drill Bit
Power Drill
7/16” Wrench
#8 SCREWS
ASSEMBLED
STEP PLATE
1/4” - 20 X 5/8”
CARRIAGE BOLT
HEX NUT
STEP PLATE
BASE
STEP PLATE
SLIDE
