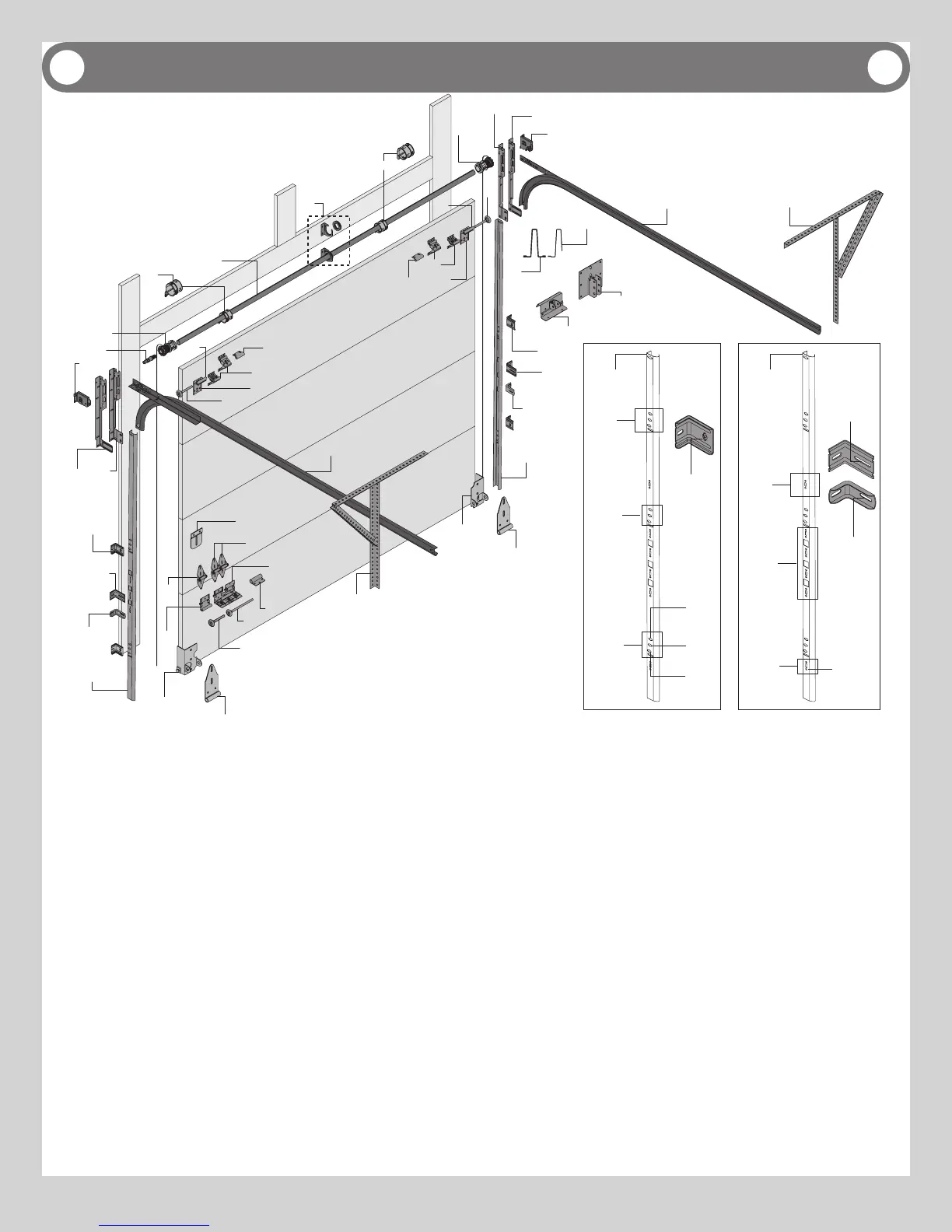

Wayne-Dalton Torquemaster 9100 - Parts Breakdown; Flag Angles; Jamb Brackets; Track Rollers

2
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer,
refer to your local yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
A. FLAG ANGLES (AS REQUIRED):
A1. Fully Adjustable (F.A.) Flag Angles
A2. Quick Install (Q.I.) Flag Angles
B. JAMB BRACKETS (AS REQUIRED):
B1. Fully Adjustable (F.A.) Jamb Brackets
B2. Quick Install (Q.I.) Jamb Brackets
B3. Windload (JB-1) Jamb Brackets
C. TRACK ROLLERS:
C1. Short Stem Track Rollers
C2. Long Stem Track Rollers
D. GRADUATED END HINGES (AS REQUIRED):
D1. Single Graduated End Hinges (S.E.H.), Anti-Pinch
D2. Single Graduated End Hinges (S.E.H.), Industry Standard
D3. Double Graduated End Hinges (D.E.H.), Anti-Pinch
D4. Double Graduated End Hinges (D.E.H.), Industry Standard
D5. Roller Slides
D6. Reinforcement Brackets
E. STACKED SECTIONS:
E1. Top Section
E2. Intermediate(s) Section
E3. Lock Section
E4. Bottom Section
F. TOP FIXTURES (AS REQUIRED):
F1. Top Fixture Bases - (L-Shaped), F2. Top Fixture Slides
F3. Top Fixture Assemblies - (A-Shaped)
F4. Top Fixture Roller Slides
G. STRUT(S) (AS REQUIRED):
G1. Strut (U-shaped)
G2. Strut (A-symmetrical)
H. DRAWBAR OPERATOR BRACKET (FOR TROLLEY OPERATED DOORS):
H1. Drawbar Operator Bracket – For Models 9600/9400/9100/5140/5120
H2. Drawbar Operator Bracket – For Models 9700/9800
I. TRACKS:
I1. Left Hand And Right Hand Horizontal Track Assemblies
I2. Left Hand And Right Hand Vertical Tracks
J. TORQUEMASTER PLUS
®
SPRING ASSEMBLY:
J1. Center Bracket Bushing Assembly
J2. TorqueMaster
®
Spring Tube (Single Or Double Springs)
J3. Left Hand End Bracket
J4. Right Hand End Bracket (Disconnect Cable Guide)
J5. Left Hand And Right Hand Cable Drum Assemblies
J6. Loose Winding Shaft (Single Spring Only)
J7. Left Hand And Right Hand Drum Wraps (As Required)
K. REAR BACK HANGS:
K1. Left Hand And Right Hand Rear Back Hang Assemblies
L. BOTTOM CORNER BRACKETS (AS REQUIRED):
L1. Left Hand And Right Hand Bottom Corner Brackets
L2. Left Hand And Right Hand Extension Brackets
A2.
A2.
A1.
B2.
B1.
B2.
B1.
A1.
C1.
C2.
C1.
C1.
D1.
D3.
D4.
E4.
E1.
E2.
E3.
F1.
F2.
F1.
F2.
G1.
G2.
H1.
I2.
I1.
I1.
I2.
K1.
K1.
J3.
J4.
J1.
J6.
J2.
Lower hole
of hole/
slot pattern
3rd
hole set
Top of vertical
track
B1. (Fully
Adjustable
Feature)
2nd
hole set
1st
hole set
B2. (Quick
Install
Feature)
3rd hole
set
Top of vertical
track
2nd
hole set
1st hole
set
Middle
hole
Bottom
hole
Top
hole
D2.
H2.
NOTE: The illustrations shown on this page are general
representations of the door parts. Each specific door
models may have unique variations.
L1.
L2.
B3
B3.
L1.
L2.
B3.
Windload
Feature
D5.
D6.
J5.
J5.
J7.
J7.
F4.
F3.
F4.
F3.
PARTS BREAKDOWN
