Wayne GPH400 User Manual

3
www.waynepumps.com
For Pump Accessories, call 1-800-237-0987
Item
No.
Part
Description
GPH400 GPH550 Qty
1 Honda Engine 57813-001 57812-001 1
2 Shaft Seal Kit 66048-WYN1 66047-WYN1 1
3 Suction Flange 42008-001 42007-001 1
4 Flapper Check Valve 37307-001 37306-001 1
5 Discharge Flange Kit 66050-WYN1 66049-WYN1 1
6 Drain/Fill Plug 28444-001 28444-001 2
7 Impeller 41021-001 41020-001 1
8 Wear Plate 72030-001 72031-001 1
9 Volute 72032-001 72033-001 1
10 Volute Seal 19051-001 19052-001 1
*11 Seal Plate (TX2) 72027-001 72029-001 1
*12 Seal Plate (WKT2) 72028-001 72034-001 1
Please provide following information:
- Model number
- Serial number (if any)
- Part description and number as shown
Address parts correspondence to:
WAYNE Water Systems
101 Production Drive
Harrison, OH 45030

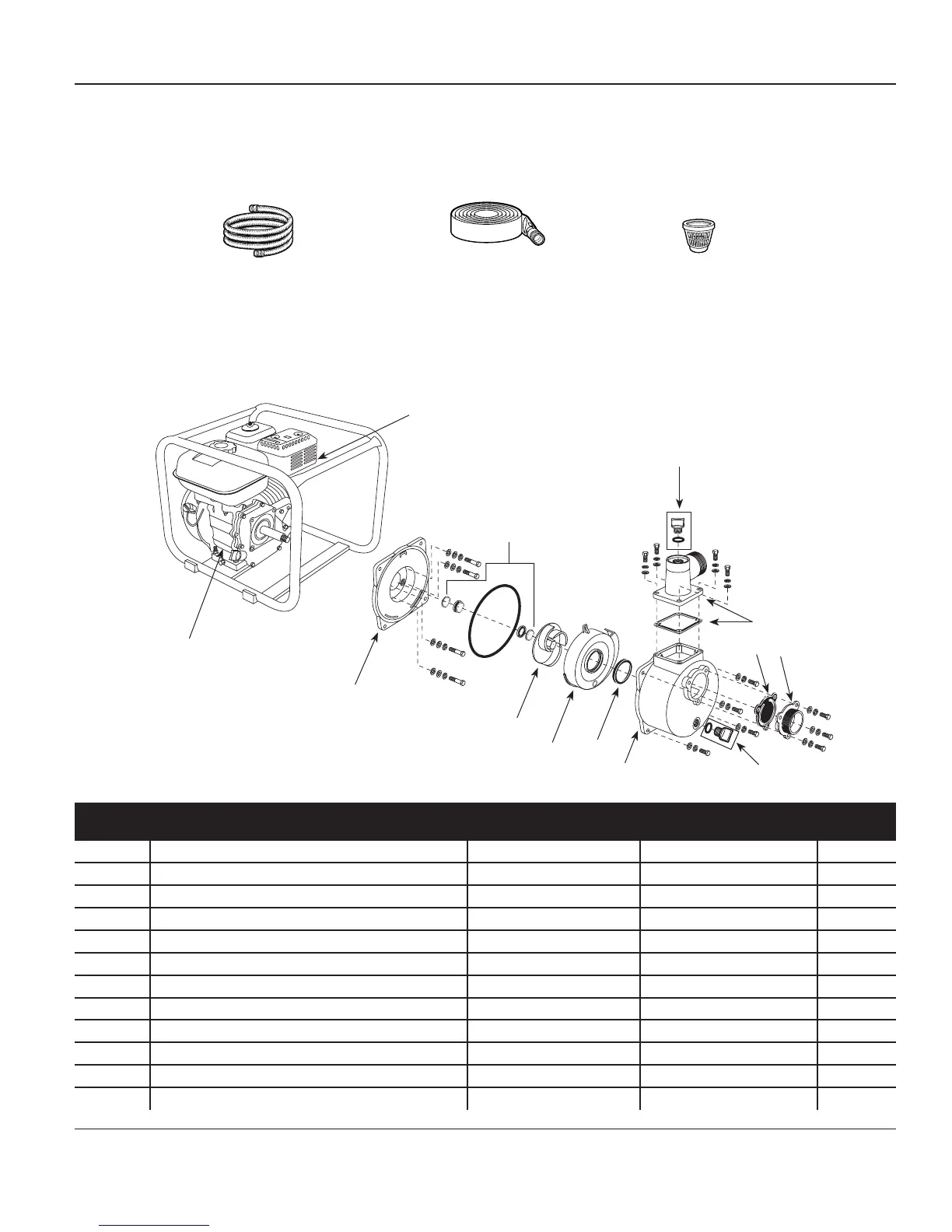

Operating Instructions and Replacement Parts List
1
2
3
5
6
7
8
9
10
11, 12
*
* (TX2) or (WKT2) is noted here. The seal plates are
unique to each number - See items 11 and 12.
6
4
SUCTION HOSE
Part #16510-002
Reinforced to prevent
collapse under suction.
Hose coupled both ends
with 2" hose thread. One
20 ft. hose per carton.
LAY FLAT DISCHARGE HOSE
PART # 16511
Economical, lightweight
and resistant to oils, light
chemicals, abrasion and
sunlight. Will not rot,
mildew or absorb water.
Hose couples one end
with 2" hose thread. One
25 ft. hose per carton.
2" SUCTION STRAINER
PART # 66036
Prevents stones, leaves
and other debris from
clogging pump.
