Wayne HS User Manual

SPECIFICATIONS
Timing:
Safe Start Check: 5 seconds (approximately)
Lockout: 15, 30 or 45 seconds (factory-programmed)
Wayne Lockout Timing: 15 seconds
Recycle: 60 seconds (fixed)
Ignition Carryover: 10 seconds (fixed)
Electrical Ratings:
Inputs:
Voltage: 102 to 132 Vac, 120 Vac nominal
Current: 100 mA plus burner motor loads
Frequency: 60 Hz.
Outputs:
Burner Relay Contacts: 120 Vac, 10 full load
amperes (FLA), 60 locked rotor amperes
(LRA)
Thermostat Current Available: 100 mA
EnviraCOM™ Current Available: 150 mA
Reduce burner FLA rating by
ignitor load. For example, if the
ignitor draws 3A (120 Vac, 360 VA), reduce the burner
motor FLA to 7A.
Typical Component Wire Color Code:
White: Neutral
Black: Line
Orange: Blower/Pump

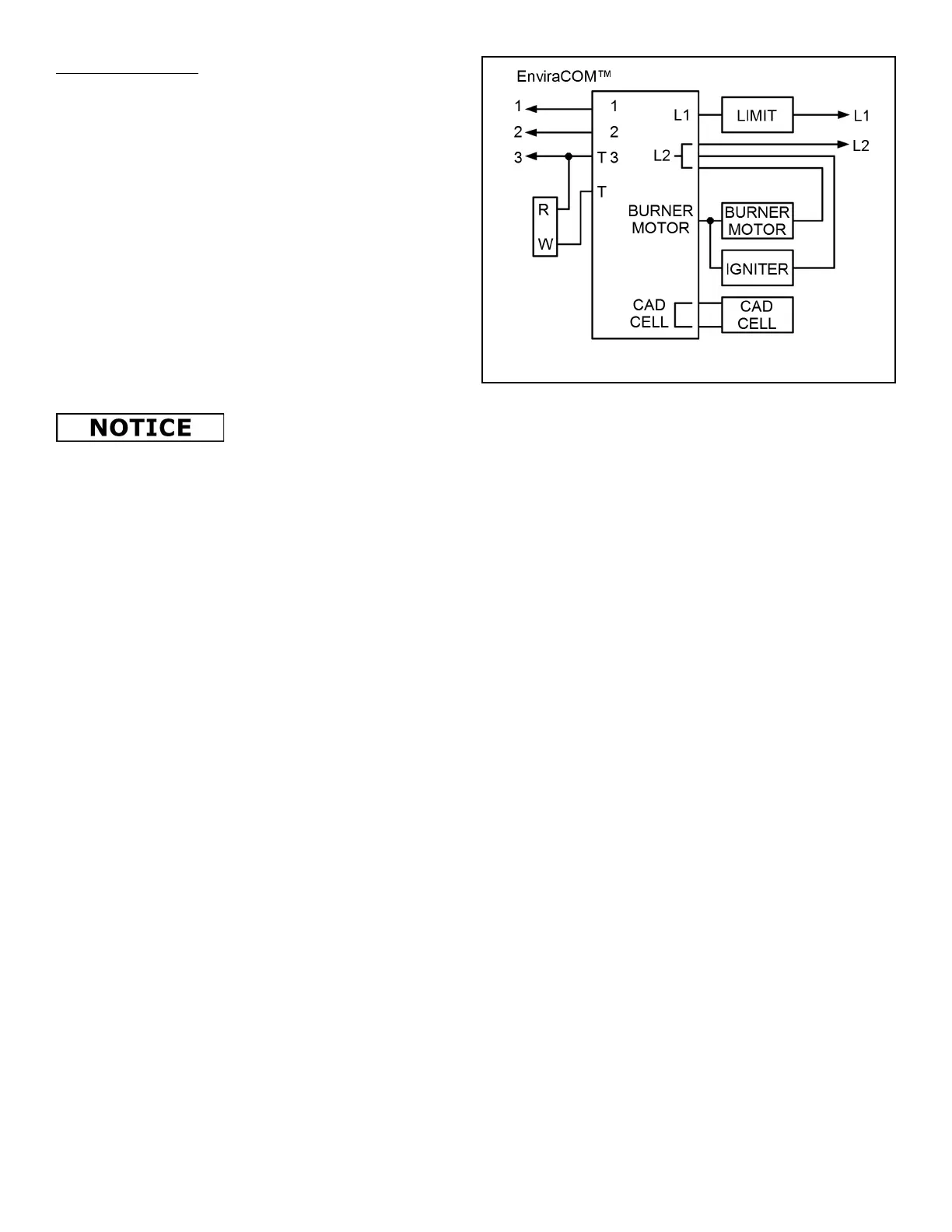

Figure 23: Oil Primary Wiring
Environmental Ratings:
Operating Ambient Temperature: -40°F to +150°F (-40°C to
+66°C)
Shipping Temperature: -20°F to +150°F (-29°C to +66°C)
Humidity: 90% relative humidity at 95°F (35°C), non-
condensing
Approvals:
Underwriters Laboratories Inc.: Recognized (File MP268).
Canadian Underwriters Laboratories Inc.
15
