The device described in the manual is the Wayne HS Oil Burner, a combustion system designed for residential oil-fired boilers, forced-air furnaces, and water heaters. It is manufactured by Wayne Combustion Systems.

Function Description

The Wayne HS Oil Burner is designed to efficiently burn heating oil to produce heat. It operates by atomizing fuel oil, mixing it with combustion air, and igniting the mixture to create a stable flame within a combustion chamber. The system includes a fuel pump, motor, ignition system, and controls to manage the combustion process. It can be used with both hydronic and forced-air heating systems. The primary control, specifically the 101343-SER Electronic Oil Primary, manages fuel oil delivery, senses flame presence, controls ignition spark (intermittent or interrupted), and signals a remote alarm circuit if a lockout occurs.

Important Technical Specifications

Firing Capacity:

BTU/HR: 70,000 – 420,000 BTU/HR
GPH (Gallons Per Hour): 0.50 – 3.00 GPH (additional hardware required for firing above 2.50 GPH)

Fuels:

No. 1 or No. 2 heating oil
Diesel
B5 blend
Kerosene
JP8 Jet Fuel
Restrictions: NEVER burn garbage, refuse, waste, crankcase oil, or gasoline.

Electrical:

Power Supply: 115V / 60Hz / 1-Phase
Motor: 3450 RPM, N.E.M.A. Flange, Auto Overload Protection
Ignition: 10,000V / 23mA secondary, Continuous Duty-Shielded Interrupted

Dimensions (Standard):

Height: 12 1½"
Width: 12 7/8"
Depth: 7 3/4"
Center Line of Tube to Floor: 7"

Fuel Pump:

Type: Suntec, single-stage 3450 RPM for single-pipe installations.
Vacuum Limits: Model "A" pump: max 6" Hg (single pipe), 12" Hg (two pipe). Model "B" pump: max 17" Hg.
Cutoff Pressure: Average 80 psig.
Inlet Line Pressure: Pressurized or gravity feed installations must not exceed 10 psi on inlet or return line at the pump to prevent shaft seal damage.

Oil Primary (101343-SER Electronic Oil Primary):

Timing:
- Safe Start Check: 5 seconds (approx.)
- Lockout: 15, 30, or 45 seconds (factory-programmed); Wayne Lockout Timing: 15 seconds
- Recycle: 60 seconds (fixed)
- Ignition Carryover: 10 seconds (fixed)
Electrical Ratings:
- Voltage: 102 to 132 Vac, 120 Vac nominal
- Current: 100 mA plus burner motor loads
- Frequency: 60 Hz
- Burner Relay Contacts: 120 Vac, 10 FLA, 60 LRA
- Thermostat Current Available: 100 mA
- EnviraCOM™ Current Available: 150 mA
Environmental Ratings:
- Operating Ambient Temperature: -40°F to +150°F (-40°C to +66°C)
- Shipping Temperature: -20°F to +150°F (-29°C to +66°C)
- Humidity: 90% relative humidity at 95°F (35°C), non-condensing
Cad Cell Resistance:
- Less than 400 Ohms (1 flash)
- 400-800 Ohms (2 flashes)
- 800-1600 Ohms (3 flashes)
- 1600-5000 Ohms (4 flashes)

Usage Features

Installation:

Requires installation by a qualified, licensed technician in accordance with NFPA No. 31 and all local codes.
Adequate space for service and maintenance must be provided.
Combustion chamber, flue gas passages, and heat absorbing surfaces must be clean and tightly sealed to prevent air infiltration and ensure efficiency.
Chimney must be properly sized and maintained; a draft regulator is recommended.
Combustion air supply must be adequate, especially in confined spaces or unusually tight constructions.
Nozzle Installation: Requires careful handling to avoid damaging the nozzle face, filter, or electrodes. Electrode settings must be precisely spaced from the nozzle face (5/16" height, 1/8" gap, 1/16" from nozzle face).
Air Cone Position Calibration: Necessary if gun assembly components have been replaced.
Wiring: Must comply with National Electric Code and local ordinances. Supports intermittent and interrupted ignition wiring.
Fuel Lines: Heavy wall copper tubing recommended. All connections must be airtight, and flared fittings are preferred. Shutoff valves and an adequate oil filter are required.
Fuel Tanks: Must comply with local codes, be free of water and sludge, and existing piping should be clean or replaced.

Starting Procedure:

Initial setup involves adjusting the primary air damper and gun assembly based on the desired GPH firing rate.
The burner is equipped with an Air Cone to fire 0.50 to 2.50 GPH.
Pump priming is necessary for new installations or after running dry.
Final Adjustments: Involves using a combustion test kit to achieve optimal CO2 and smoke levels, and checking stack temperature.
Combustion Efficiency Setting: Involves selecting the firing rate, installing the proper nozzle and baffle, adjusting the gun, and tuning the combustion damper for a yellow flame.
Final Checks: Ensures all screws are locked, and controls are adjusted per manufacturer instructions.

Safety Features:

Hazard Definitions: Clearly outlines DANGER (death, serious injury, property damage), WARNING (personal injury, property damage), and CAUTION (personal injury, property damage) notices.
Electrical Shock Hazard: High voltages present; requires proper grounding, a ground fault interrupter, turning off power before servicing, and avoiding water spray.
Overheating Hazard: Instructions for what to do if overheating occurs (shut off manual oil valve, do NOT shut off control switch to pump/blower).
Explosion Hazard: Explicitly warns against using gasoline as fuel.
Flammable Vapors: Caution against storing or using flammable vapors near the appliance.
Limited Recycle: The 101343-SER primary control limits recycle trials to three per heat call; locks out if flame is lost three times.
Limited Reset (Restricted Mode): Control can only be reset three times to limit unburned oil accumulation. Reset count returns to zero after a successful heat call.
Lockout Mode: The primary control enters lockout mode under specific conditions (e.g., flame detected during valve-on delay, no flame during Trial for Ignition, flame lost three times, flame detected during burner motor-off delay).

Maintenance Features

Scheduled Maintenance (Annual Recommendation):

Oiling Motor: Sleeve bearing motors require 6 drops of SAE 20 oil once a year; ball-bearing motors do not require oiling.
Oil Filter: Replace the cartridge once a year to prevent contamination and clogging of the fuel pump and nozzle.
Nozzle: Change the nozzle at least once a year before the heating season. Handle carefully to avoid contamination or damage to the spray pattern.
Fan & Blower Housing: Keep clean of dirt and lint. Check fan blades from above by opening the transformer and off-cycle damper.
Electrode Settings: Check annually for proper spacing and replace if worn, oil-soaked, or cracked. Ensure electric power is off before inspection.
Blower Wheel Replacement: If replaced, the spacing between the blower and motor must be 9/64" (0.140") to ensure proper function.

Diagnostic Features:

Diagnostic LED: The 101343-SER primary control has an LED that indicates:
- On: Flame present
- Off: No flame
- Two seconds on, two seconds off: Recycle
- 1/2 second on, 1/2 second off: Lockout
Cad Cell Resistance Check: Can be checked without an ohmmeter by pressing and releasing the reset button during run mode; the resulting LED flashes indicate resistance levels.
Data Port: Allows for networking and adding upgrade modules.
Pump Priming Cycle: A routine to purge air from oil lines and filters, initiated by pressing the reset button within 15 seconds of motor start. Extends lockout timing to four minutes for this cycle.

Parts and Service:

Replacement parts should be manufacturer-recommended.
When ordering parts or communicating, specify burner model and serial numbers.
A "Burner / Appliance Service Log" is provided for recording service dates, contractor licenses, and actions performed.
Limited Warranty: Covers defects in material and workmanship for 36 months from the date of manufacture for oil burners (18 months for gas burners). Requires proper installation by a qualified technician. Warranty covers repair or replacement of defective components at Wayne's option but excludes labor costs.

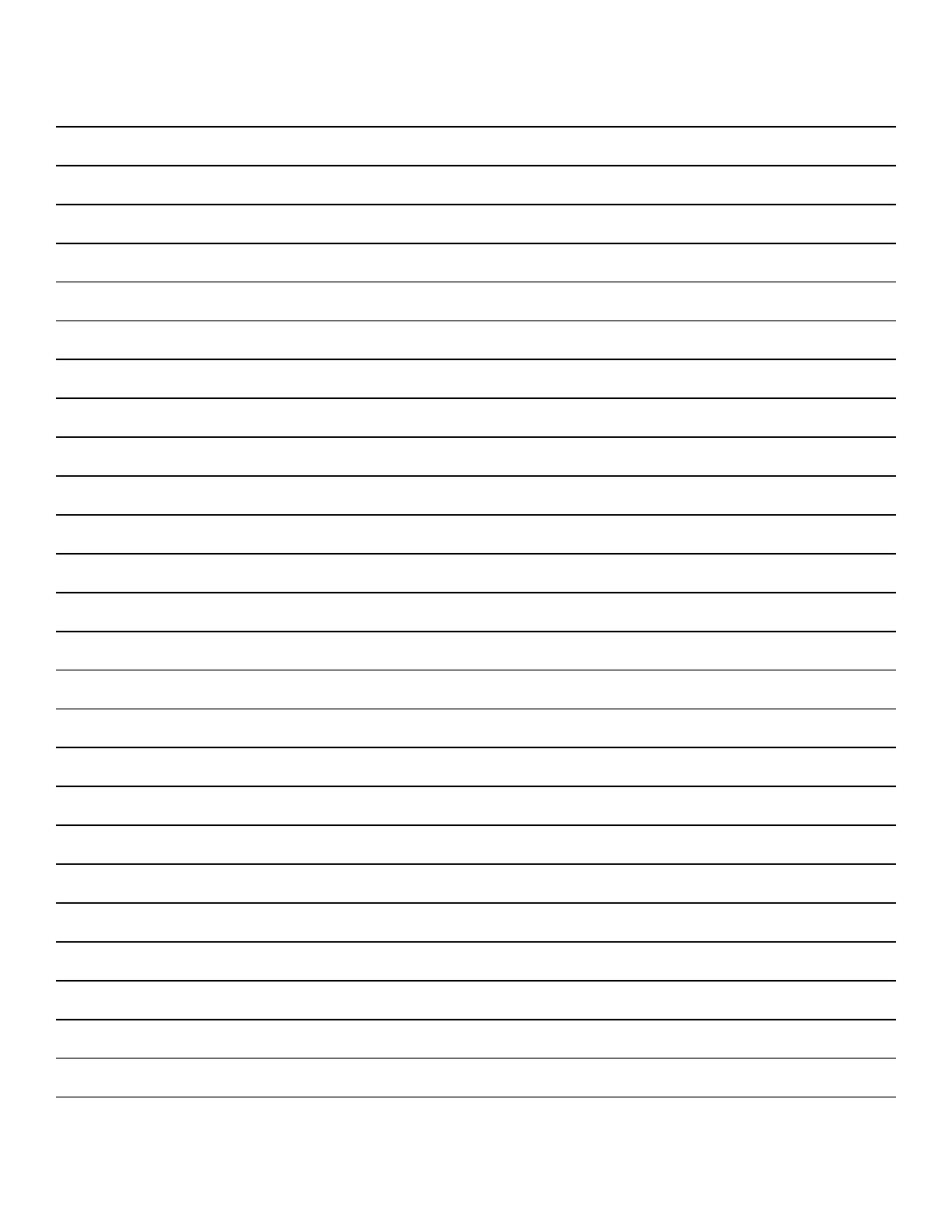

Wayne HS - Notes
