42
HSG WIRING DIAGRAMS
HSG SERIES BURNER WITH WAYNE 64420-001 IGNITION CONTROL

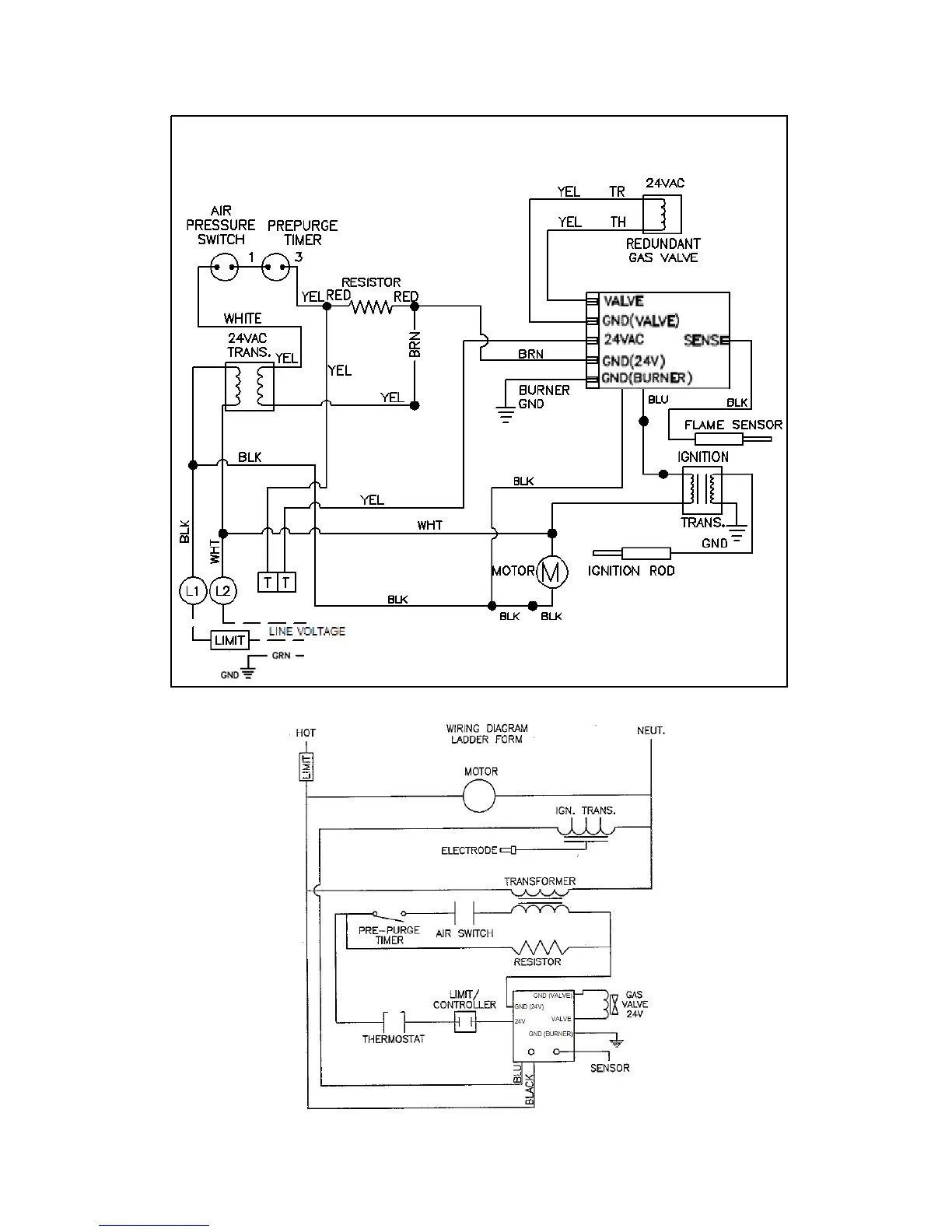

Figure 25: Wiring Diagram for Burners with Wayne 64420-001 Control
