Wayne HSG200 - Hsg Exploded Views

47
HSG200/400 PARTS LIST CONT.
Item
Part No.
Description
32
62909-001
8" (203.2mm) Ignition Wire - S89E & S89F controls only; 6", 6 1/4" Burner
62909-003
14" (355.6mm) Ignition Wire- S89E & S89F controls only; 9”, 12", 15" Burner
64095-001
Ignition Wire - 500mm Cable (230V 50/60Hz) Use with 64051-001 Ignition Transformer
64460-001
8” Noise Suppression Ignition Wire, Use with Wayne controls; 6", 6 1/4" Burner
64460-002
14” Noise Suppression Ignition Wire, Use with Wayne control; 9", 12", 15" Burner
33
62404-002
Top Plate/Housing Cover
34
62304
Strain Relief Bushing/Ignition Wire
62402-KIT
Includes items 35 - 38
35
62402-001
Orifice Housing
36
62410-001
Orifice Spring
37
62401-001
Orifice Gasket
38
62385-001
Orifice Cap
39
----------------
Orifice (Location Reference Only) See Item 41
40
62374-004
Gas Valve Honeywell VR8305M 4801
41
62459-001
Orifice Package -HSG200 (not shown)
62459-002
Orifice Package -HSG400 (not shown)
42
21760-011
Option Pedestal Mounting (not shown)
43
64635-001
Mounting Plate, Wayne Control
HSG EXPLODED VIEWS

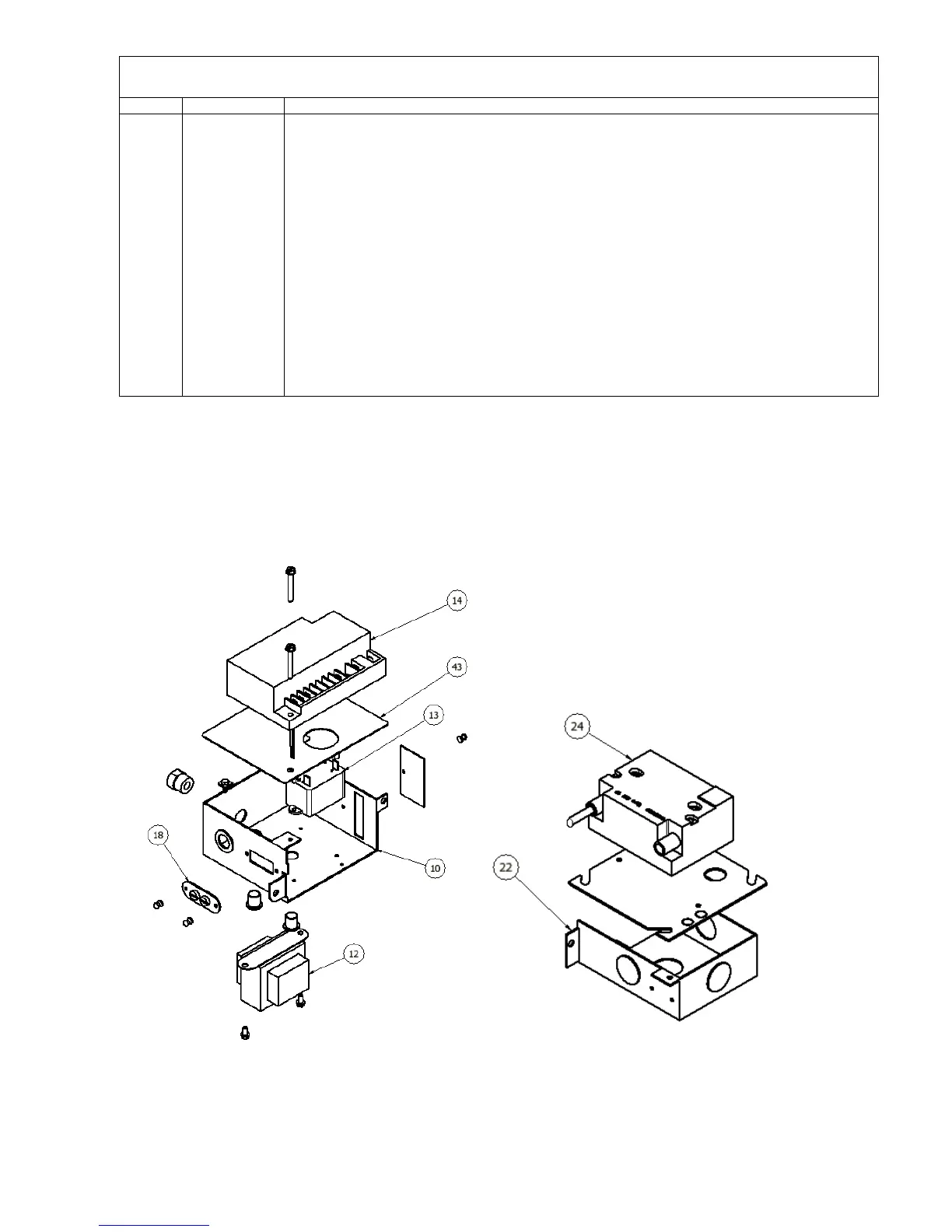

Figure 29: Junction Box Assemblies Exploded
