Wayne MSR-DC - Burner Components - Model MSR-DC

12

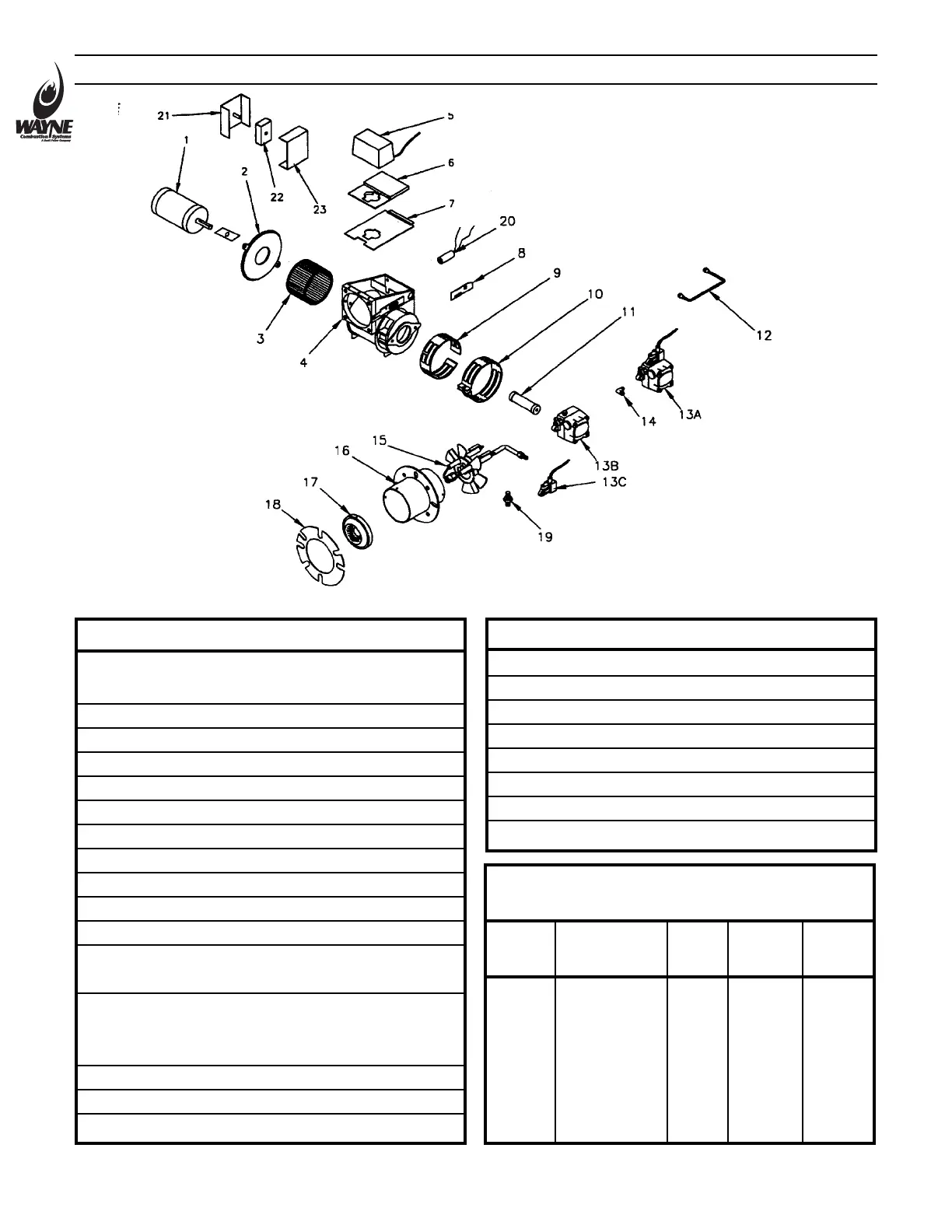

BURNER COMPONENTS - MODEL MSR-DC
STATE BURNER MODEL, PART DESCRIPTION AND
PART NUMBER WHEN ORDERING PARTS
NOTE: WHEN ORDERING STATE BURNER MODEL MSR, SPEC#, WHAT USABLE AIR TUBE LENGTH, AND FIRING RATE.
17 AIR CONE - #3A 14157
AIR CONE - #4A 14160
18 GASKET 12484
19 CONNECTOR (USE WITH 13B, 13C) 14222
20 CAD CELL 14289
21 CONTROL BOX 63355-001
22 TIMER, DROP OUT 100889-002
23 COVER, CONTROL BOX 62899
NO. DESCRIPTION PART NO.
1 MOTOR 1/8 STANDARD 21993-005
MOTOR 1/8 LOW AMP 21993-006
2 MOTOR ADAPTOR 100761-001
3 BLOWER WHEEL 3 1/2 X 4 1/4 21427
4 BURNER HOUSING SEE NOTE
5 IGNITOR-12VDC 31812-003
6 MOUNTING BASE 100730-001
7 HOUSING COVER 21723-002
8 SLOT COVER PLATE 13392
9 INNER AIR BAND 20601-002
10 OUTER AIR BAND 20602-002
11 COUPLING 101119-001
12 OIL LINE ASSEMBLY 6” 14451
OIL LINE ASSEMBLY 8” 14452
13A FUEL UNIT: SUNTEC COMBO 101128-005
13B FUEL UNIT: SUNTEC 13495
13C FUEL SOLENOID 100610-005
14 ELBOW (USE WITH 13A) 13494
15 GUN ASSEMBLY SEE NOTE
16 AIR TUBE/FLANGE ASM SEE NOTE
NO. DESCRIPTION PART NO.
Suggested Combustion Chamber Dimensions
Conversion or Upgrading
Chamber Dimensions (In Inches)
Firing
Rate
(G.H.P)
Square
Width Length
Round Height Floor
to
Nozzle
0.85 8.5 8.5 8.5 8.5 8.5
1.00 9 9 10
1
⁄8 12
1
⁄2 5-6
1.25 10 10 11
1
⁄4 12
1
⁄2 5-6
1.35 10
1
⁄2 10
1
⁄2 11
3
⁄4 12
3
⁄4 5-6
1.50 11 11 12
3
⁄8 13 5-6
1.65 11
1
⁄2 11
1
⁄2 13 13
1
⁄4 5-6
2.00 12
5
⁄8 12
5
⁄8 14
1
⁄4 13
1
⁄2 6-7
2.50 14
1
⁄4 14
1
⁄4 16 14 7-8
3.00 15
1
⁄2 15
1
⁄2 17
1
⁄2 15 7-8
