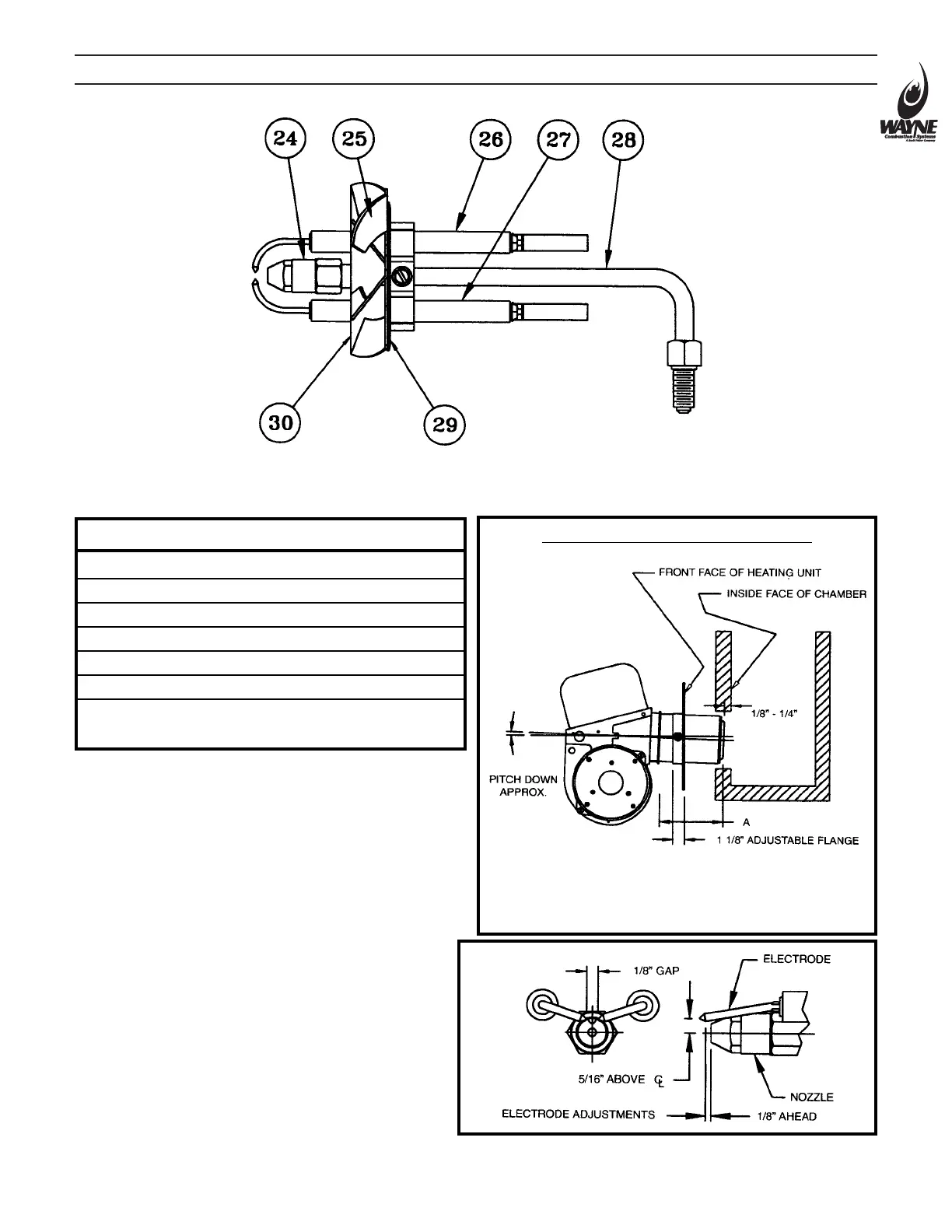

AIR TUBE & GUN ASSEMBLY DETAILS MODEL MSR-DC
TO DETERMINE THE AIR TUBE LENGTH
NOTE: WHEN ORDERING STATE BURNER MODEL MSR, SPEC #, PART DESCRIPTION, AIR TUBE
COMBINATION, WHAT USABLE AIR TUBE LENGTH, (DIMENSION A), AND FIRING RATE.
THE AIR TUBE LENGTH (DIM A) IS THE DISTANCE FROM THE FRONT
OF AIR TUBE RETAINER FLANGE TO FACE OF AIR CONE.
NOTE ADJUSTABLE FLANGE WIDTH.
NO. DESCRIPTION PART NO.
24 ADAPTOR, NOZZLE SUPPORT 21913-001
25 ELECTRODE SUPPORT ASM SEE NOTE
26 ELECTRODE (RH) SEE NOTE
27 ELECTRODE (LH) SEE NOTE
28 OIL PIPE/FITTING SEE NOTE
29 DISC/BAFFLE PLATE SEE NOTE
30 CAST STABILIZER 21408-SER
STAMPED STABILIZER 100704-001
