920749 Rev G 7/2014 35

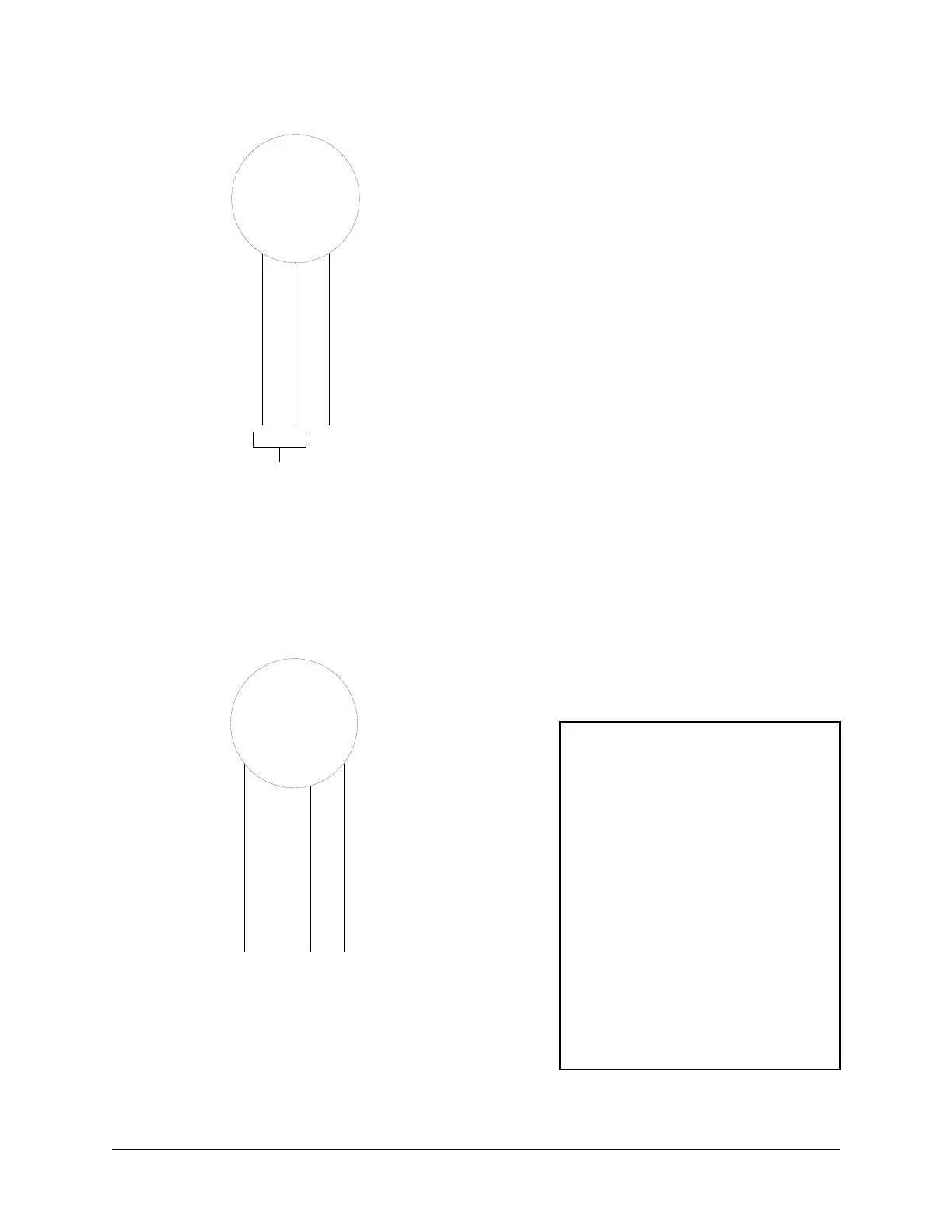

Wiring Diagram: 10:1 Reed Pulser Option
10:1
Reed
Pulser
Earth Ground
Contact
Closure
Green
Black
Black
Wiring Diagram: 100:1 Electronic Pulser Option
+12 Power
DC Ground
Pulse
Green
Red
White
Black
Earth Ground
100:1
Electronic
Pulser
Pulser Wiring Notes:
1. All equipment to be installed in
accordance with all applicable local,
state, and federal codes, including,
but not limited to, the National
Electrical Code (NFPA 70), NFPA
30, and the Automotive and Marine
Service Station Code (NFPA 30A).
2. Use 18 AWG stranded wires rated
at least 90ºC, 600V, Gas & Oil
Resistant.
3. Reference the installation
instructions of the fuel management
system manufacturer regarding the
ability to run the DC wires with AC
wires and the necessary wire
specifications (shielding, etc.)
