Wayne SWS50-8.5FX - Page 5

Operating Instructions and Parts Manual
5
www.waynepumps.com
SWS50-8.5FX

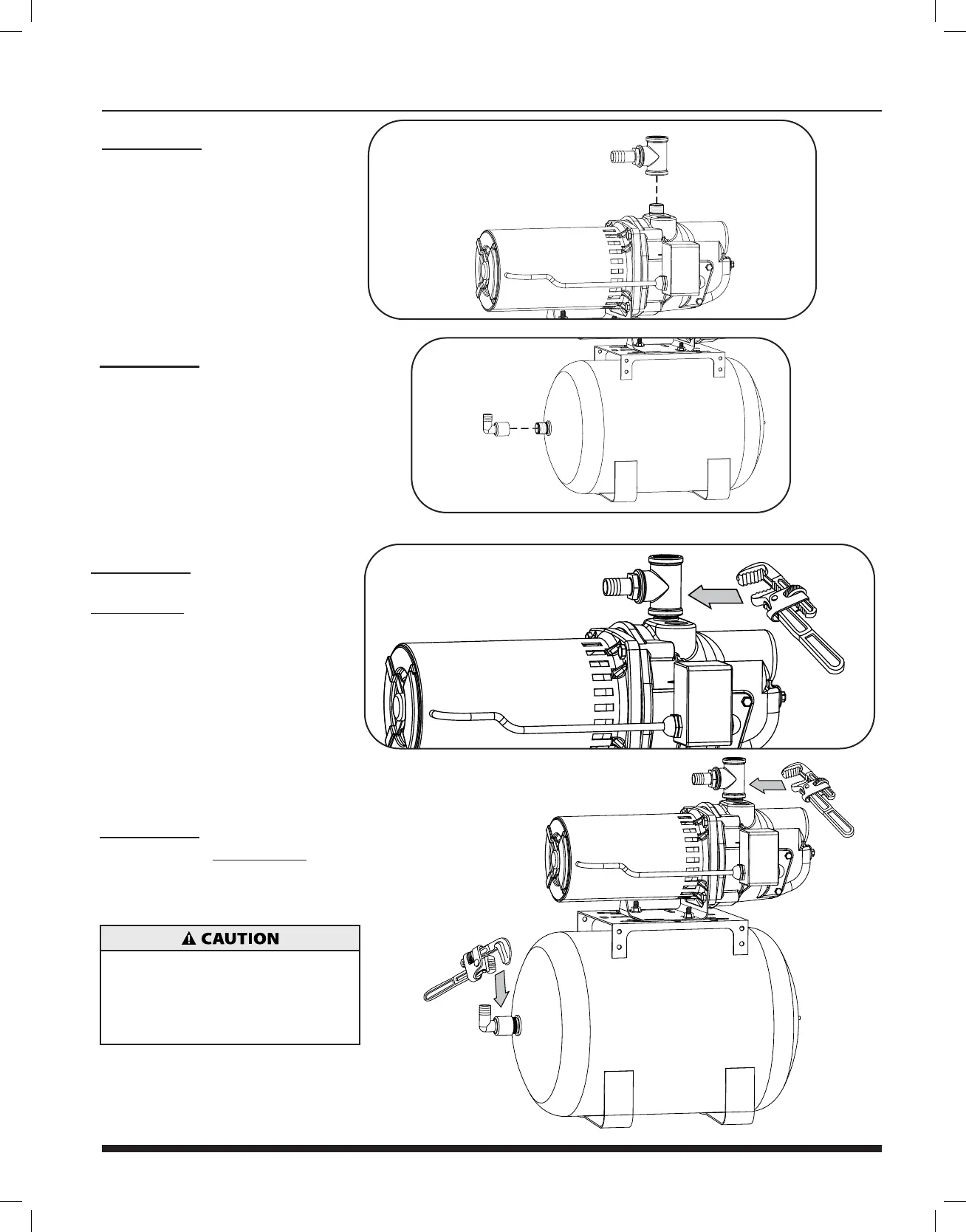

Step 5:
Screw pipe tee onto pipe nipple.
Hand tighten.
All connections will be fully tightened
in steps 7 & 8.
Step 6:
Remove protective cover from tank’s outlet/
inlet, then screw hose-barb elbow onto
tank.
Hand tighten.
All connections will be fully tightened in
steps 7 & 8.
HOSE-BARB
ELBOW
Step 7:
With a pipe wrench, tighten pipe tee
1 to 1-1/2 turns, aligning hose-barb with
pump as shown. (Make sure pipe tee and
nipple are tight to prevent leakage.)
Step 8:
Tighten hose-barb 1 to 1-1/2 turns. Make
sure the hose-barb points toward the top of
the tank when tight.
Do NOT overtighten hose-barb elbow.
Some hose-barb elbows are made of
plastic, and overtightening may cause
damage.
