Step 9:
NOTE: Lubricate the hose-barb and the inside
of the hose with clean water or a small amount
of liquid dish soap as needed.

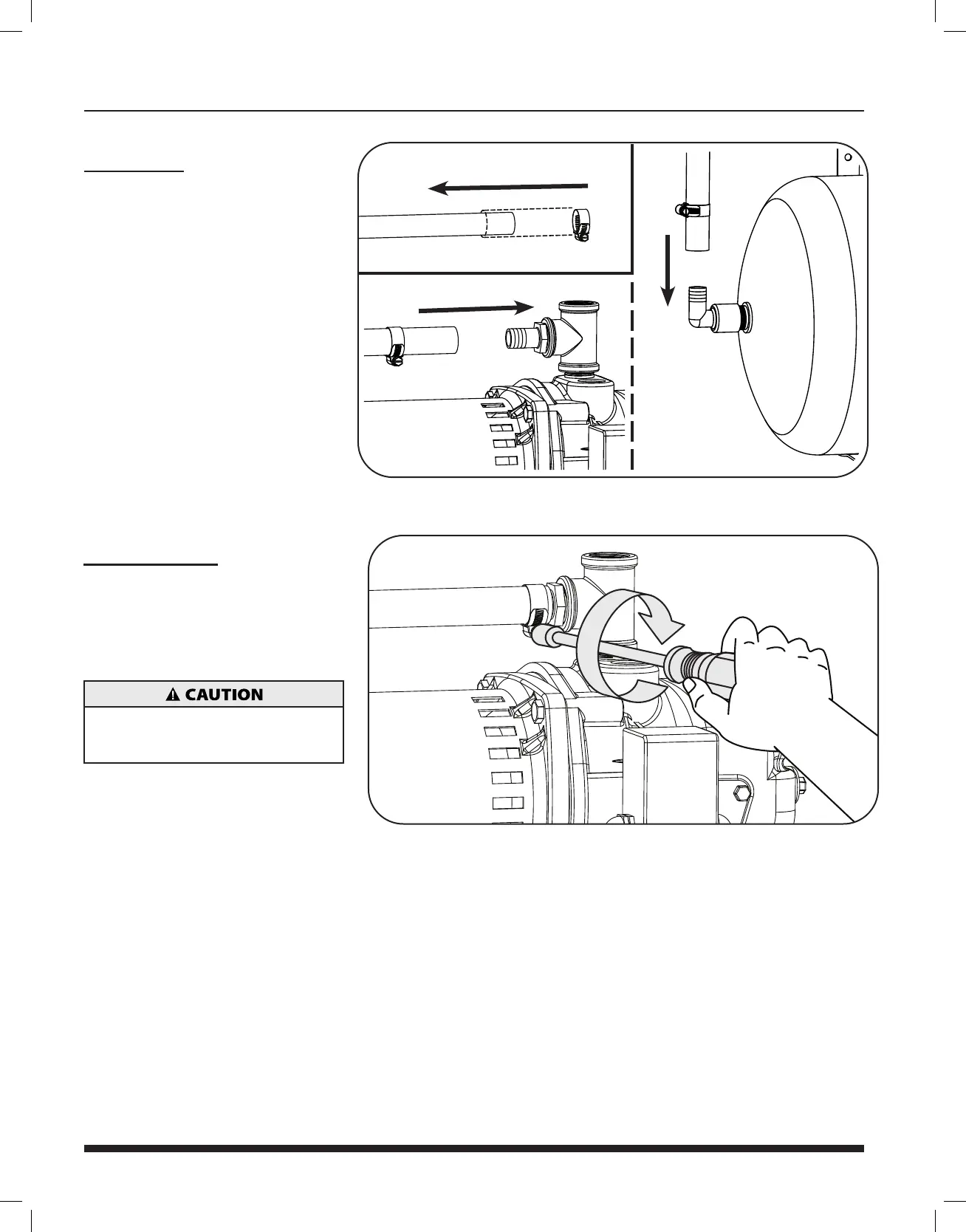

A Slip the hose clamps over the ends of
the hose.
B Attach the hose (with clamps) to the
hose-barb using a twisting motion
on the hose while pushing it over the
hose-barb.
A
B
Tighten the hose clamps on the hose over
the hose-barb fittings. If a leak is detected
after system is installed, tighten hose
clamps just enough to stop the leak.
Do NOT overtighten hose clamps. Do NOT
exceed 40 in.– lbs. of torque.
B
