Operating Instructions and Parts Manual
6
www.waynepumps.com
TROUBLESHOOTING CHART
Symptom Possible Cause(s) Corrective Action
Pump will not
start or run
1. Blown fuse or breaker
2. Low supply voltage
3. Worn motor
4. Impeller not rotating
5. Thermal protector open
1. If blwon, replace with the proper sized fust or reset the breaker
2. If voltage is under 108 volts, check wiring size
3. Replace pump
4. If impeller will not turn, disconnect pump from power source,
remove volute cover and remove blockage
5a. Water temperature is too high, move to cooler water
b. Inlet clogged, remove debris
c. Motor seized, replace pump
Pump starts but
delivers little or
no flow
1. Inlet screen clogged
2. Low suppl yvoltage
3. Restriction in discharge hose
4. Discharge lift too high
1. Clean debris from screen
2. If voltage is under 108 volts, check wiring size
3. Unwind garden hose, remove any kinks or restrictions in hose
4. Water level to end of garden hose is 25 ft. or greater
MAINTENANCE INSTRUCTIONS (CONT’D)
1. Keep pump inlet clean and free of all foreign objects.
Inspect inlet at beginning of each use.
2. The motor housing is permanently sealed and requires
no service. Disassembly of the motor housing or
alteration of the power cord could result in fatal electrical
shock.

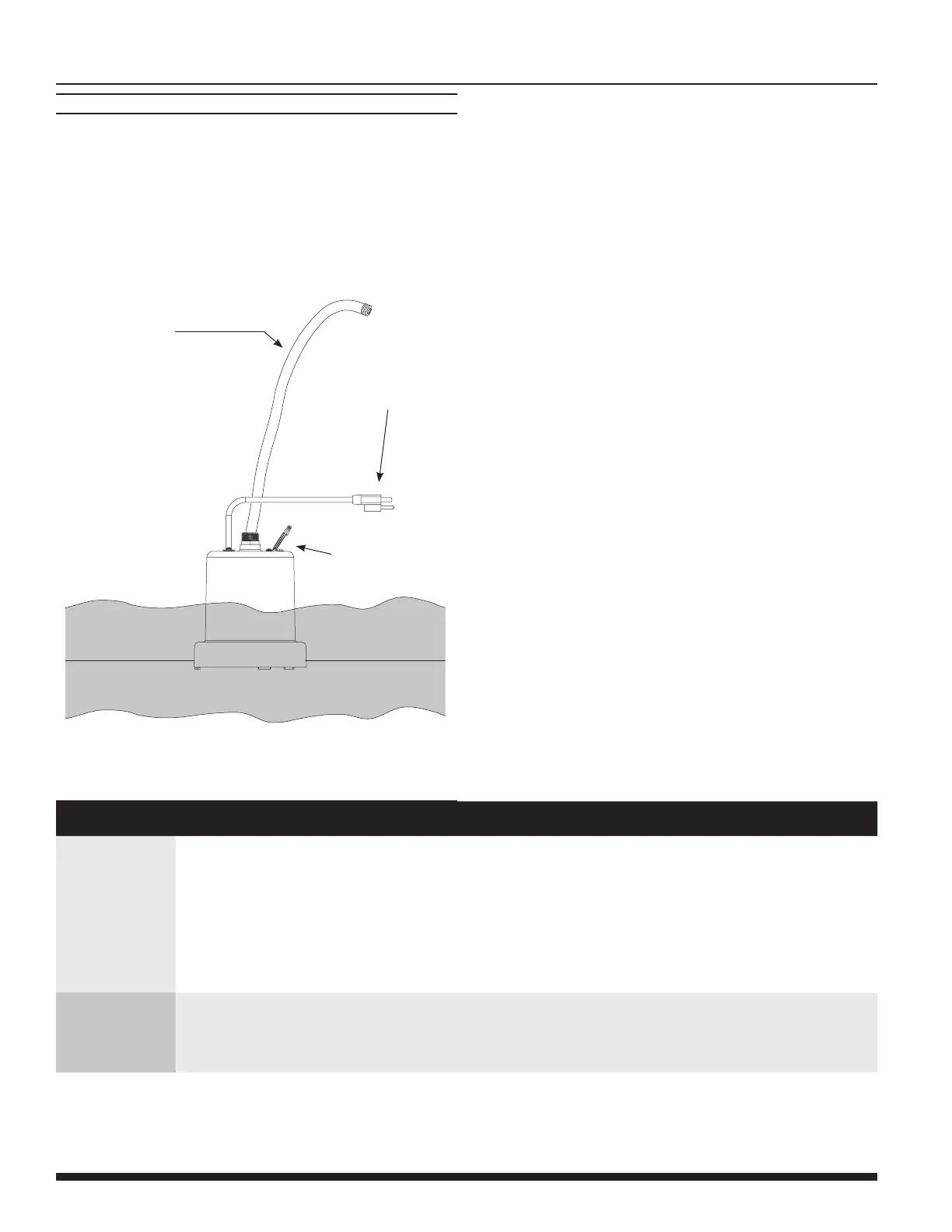

GARDEN HOSE
* a 3/4 in. diameter or greater
garden hose must be used
ELECTRIC CORD
CARRYING
HANDLE
