VW Passat
Timer Installation
CAUTION
Check behind panels for obstructions before drilling
holes.
ATTENTION
Before installing the timer, please confirm the
installation location with the customer.

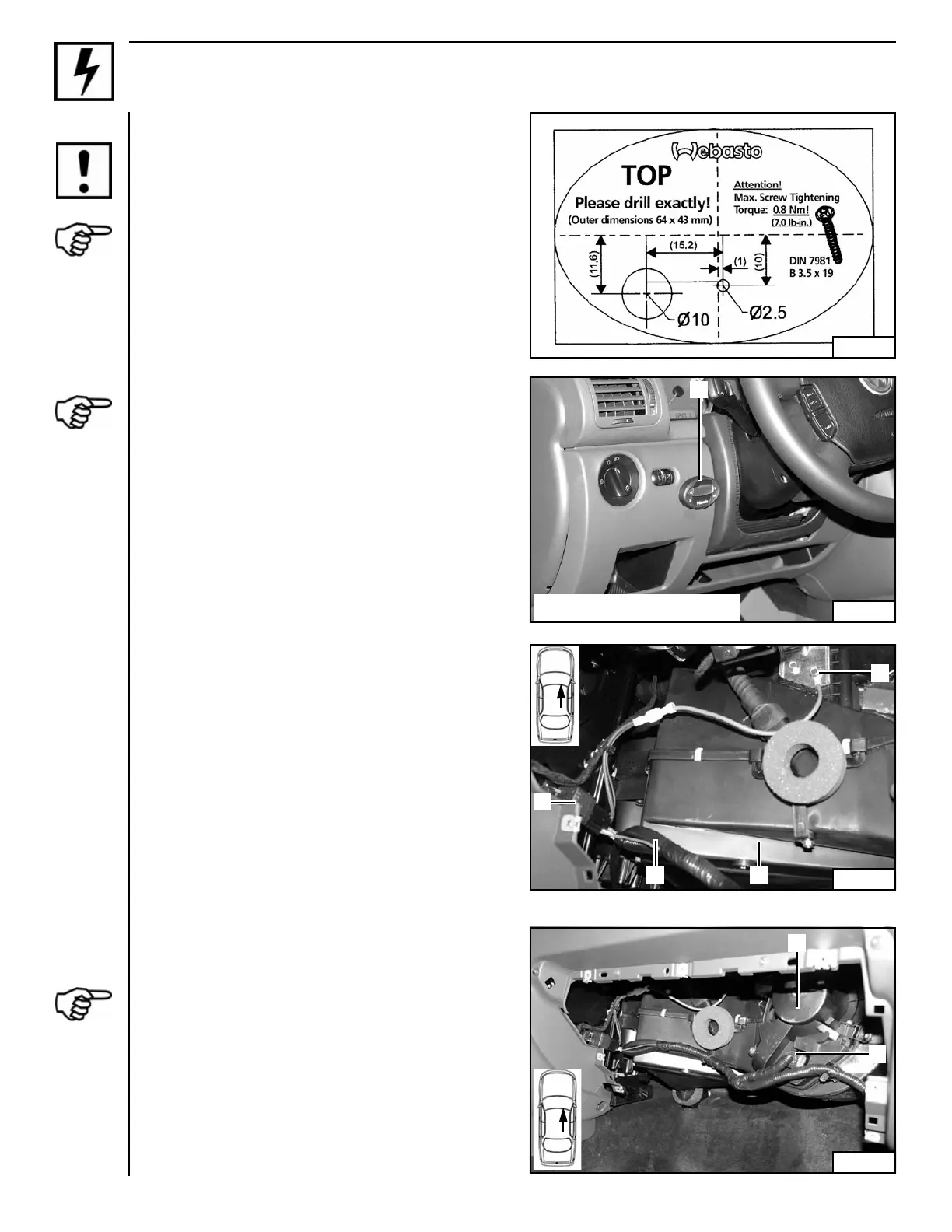

Affix supplied template to panel. Drill 10 mm (25/64
in.) and 2.5 mm (3/32 in.) holes where indicated on
template. Figure 6 shows a translated sample of the
template supplied.
ATTENTION
Before installing the timer, please confirm the
installation location with the customer.
– (1) Timer
Integration into the blower System
Route positive-side blower harness over to blower
motor area.
Mount negative-side blower harness and relay in
vicinity of HVAC blower.
– (1) Chassis ground
– (2) Vehicle blower motor area (passenger interior)
– (3) Positive-side blower harness
– (4) Relay K-3 of negative-side harness
HVAC Blower Motor Location
ATTENTION
The blower motor is located under the dash on the
passenger side of the vehicle.
– (1) HVAC blower motor
– (2) HVAC blower motor connector
Fig. 6
Fig. 7
1
Example of Timer Mounting
Fig. 8
3
1
4
2
1
Fig. 9
2
