Thermo Top C, E Peugeot 307
22
8 Hz 1.4 l diesel and 9 Hz 1.6 l diesel

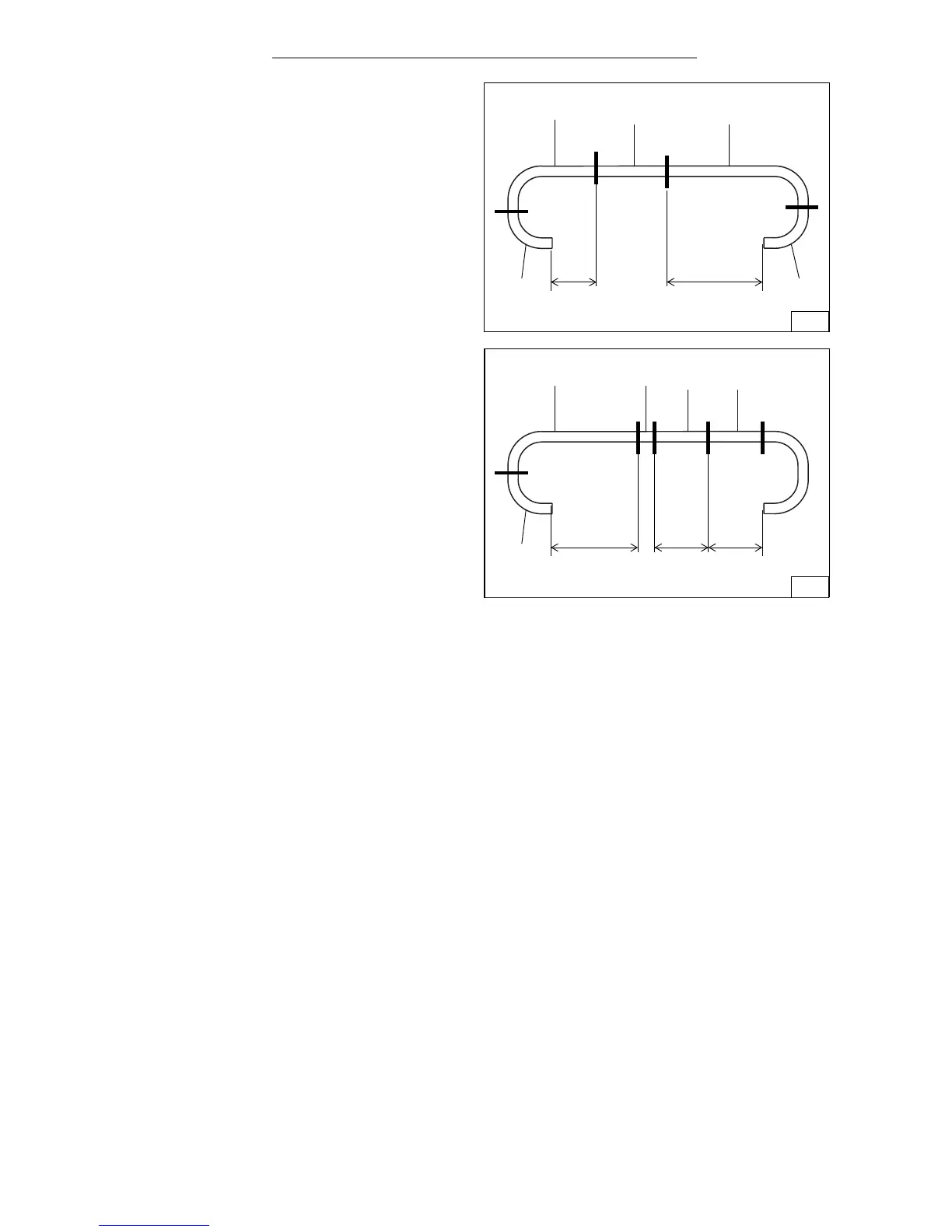

- Cut the supplied water hose into two sections, as
shown:
1 x 80 mm + 90° bend (1)
(preassembled on the heater unit)
1 x 1,200 mm + 90° bend (2)
(from the 80mm long water hose (1) to the 350mm
long water hose (41/2)).
- Cut the water hose supplied in the kit into three
sections, as shown:
1 x 1,150 mm + 90° bend (1)
(from the heater unit water inlet to the 450mm long
water hose (3)).
1 x 350 mm straight (2)
(from the 1200 mm long water hose (40/2) to the
original vehicle water hose / heat exchanger water
inlet).
1 x 450 mm straight (3)
(from the 1,150mm long water hose (1) to the
enclosed 180° bend (Ø = 18)).
1 x 180° bend enclosed (Ø 18)
(from the 450mm long straight water hose (3) to the
original vehicle water hose / engine exhaust).
80
40
Section
1200
Section
Section
21
450
31
1150
41
Section
350
2
Section
