Thermo Top C, E Peugeot 307
8
Installation with automatic air
conditioning

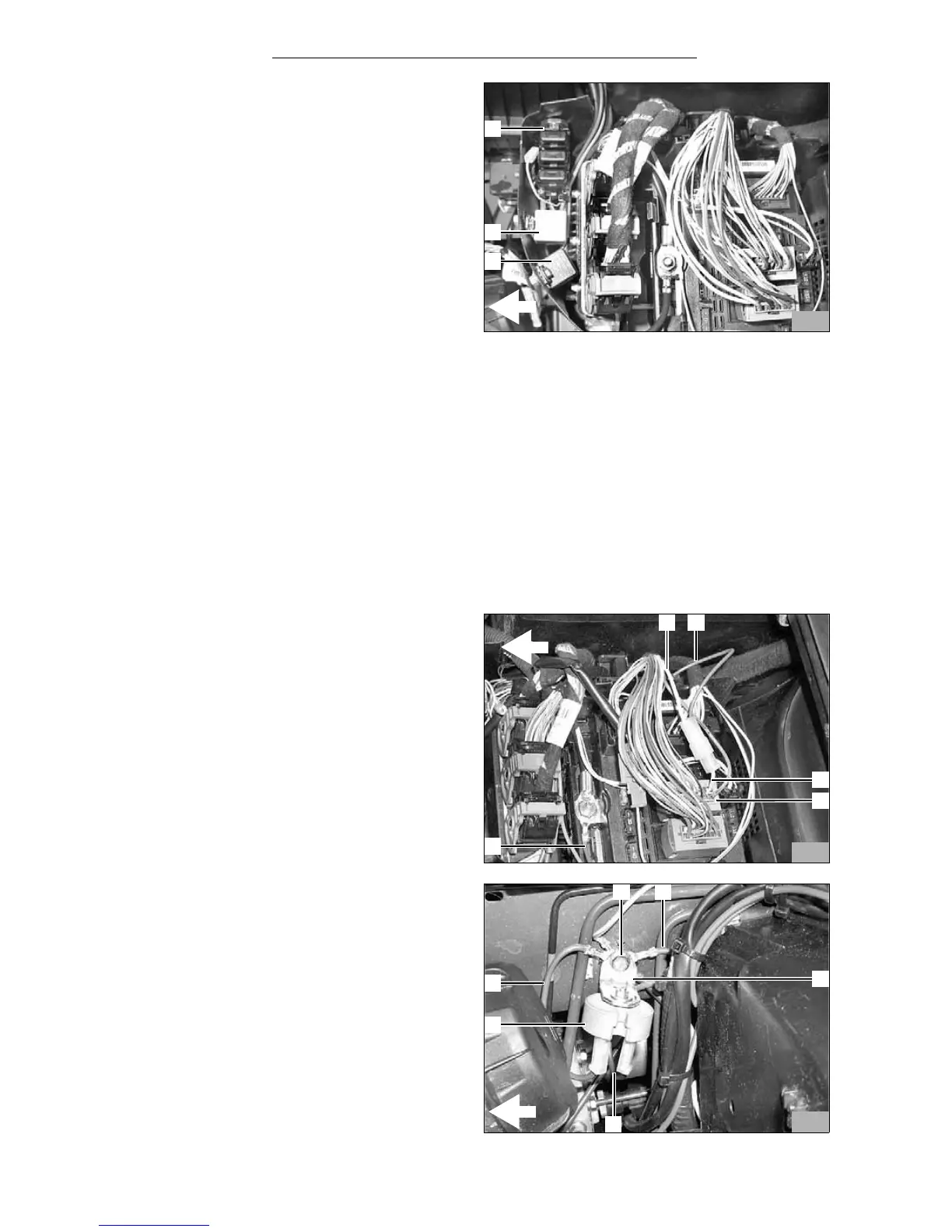

The installation location is the fuse and relay box to
the left of the air filter.
NOTE:
Pay attention to the free movement of the housing
cover.
Remove any reinforcements in the relay box near the
fastening points for the blower relay and the fuse
holder.
WARNING:
When drilling, watch out for underlying components
and wires.
- Bore 3 holes of Ø 5.5 mm in the fuse and relay box.
- Fasten the fuses (1), K3 blower relay (2) and K3.1
supplementary relay (3) with 3 M5x12 bolts, 6
washers, and 3 M5 flanged nuts as shown.
- Connect according to illustration 4 in the circuit
diagram.
- Connect the positive wires (5) to the positive
terminal in the fuse and relay box.
- Separate the white wire (1,3) from the ignition as
shown in figure 9 about 50 mm before the connector
16VGR (4) pin 9.
- Crimp in the red wire (2) from the supplementary
relay K3.1 terminal 86, together with the white wire
(1) into the blade receptacles.
- Crimp the white wire (3) in the flat connector.
- Slide on the housing and connect the flat connector
and the blade receptacles.
WARNING:
This resistor will be hot!
Ensure sufficient distance from adjacent components.
- Run the grounding line from the heater unit (2) and
the brown wire 2.5 mm
2
(4) from the relay K3.1/87a
to the original vehicle grounding point (1).
- Fasten the grounding line from the heater unit (2)
and the cut 100mm brown wire (6) with 6 mm cable
socket together with the bracket (3) to the original
vehicle grounding point (1).
- Secure the resistor (5) with the bolt M5x20, washer
and nut to the bracket (3).
- Connect the brown 2.5 mm
2
wire (4) from the relay
K3.1/87a and the brown 100 mm long wire (6) from
the grounding point to the resistor.
5
1
2
3
6
5
1 2
3
4
7
2
6
5
1
4
3
