18
Step 16
Install the lid
You will need: lid, two hinge pins and two hair pin cotters.
Set the lid in place. Align the hinges at the rear of the
barbecue. Insert hinge pins from the outside. Insert hair pin
cotters into the small holes in the hinge pins. Figure 21.

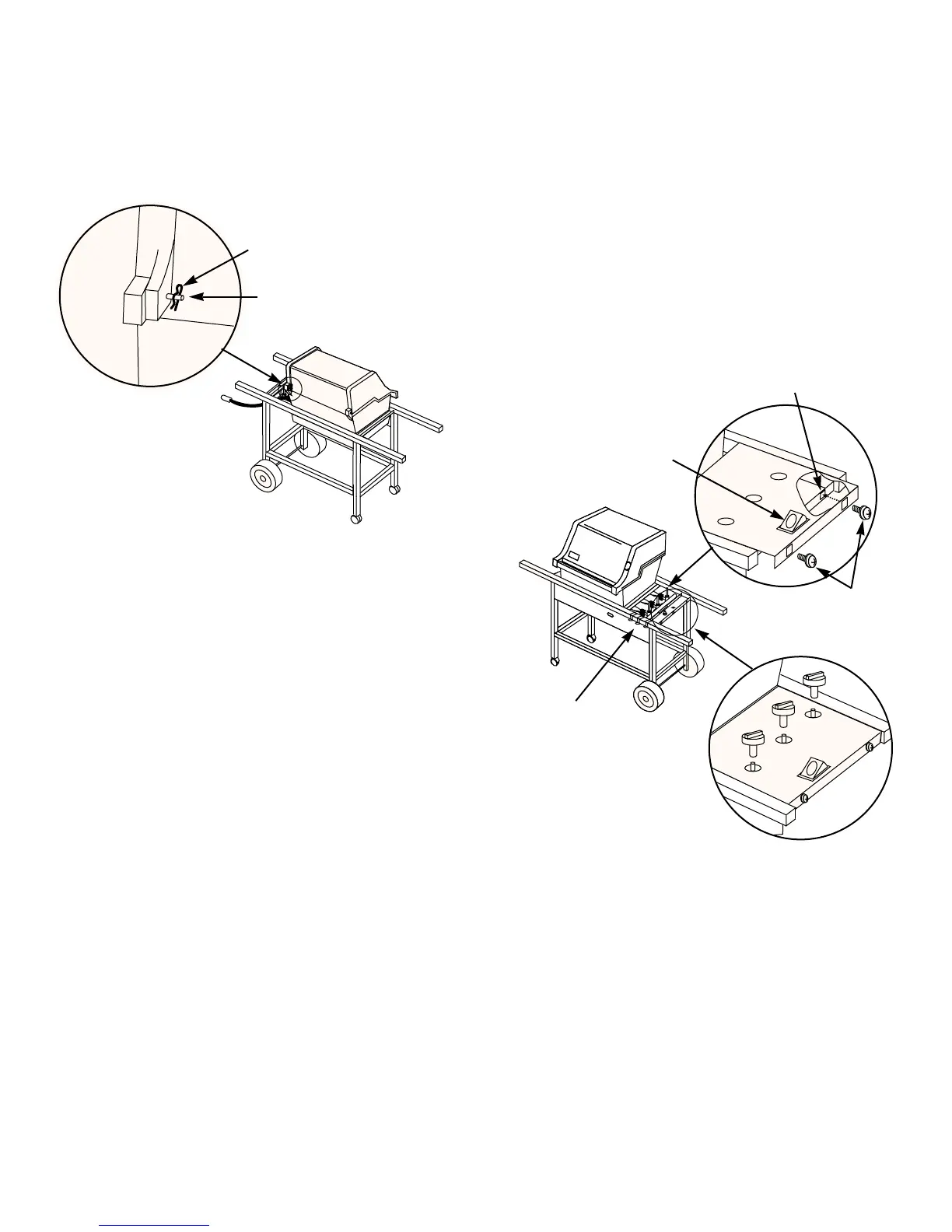

Figure 21
Hair pin cotter
Hinge pin
Step 17
Install tool holders, control panel and burner
control knobs
You will need: three tool holders, control panel, two Phillips
screws/washers, a Phillips screwdriver, and three burner
control knobs.
Hook the tool holders over the frame rail. Figure 22.
Set the control panel in place over both frame braces. (Hold
the Crossover Ignition button up while setting the control
panel in place.) Line up the holes in the control panel with
the holes in the inserts in the frame brace. Insert screws
and tighten with a Phillips screwdriver until snug. Do not
overtighten. Figure 22 (a).
Push on the burner control knobs. Figure 22 (b).
Figure 22
Insert in frame brace
Tool holders
(a)
(b)
Control panel
Phillips screws/
washers
Crossover
Ignition
Button
To Next Page
