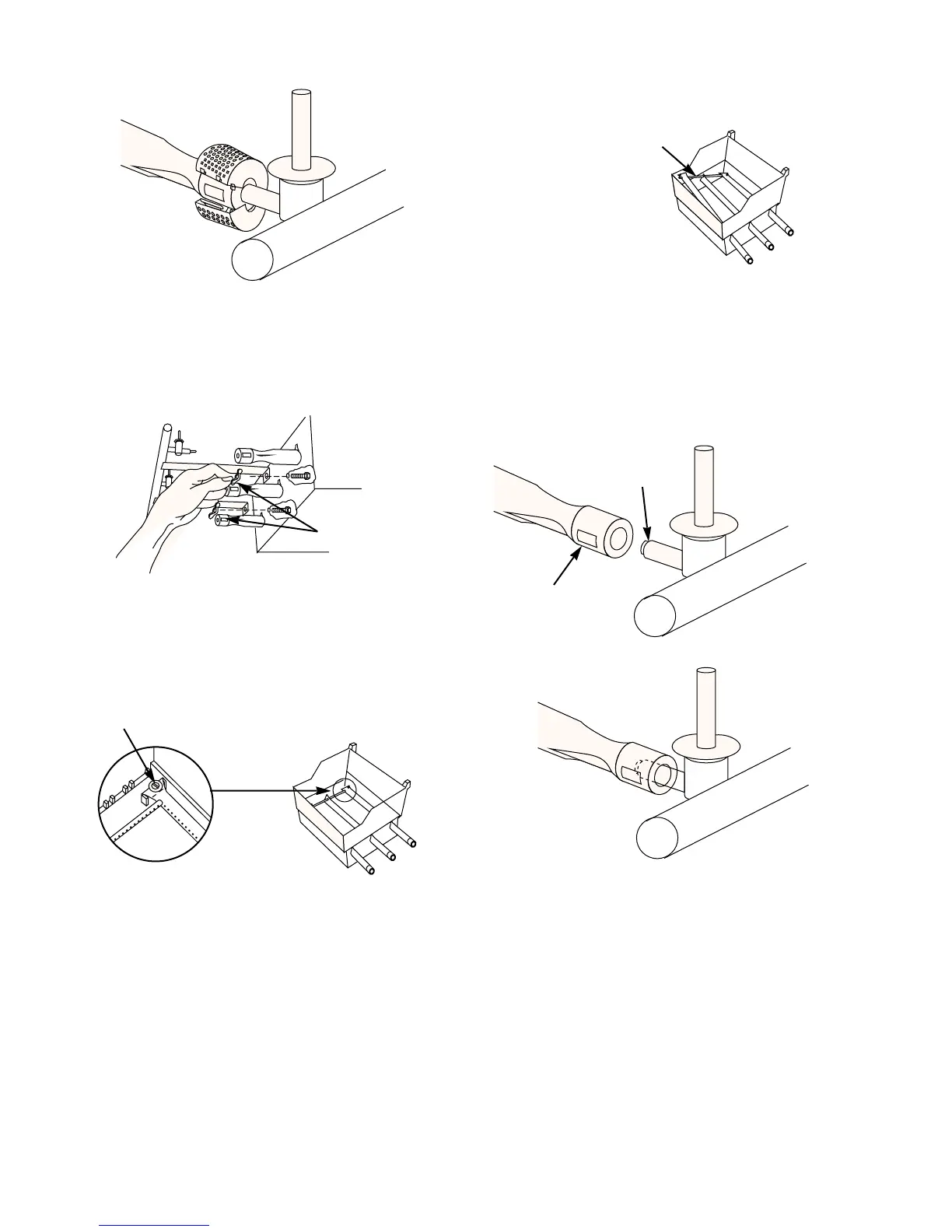

Figure 9
View from behind
cooking box
Wing nuts
Figure 10
Guide screw
Figure 11
d) Unlatch the Spider Stopper Guards and remove.
Figure 9.
e) Remove the manifold bracket and unscrew the two
wing nuts that hold the manifold to the cooking box.
Pull the manifold and valve assembly out of the
burners and carefully set it down. Figure 10.
f) Slide the burner assembly out from under the guide
screw and washer in the corners of the cooking box.
Figure 11.
Crossover tube
Figure 12
g) Lift and twist the burner assembly slightly, to separate
the crossover tube from the burners. Figure 12.
Remove the burners from the cooking box.
h) To reinstall the burners, reverse steps c) through g).
CAUTION: The burner openings must be positioned
properly over the valve orifices. Figure 13a.
Check proper assembly before fastening manifold in
place. Figure 13b.
Figure 13
Valve
Burner
(a)
(b)
