14

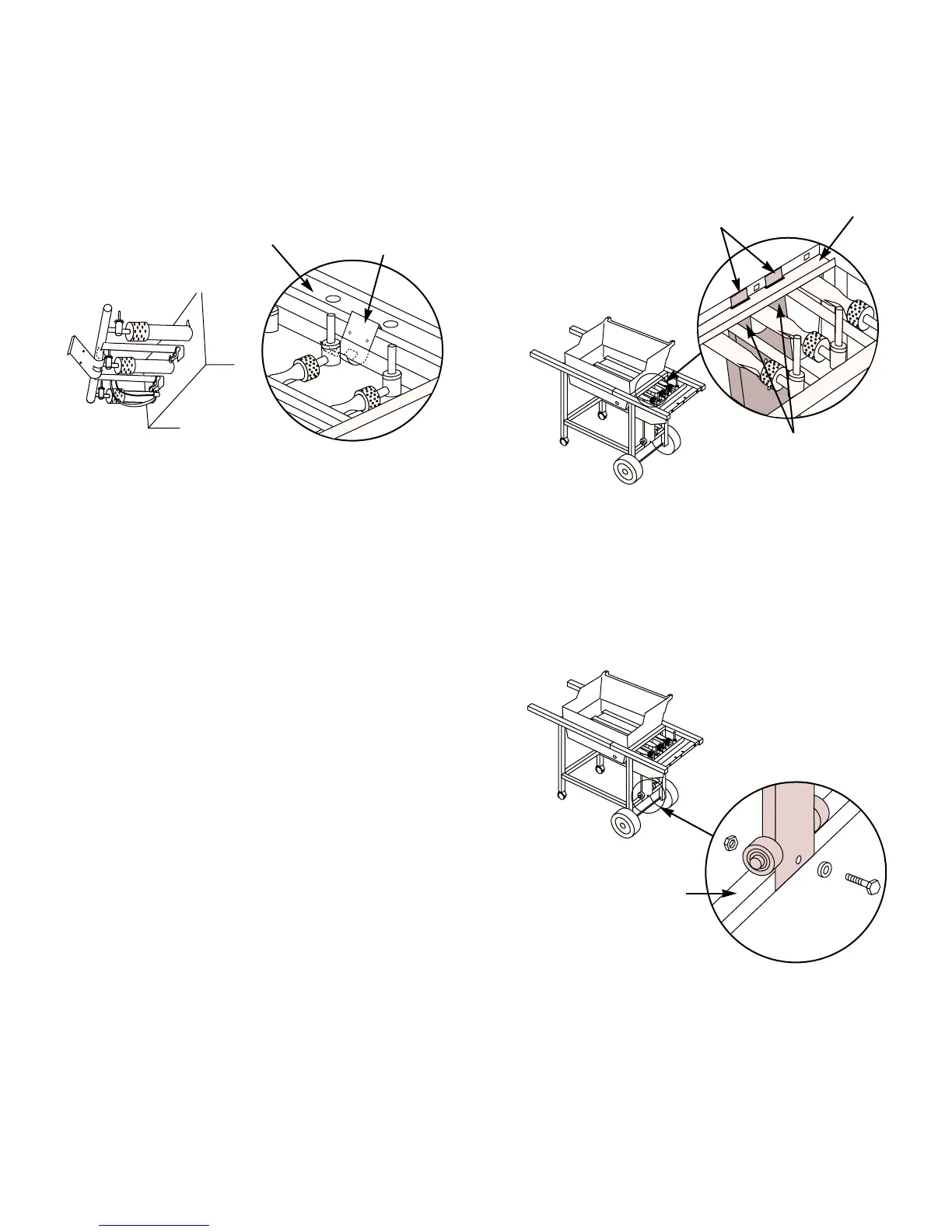

Frame brace
Manifold bracket
Figure 10
Figure 11
Figure 12
Cross brace
Tank panel tabs
Slots in frame brace
Frame brace
Step 9
Install manifold bracket
You will need: manifold bracket
Hook the bracket onto the manifold at the center burner
valve. Place your hand underneath the bracket. Lift the
manifold, bracket and cooking box slightly and hook the
tab of the bracket onto the frame brace. Figure 10.
Step 10
Install tank panel assembly
You will need: tank panel assembly, 1/4-20 x 1 1/4 inch bolt,
1/4-20 hex nut, nylon washer and a 7/16 inch wrench.
Insert the tank panel tabs into the slots in the frame brace.
Figure 11.
Slide tank panel up until notch at bottom of panel fits over
the cross brace. Insert one bolt with washer through the
hole in the bottom of the tank panel and through the wheel
frame. Add hex nut and tighten with the 7/16 inch wrench.
Figure 12.
