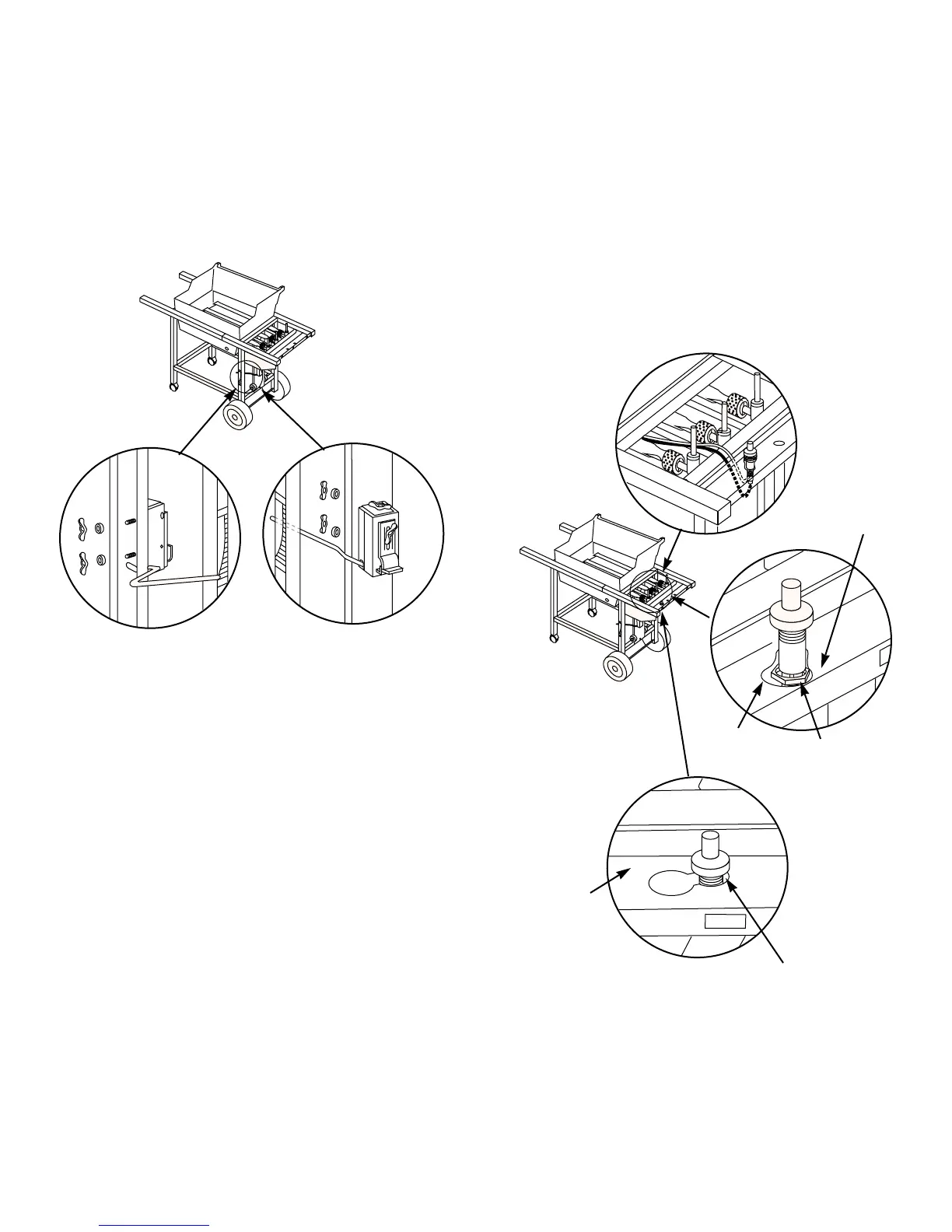

Figure 14
Igniter lock nut
Keyhole in
frame brace
Small part of keyhole
in frame brace
Frame brace
Frame brace
(a)
(b)
(c)
Step 11
Add fuel scale assembly
You will need: fuel scale assembly, two 1/4-20 wing nuts
and two nylon washers.
Slip the bolts on the back of the fuel scale assembly through
the two small holes in the tank panel. Make sure indicator
rod of fuel scale is on the left side of the wheel frame.
Add washers then wing nuts and tighten. Figure 13.
Step 12
Install igniter
Note - The igniter wires are already attached to the Gas
Catcher Ignition Chamber and the igniter. This was done to
factory test the ignition system.
The igniter lock nut is on the igniter.
Insert the top of the igniter up through the large part of
the keyhole in the frame brace. Figure 14 (b). Loosen the
igniter lock nut and slide the igniter into the small part of
the keyhole. Figure 14 (c). Tighten the igniter lock nut.
Figure 14.
Note - If the igniter works loose, carefully tighten the igniter
lock nut with an adjustable wrench or pliers.
